Civic Sedan L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

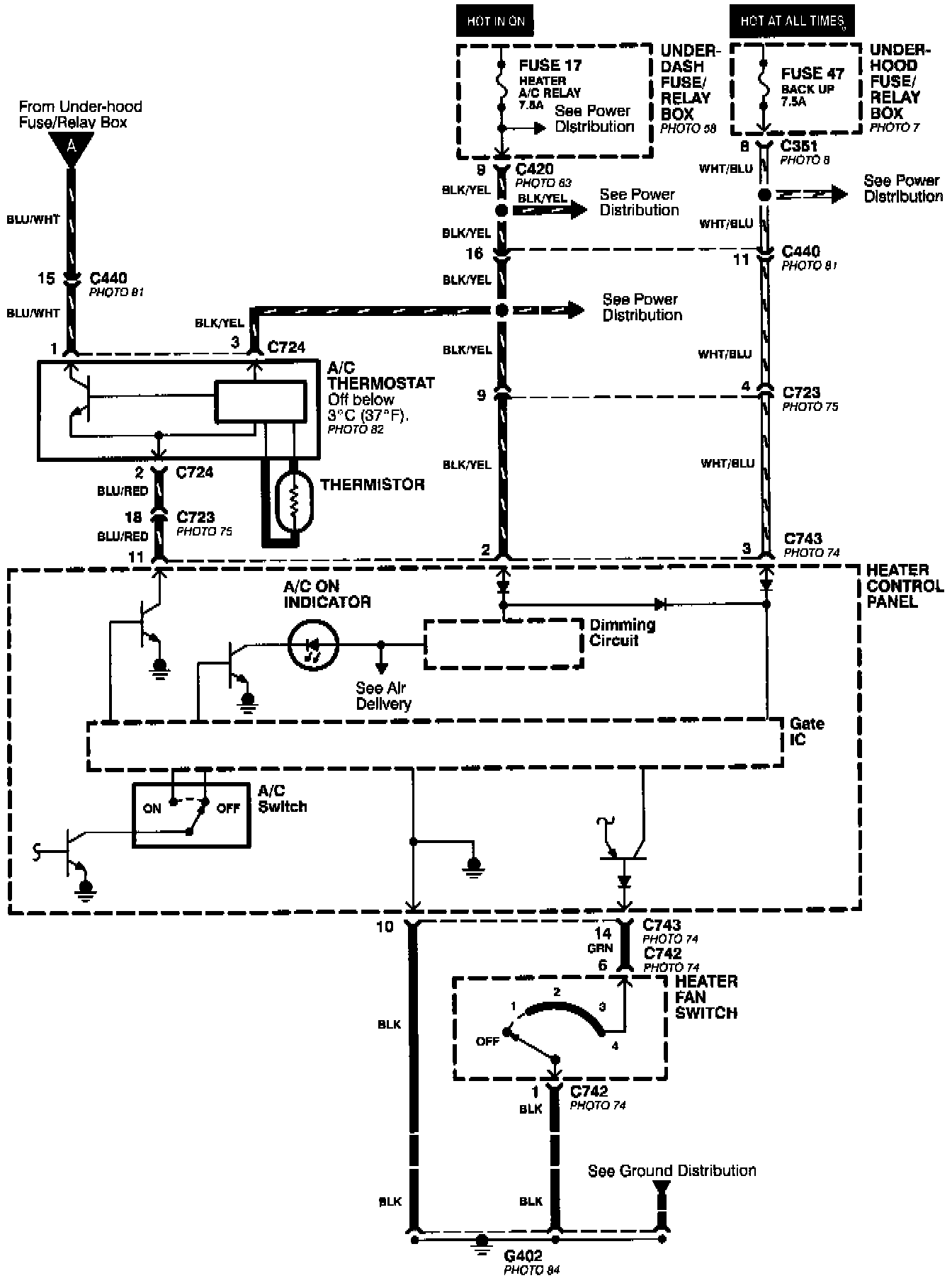

Fans (Part 1 of 2):
Fans (Part 2 of 2):
