Home >> Honda >> 1996 >> Civic Sedan L4-1.6L SOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> With Keyless Entry

With Keyless Entry

Part 1 of 2:

Part 2 of 2:

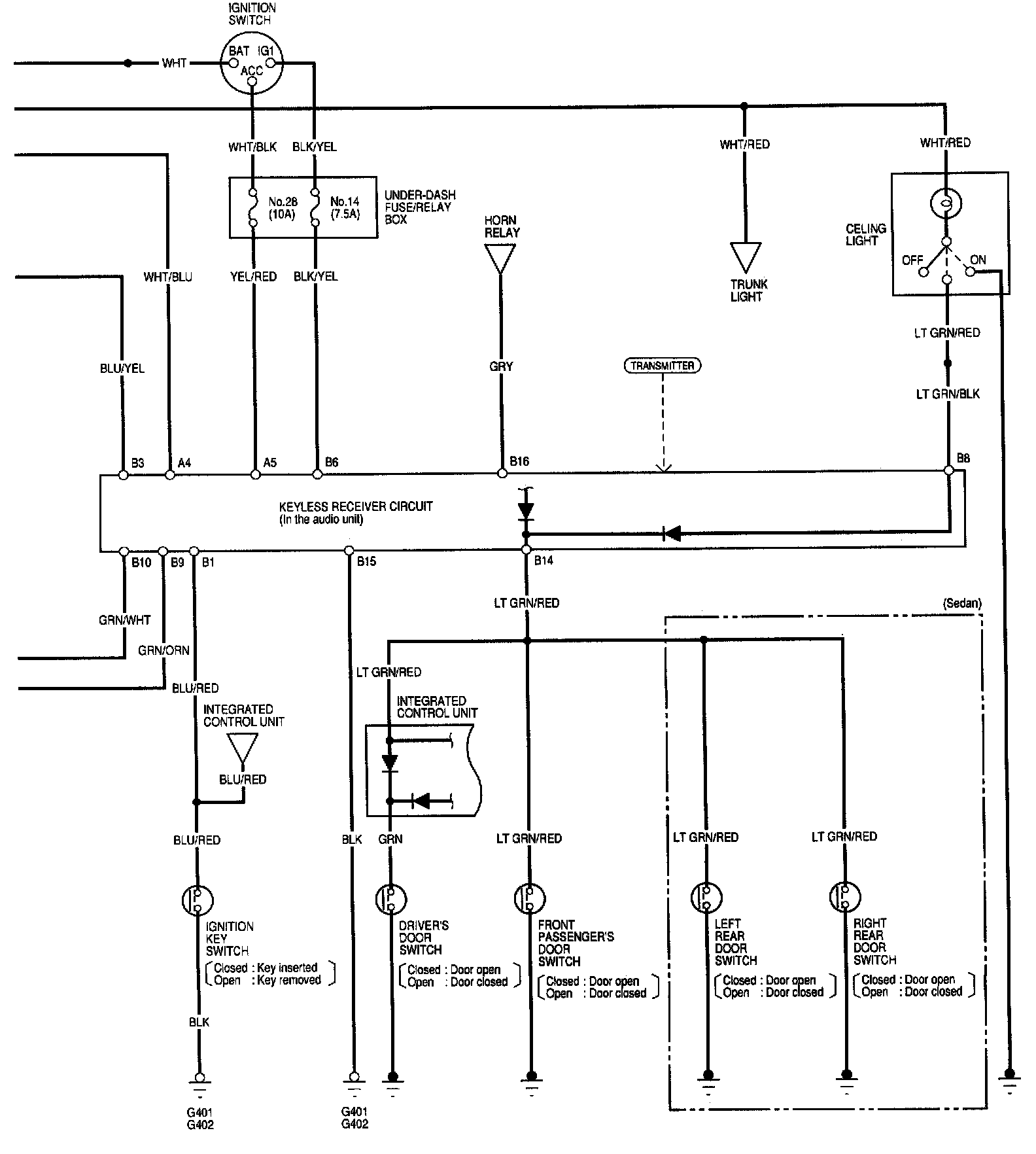

Power Door Locks (With Keyless Entry System) - Part 1 Of 2:

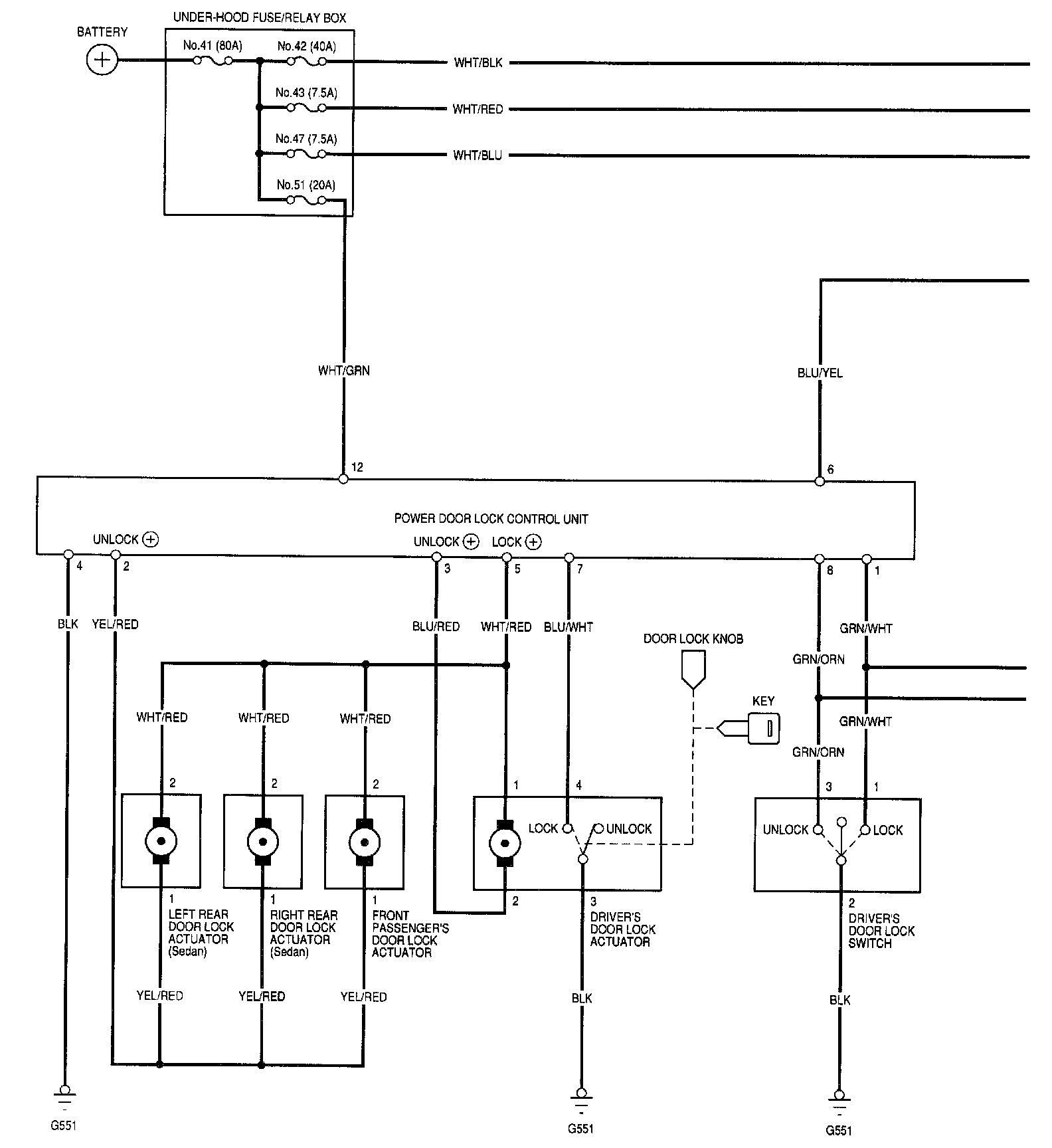

Power Door Locks (With Keyless Entry System) - Part 2 Of 2:
