Pinout Values and Diagnostic Parameters

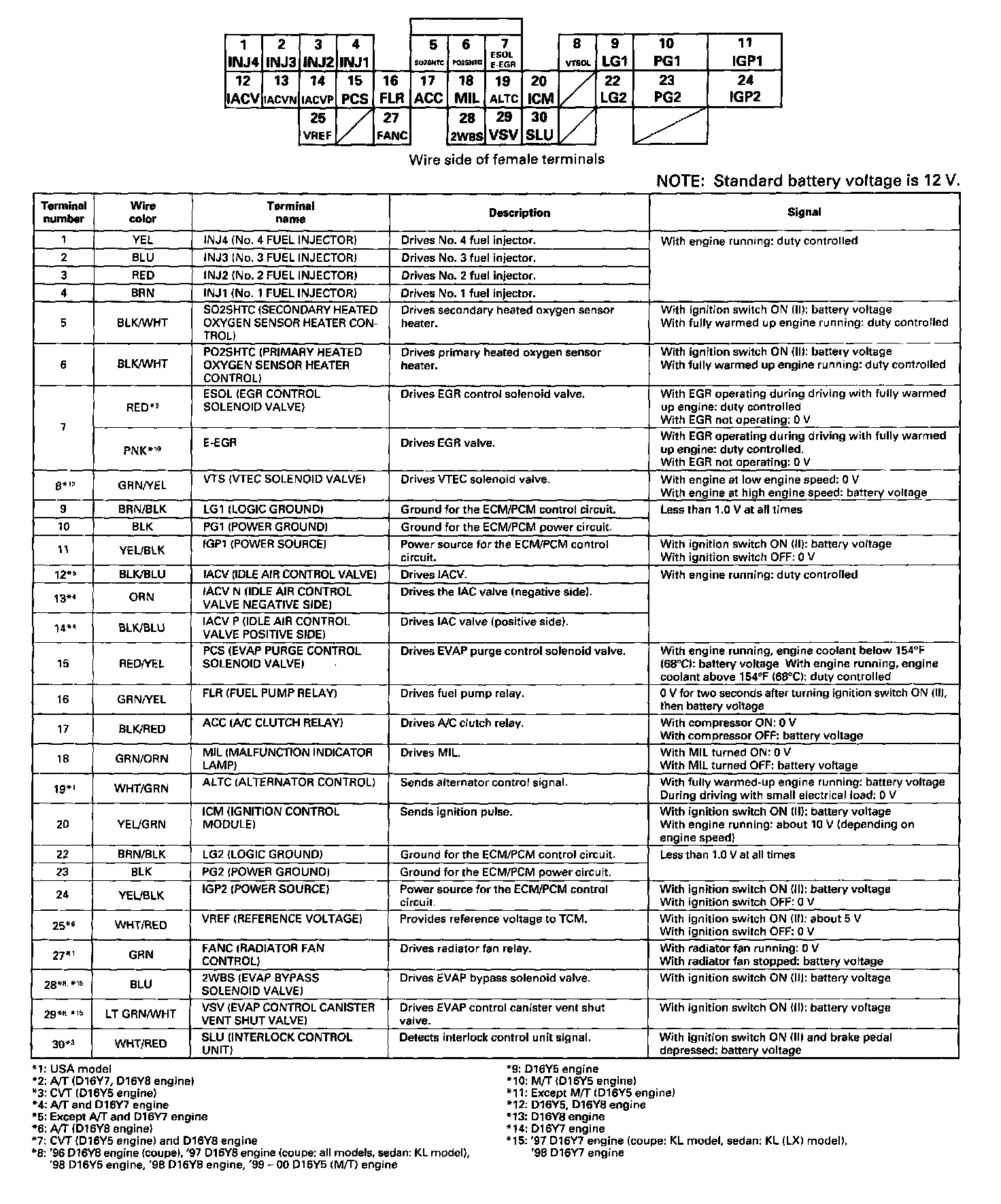

ECM/PCM CONNECTOR A (32P):
ECM/PCM CONNECTOR B (25P):
ECM/PCM CONNECTOR C (31P):
ECM/PCM CONNECTOR D (16P):
