Rear Doors - Hard To Open

00-013

February 1, 2000

Applies To:
1996-00 Civic - All 4-door models

Rear Doors Are Hard to Open

SYMPTOM
One or both rear doors are difficult to open. The door handle needs to be lifted abnormally high to release the latch.

PROBABLE CAUSE
The rear outer handle rods are misadjusted.

CORRECTIVE ACTION
Adjust the appropriate rear outer handle rod.

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Operation Number: 818306
Flat Rate Time: 0.4 hour - one door
Failed Part: P/N 75411-634-000
H/C 0564898
Detect Code: 074
Contention Code: B99
Template ID: 00-013A
Skill Level: Repair Technician

REPAIR PROCEDURE

1. Remove the rear door panel and pull the plastic cover down to access the door handle.





2. Remove the three latch mounting screws.

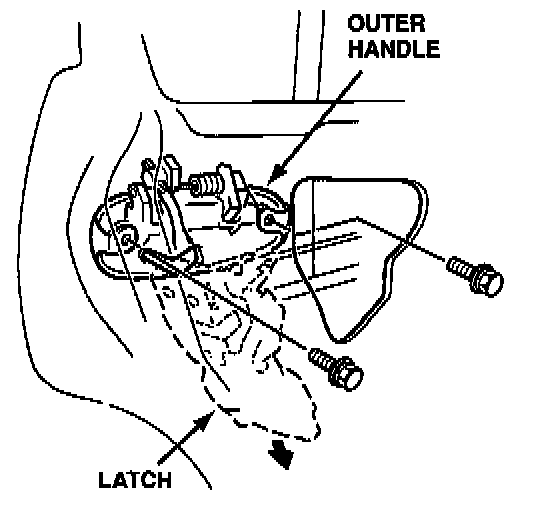

3. Pull the latch assembly down, and remove the door handle mounting bolts.

4. Pull the outer handle away from the door. Do not disconnect the outer handle rod. Place a shop towel in the door handle opening to protect the door from getting scratched.





5. Turn the outer handle assembly counterclockwise to adjust the outer handle rod. The end of the rod should be flush with the joint or no more than 1 mm beyond it.

6. Reinstall the outer door handle. Torque the door handle mounting bolts to 9.8 Nm (7.2 lb-ft).

7. Reinstall the door latch assembly. Torque the latch mounting screws to 6.0 Nm (4.0 lb-ft).

8. Reinstall the plastic cover and the door panel.

9. Open and close the door several times to make sure it opens normally.
