Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash

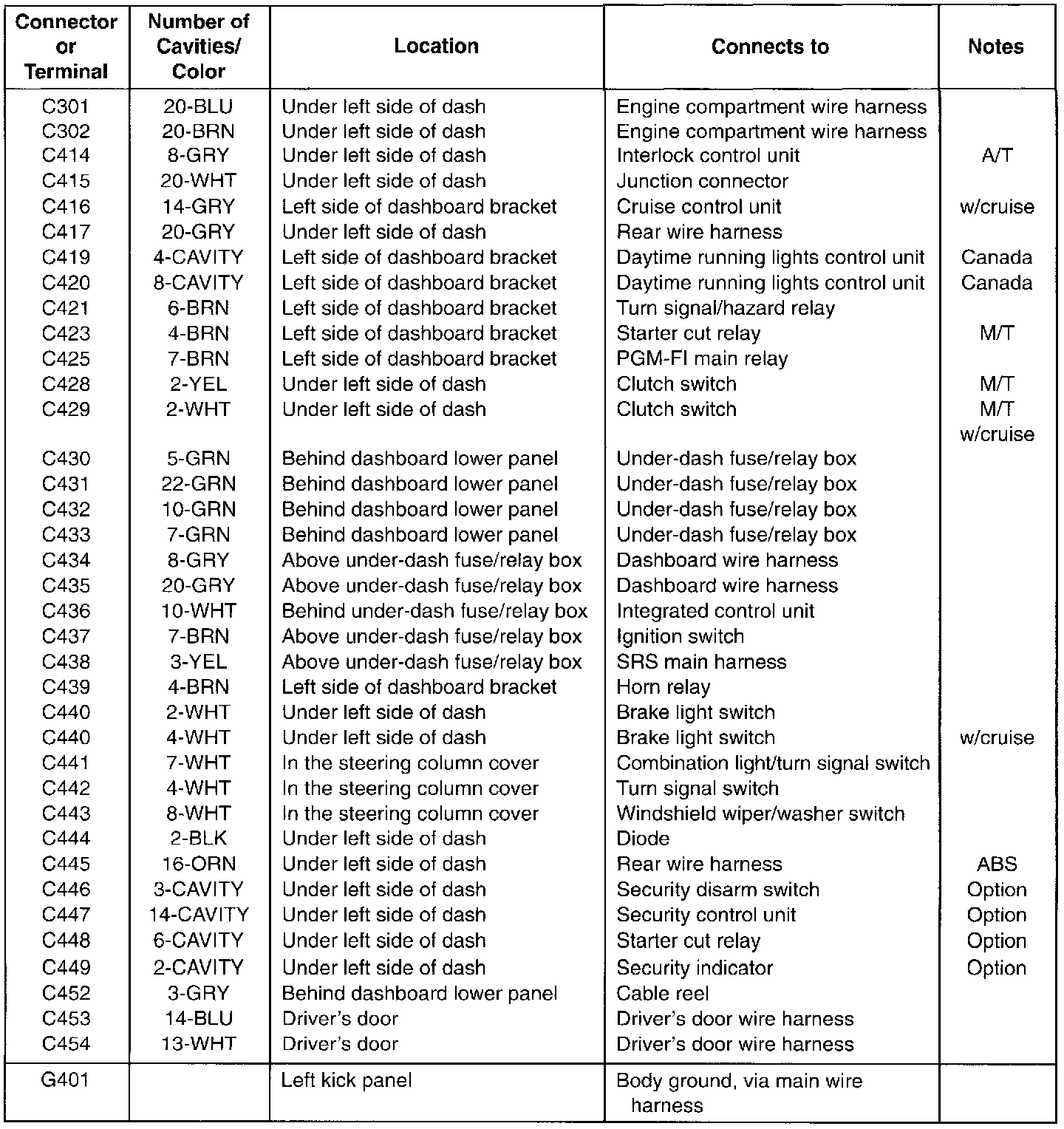

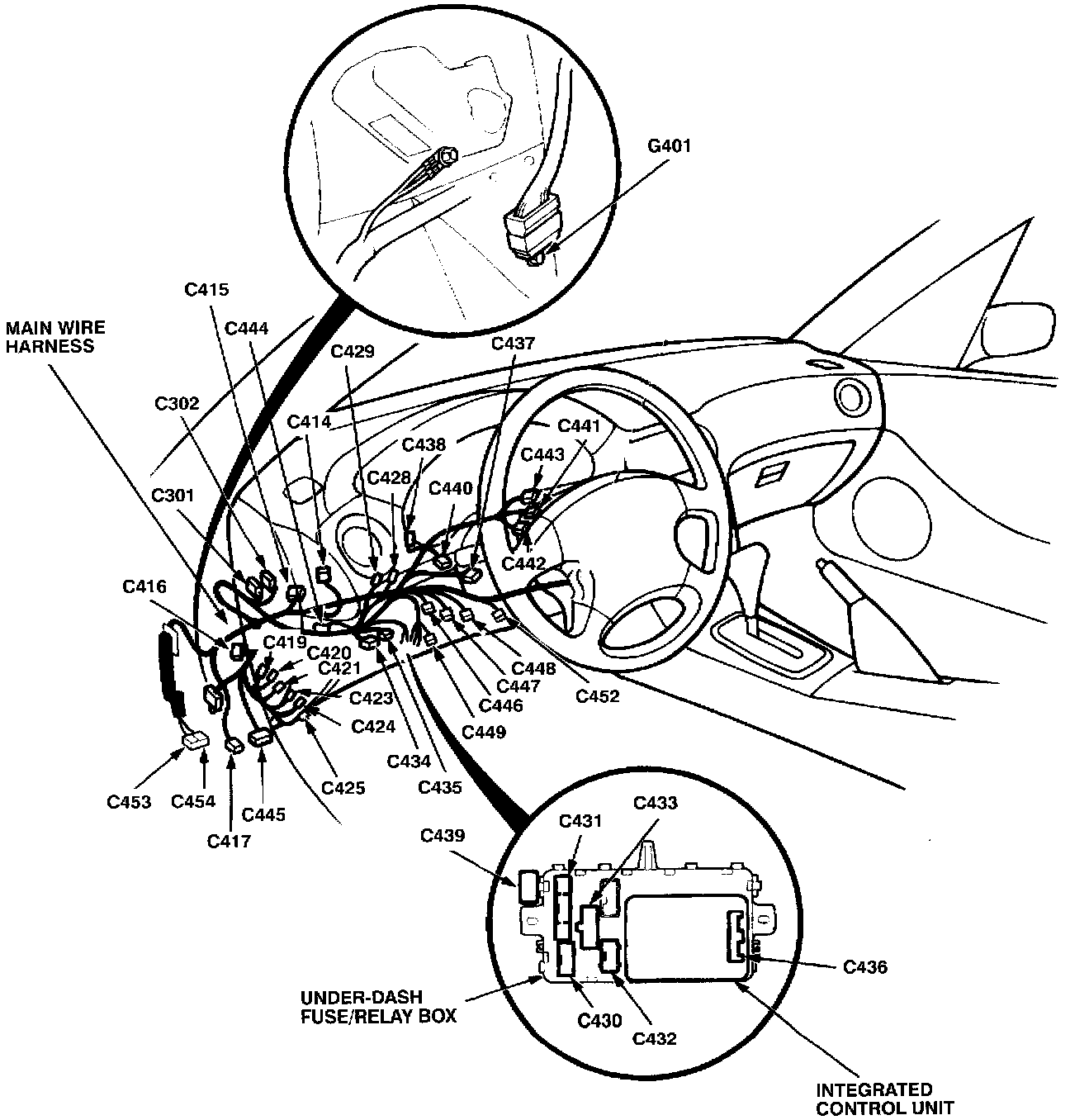

Main Wire Harness, Left Side Of Dash:
Main Wire Harness, Left Side Of Dash:
