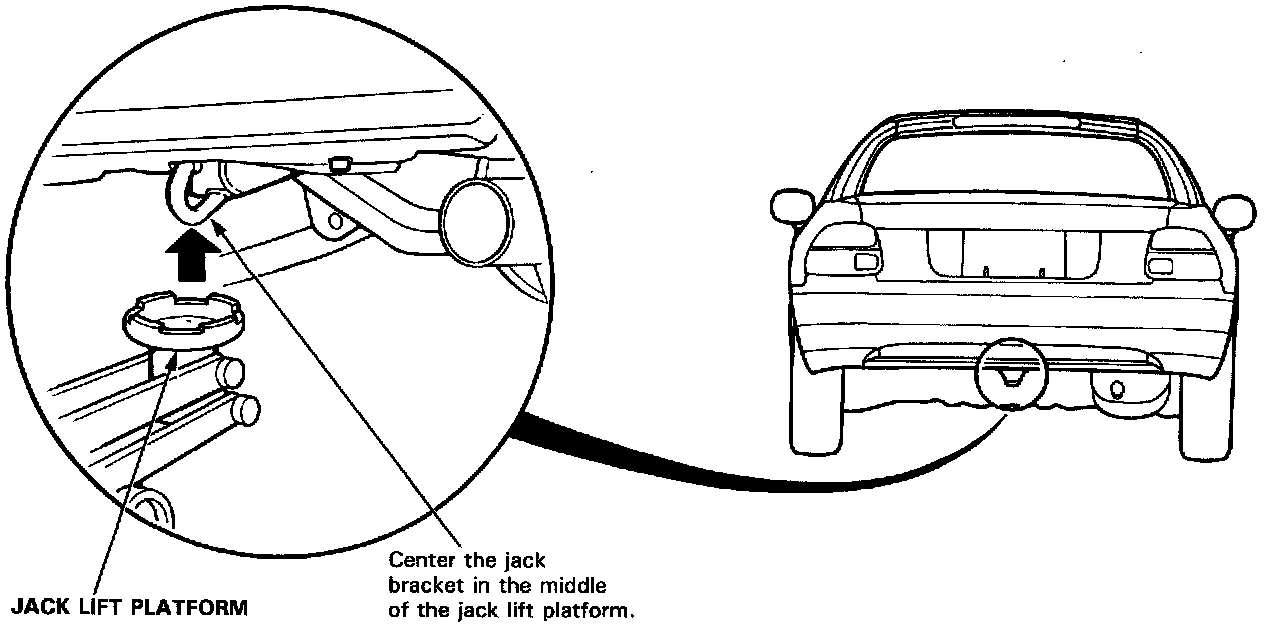

Floor Jack Lift Points








- Set the parking brake and block the wheels that are not being lifted.
- When lifting the rear of the car, put the gearshift lever in reverse (Automatic transmission in "P" position).
- Raise the car high enough to insert the safety stands.
- Adjust and place the safety stands so the car will be approximately level, then lower the car onto them.

WARNING:
- Always use safety stands when working on or under any vehicle that is supported by only a jack.
- Never attempt to use a bumper jack for lifting or supporting the car.
