Camshaft Bearing

TIGHTENING SPECIFICATIONS

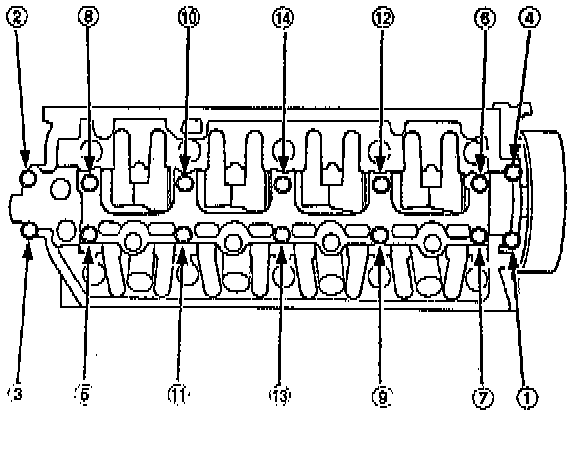

Holder Loosening Sequence





Holder Tightening Sequence
Tighten The 8 mm Bolts To 20 Nm (14 ft. lbs.)
Tighten The 6 mm Bolts To 12 Nm (9 ft. lbs.) [1]
