Torque Specifications

Torque Sequence:

Tighten the cylinder head bolts sequentially in four steps:

1st step: Tighten bolts 1-10 20 Nm (14 ft. lbs.)
2nd step: Tighten bolts 1-10 50 Nm (36 ft. lbs.)
3rd step: Tighten bolts 1-10 68 Nm (49 ft. lbs.)
4th step: Tighten bolts 1 and 2 68 Nm (49 ft. lbs.)

Intake:

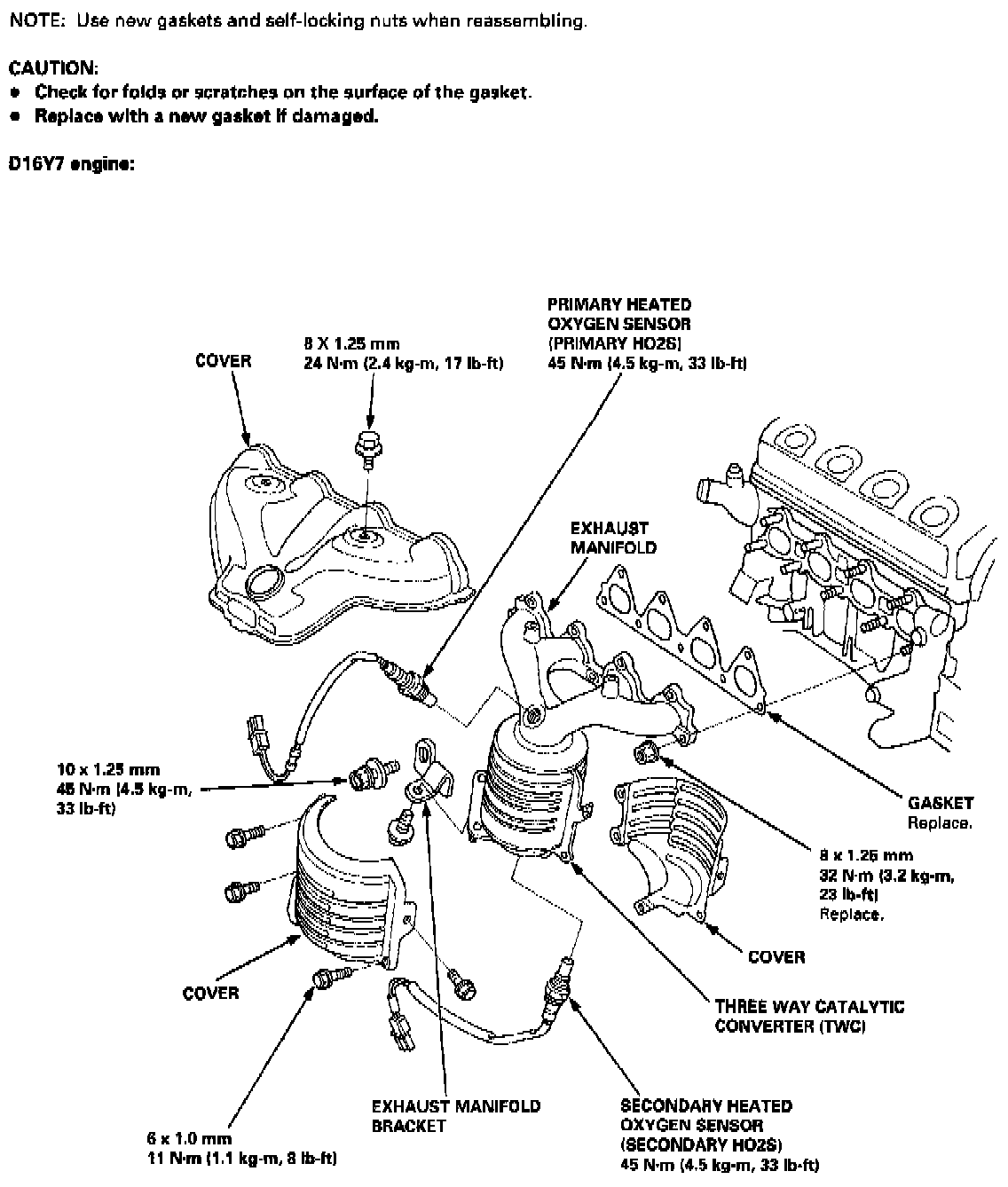

Exhaust Manifold:

Timing Components:

Lower Engine:
