License Plate Lamp: Service and Repair

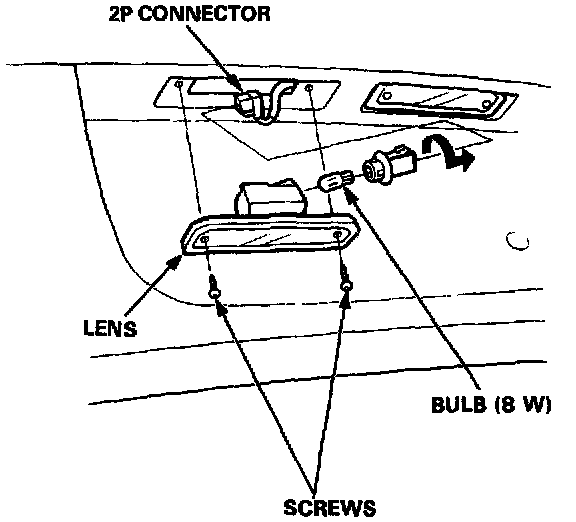

License Plate Lights Replacement:




1. Remove the two screws from the license plate light.
2. Pull the light out of the trunk lid, and disconnect its 2P connector from the light.
3. Turn the bulb socket 45° counterclockwise to remove it from the housing, then replace the bulb.
