Windshield Washer Motor: Service and Repair

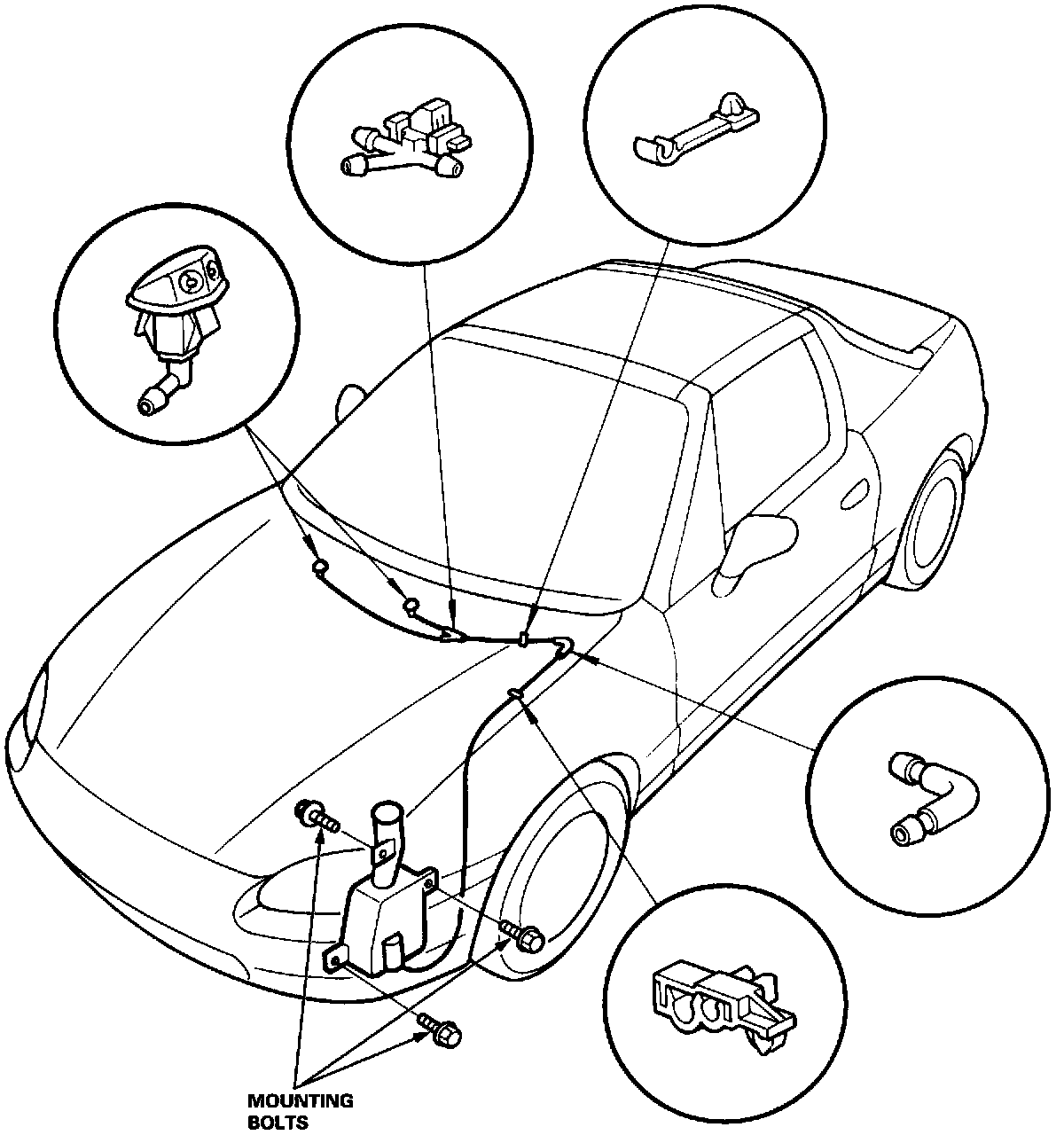

Washer System Replacement:

1. Remove the front bumper.
2. Disconnect the 2P connector and the hose from the washer motor.
3. Remove the three mounting bolts, then pull out the washer reservoir from below.
4. Remove the washer nozzles and the washer hoses.
5. When installing the washer system:
- take care not to pinch the hoses.
- install the hose clips firmly.
6. After installing, adjust the washer nozzles.
