Windshield Washer Motor: Testing and Inspection

1. Remove the front bumper.

Washer Motor Test:

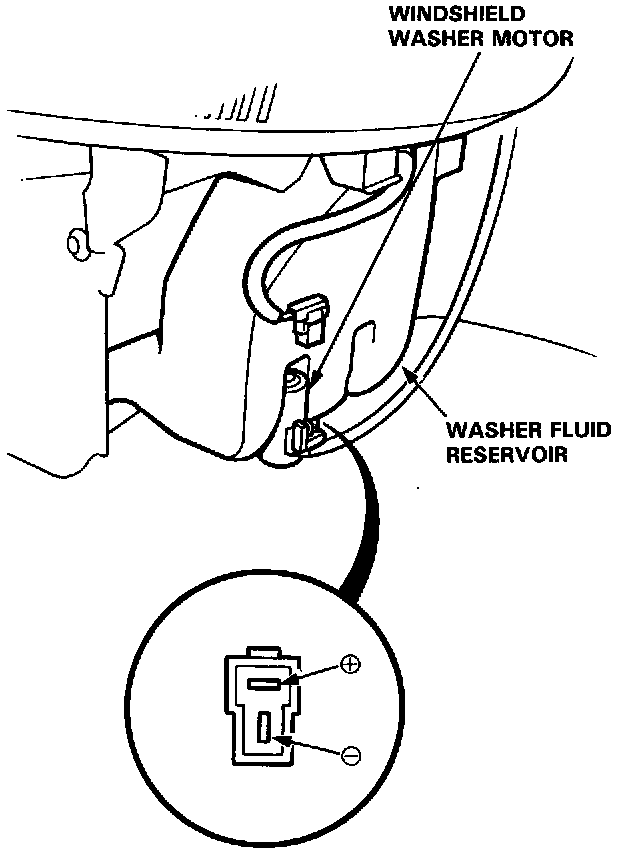

2. Disconnect the 2P connector from the washer motor.
3. Connect battery power to the (+) terminal and ground to the (-) terminal.
^ If the motor fails to run or does not run smoothly, replace it.
^ If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged pump outlet in the motor.
