Control Unit Input Test

Control Unit Input Test:

Control Unit Input Test:

Control Unit Input Test:

1. Slide the driver's seat forward.

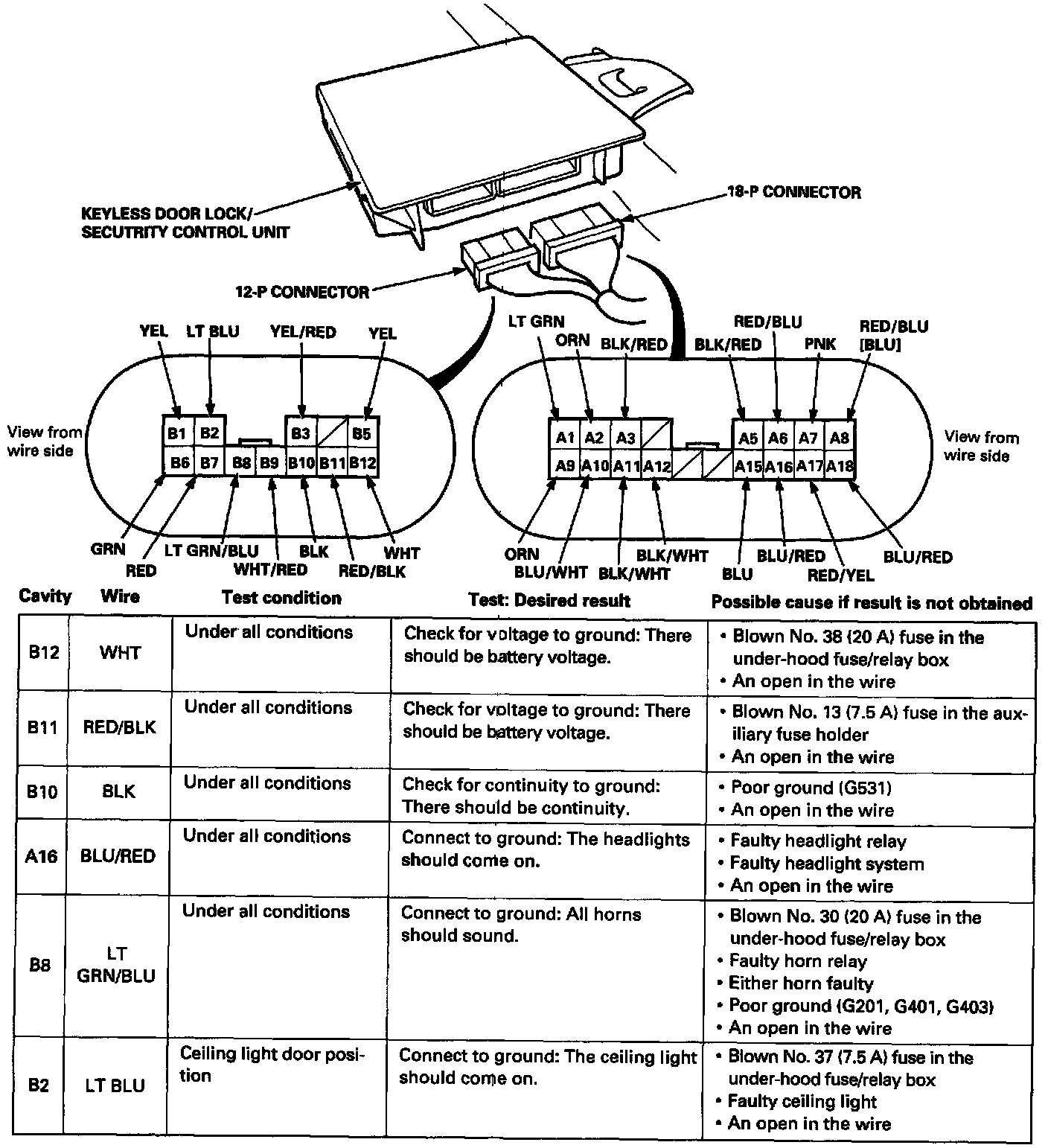

2. Disconnect the 18-P and 12-P connectors from the control unit.
3. Inspect the connector and socket terminals to be sure they are all making good contact.
^ If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

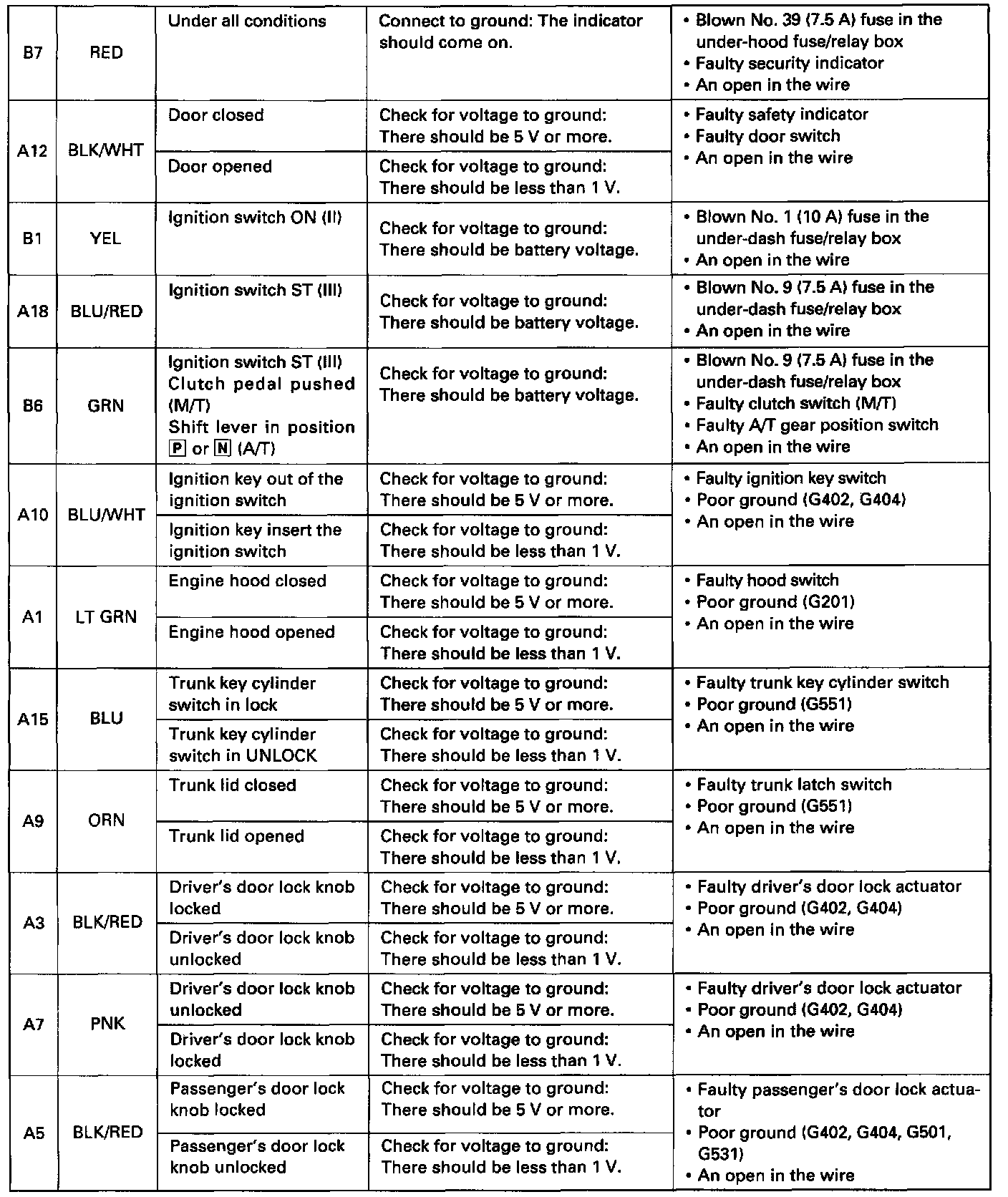

^ If the terminals look OK, make the following input tests at the connector.
- If a test indicates problem, find and correct the cause, then recheck the system.
- If all the input tests OK, the control unit must be faulty, replace it.
