Testing

Power Mirror Test:

1. Remove the cover panel, then disconnect the 8-P connector from the power mirror actuator.

Power Mirror Test:

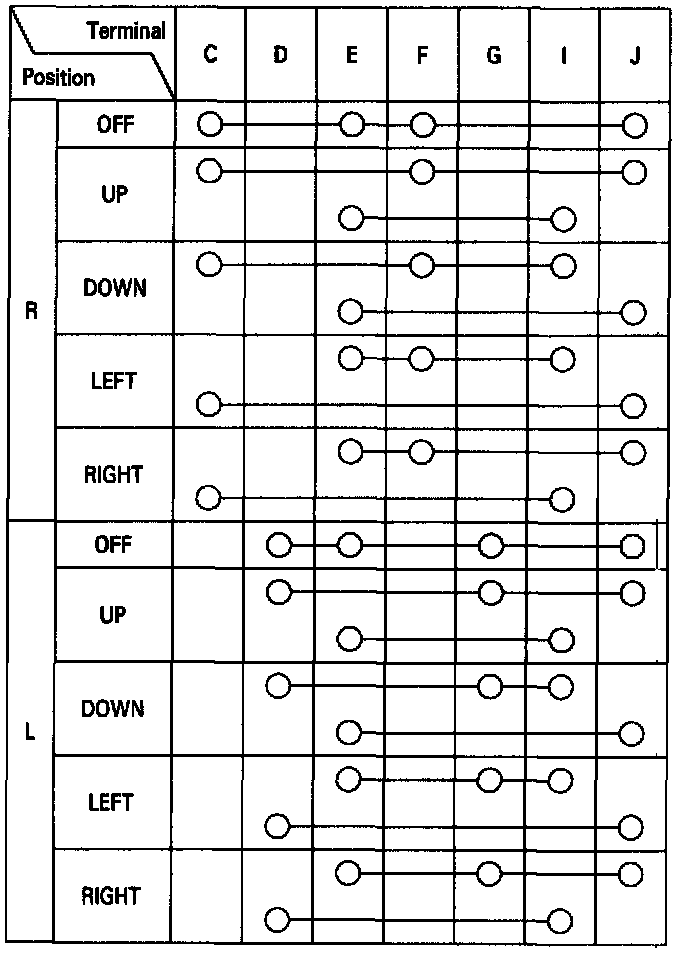

2. Check actuator operation by connecting power and ground according to the table.
3. If the mirror fails to operate properly, replace the mirror actuator.
