Accord EX Coupe L4-2156cc 2.2L SOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Under-Hood Fuse/Relay Box

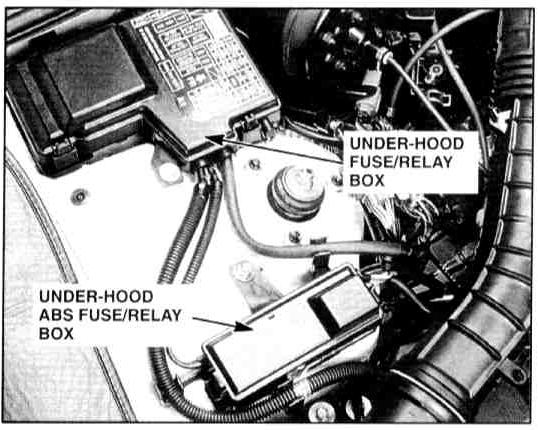

Under-Hood Fuse/Relay Box

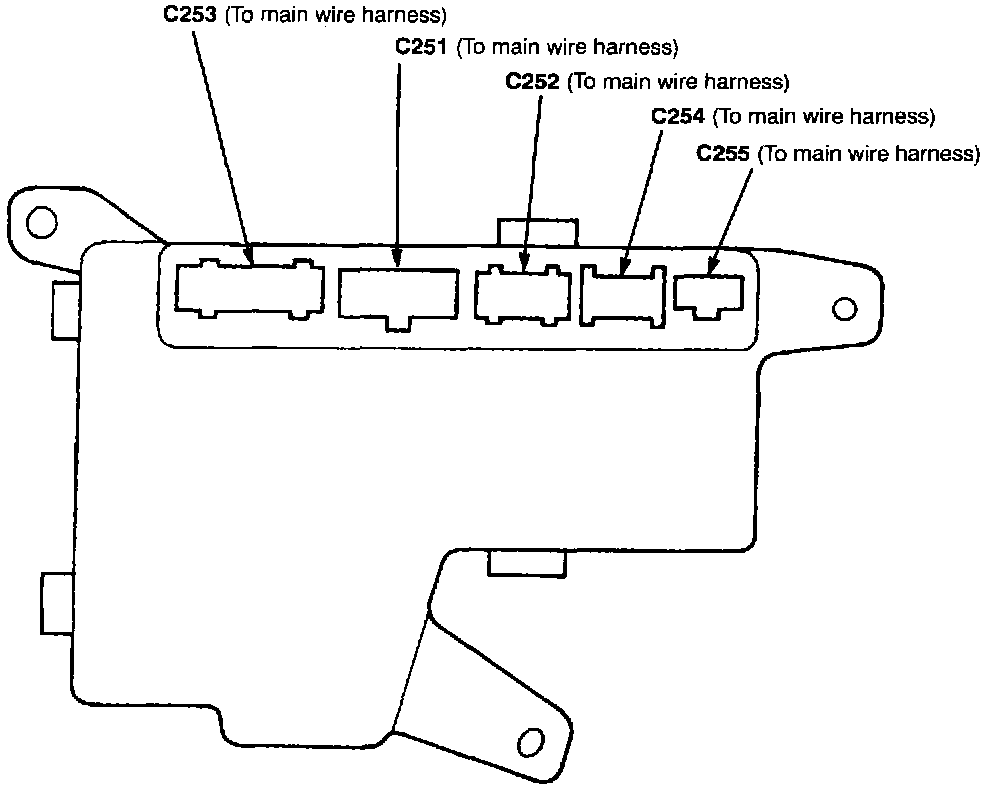

Under-hood Fuse/Relay Box (Part 1 Of 2):
Under-hood Fuse/Relay Box (Part 1 Of 2):

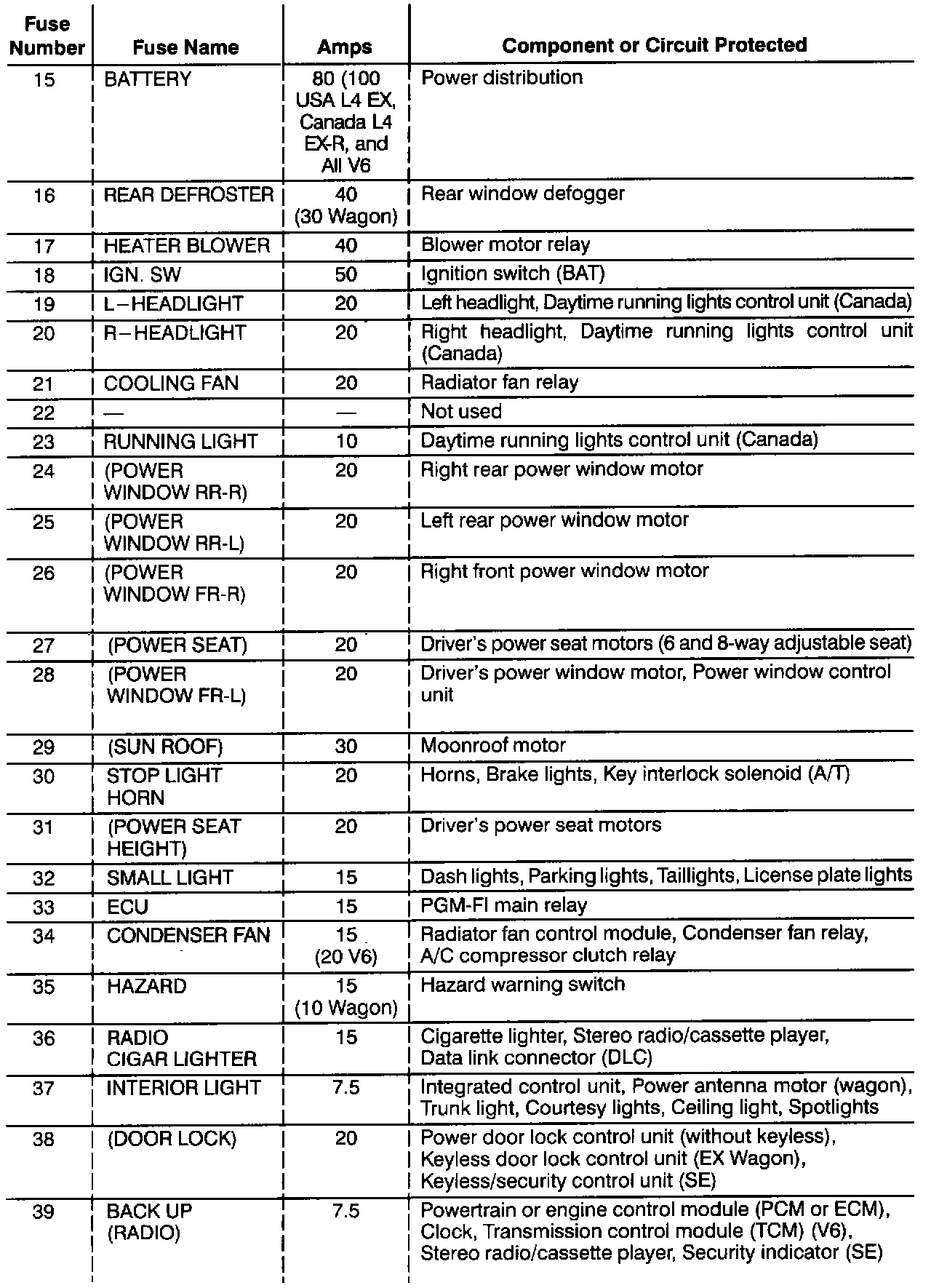

Under-hood Fuse/Relay Box (Part 2 Of 2):
