Tail Lamp
Tail Lamp

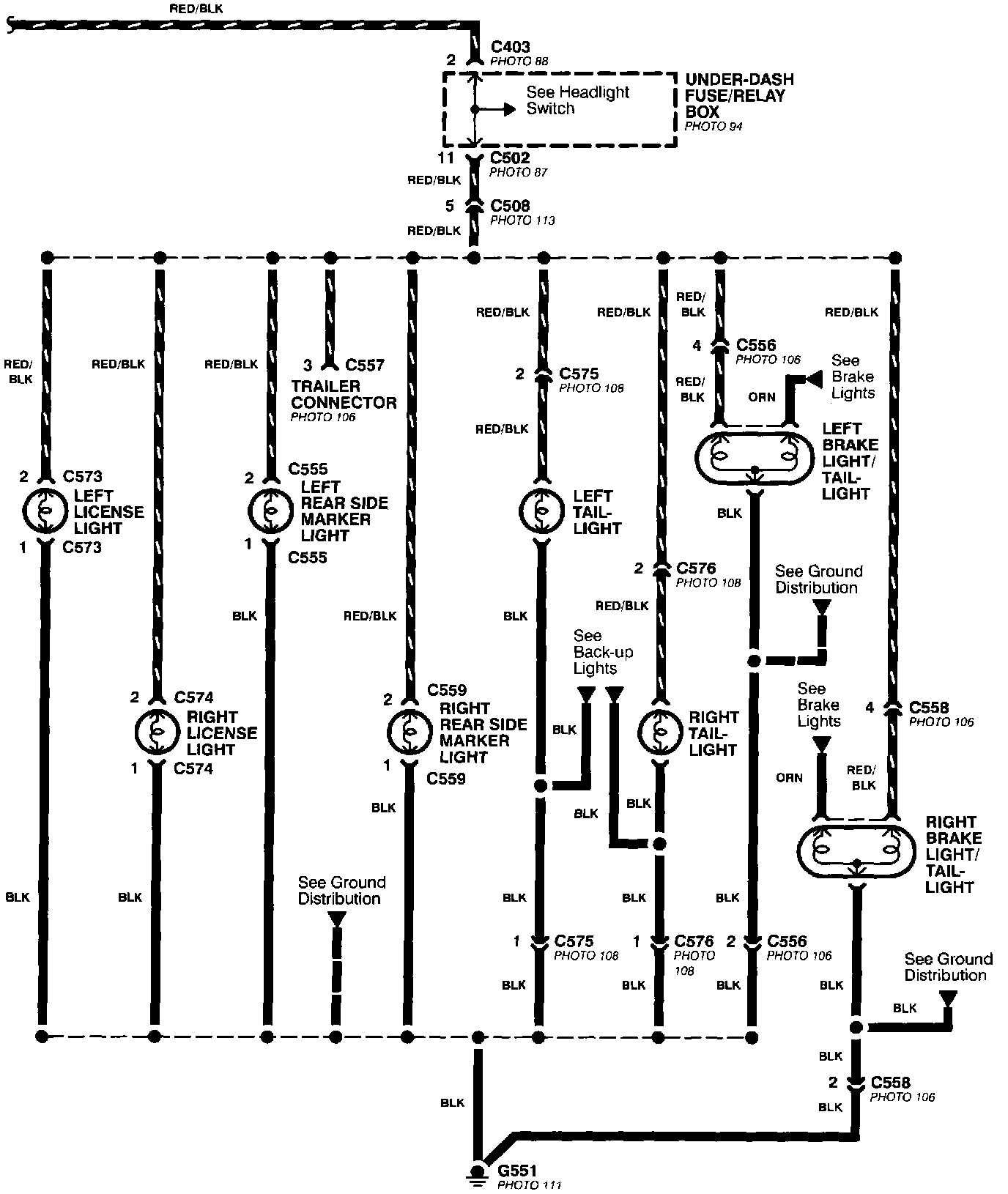

License, Parking, Side Marker Lights And Taillights (Part 1 Of 2):
License, Parking, Side Marker Lights And Taillights (Part 2 Of 2):
