Main Wire Harness (Right Side of Dash and Floor Branches)

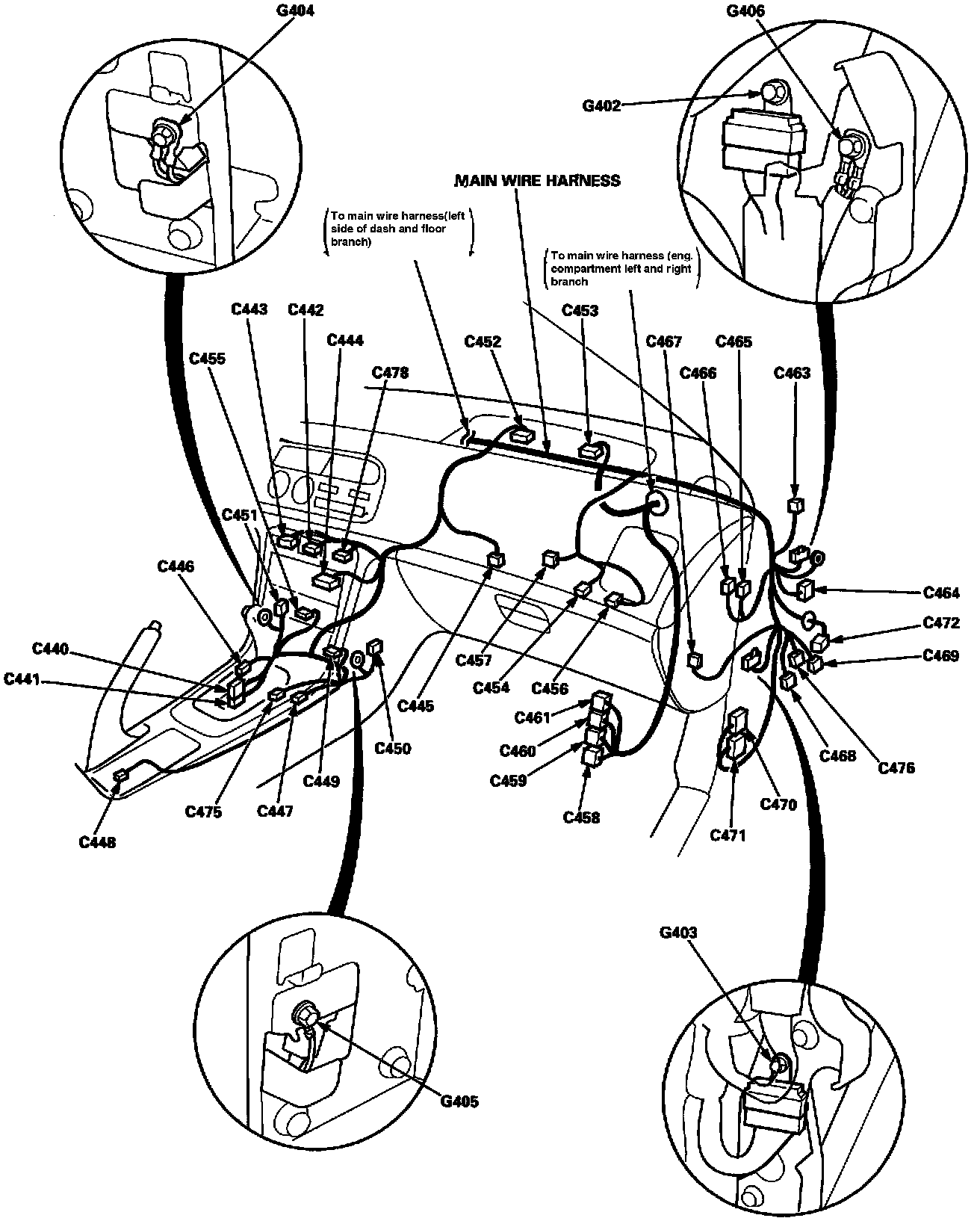

Main Wire Harness (Right Side Of Dash And Floor Branch):

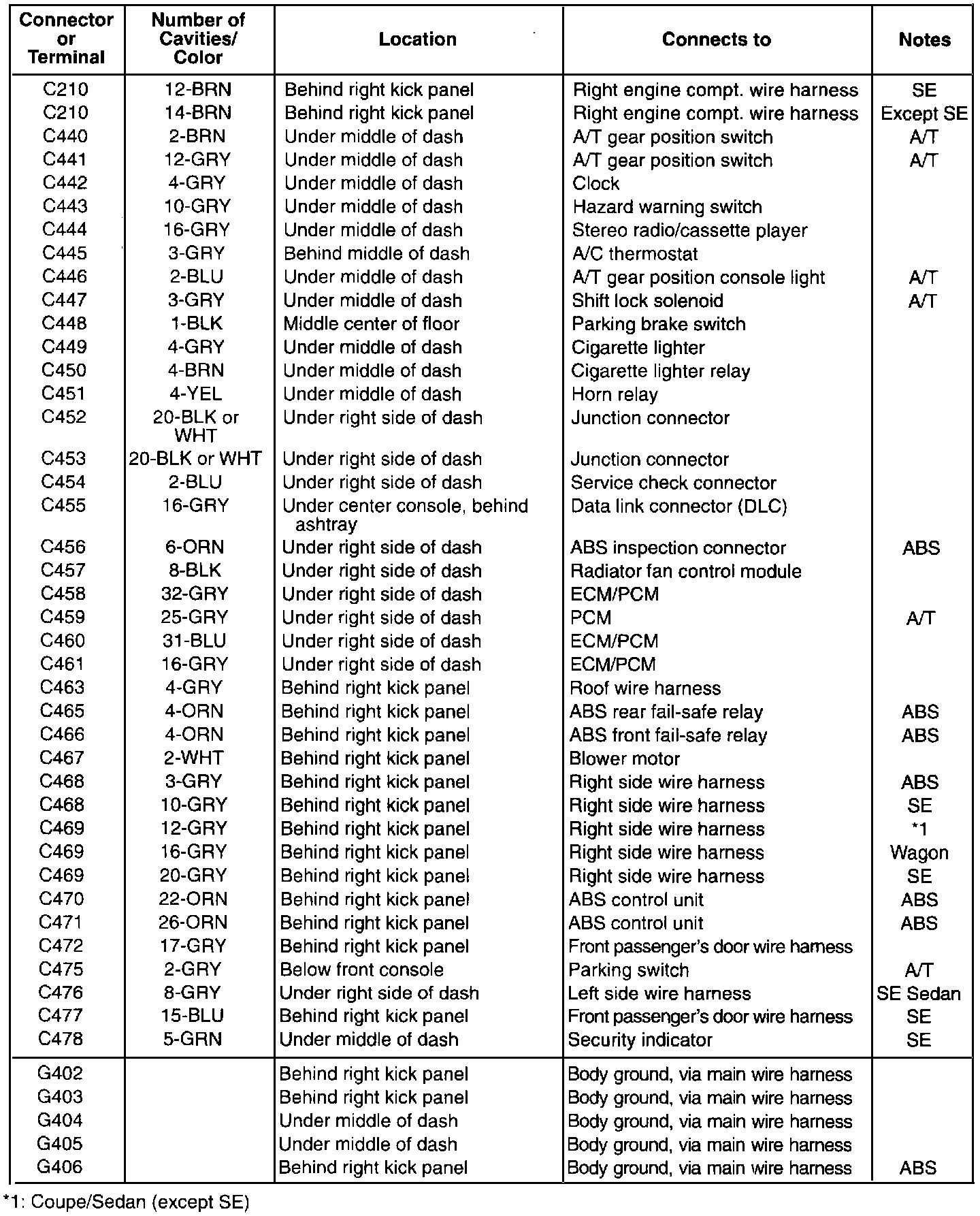

Main Wire Harness (Right Side Of Dash And Floor Branch):

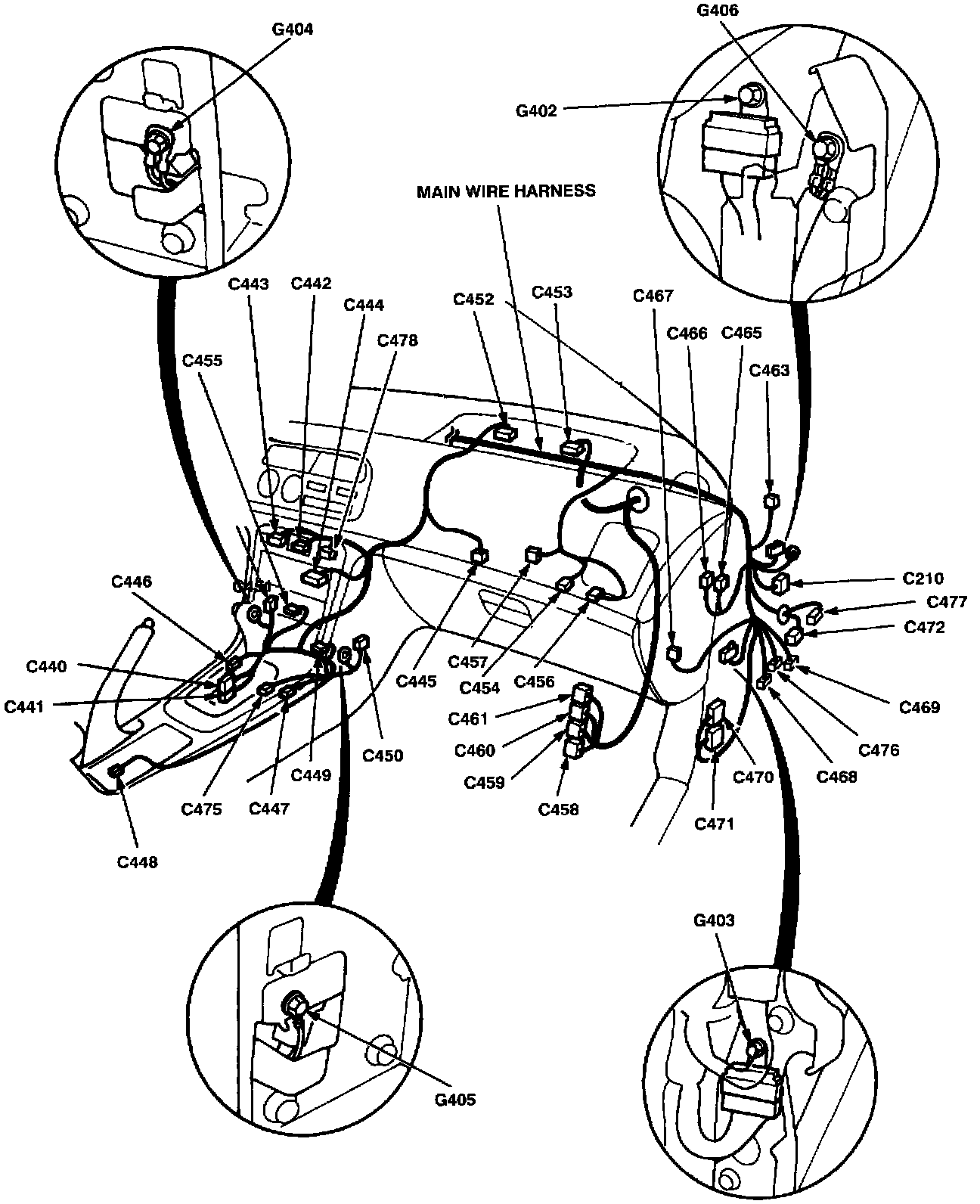

Main Wire Harness (Left Side Of Dash And Floor Branches):



Main Wire Harness (Left Side Of Dash And Floor Branches):
