Radiator Fan Control

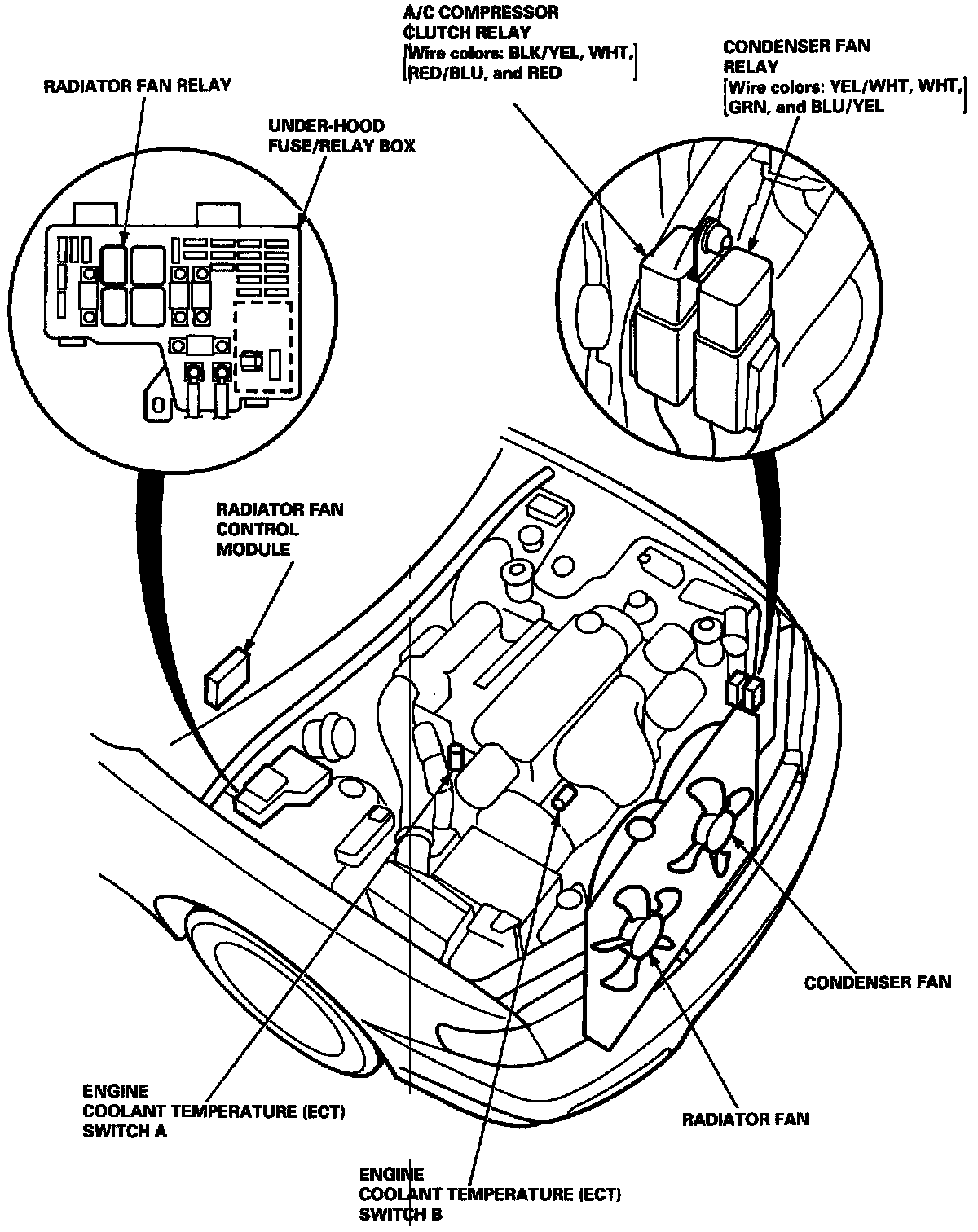

Fan Controls - Component Location Index:

Radiator Fan Control:
When the Engine Coolant Temperature is above approximately 223 °F (106 °C)after the engine has stopped, the radiator fan will run for about 15 minutes. Engine Coolant Temperature (ECT) Switch A is in the thermostat housing. ECT Switch B is located behind the water outlet housing. The radiator fan control module is located behind the glove box.
