Reference Chart

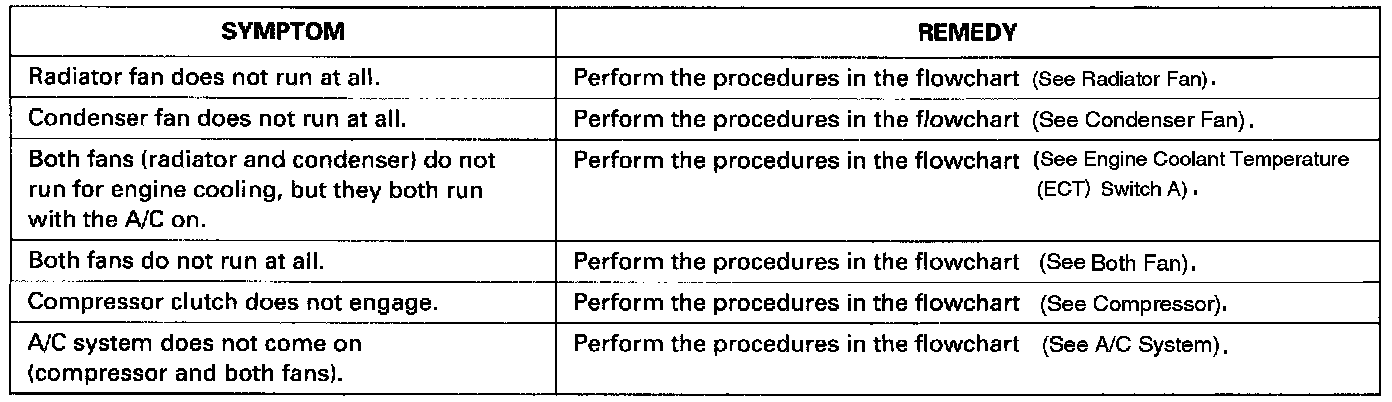

Reference Chart:

- Any abnormality must be corrected before continuing the test.
- Because of the precise measurements needed, use a multimeter when testing.
Before performing any troubleshooting procedures check:
- Fuses *1 No. 34 (15 A), *1 No. 21 (20 A), *2 No. 8 (7.5 A), *2 No. 4 (7.5 A)
- Grounds No. G401, G402, G403, G404, G301, G201, G101
- Cleanliness and tightness of all connectors

*1: In the under-hood fuse/relay box
*2: In the under-dash fuse/relay box
