Home >> Honda >> 1997 >> Accord EX Coupe L4-2156cc 2.2L SOHC (VTEC) MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Circuit Diagram

Circuit Diagram

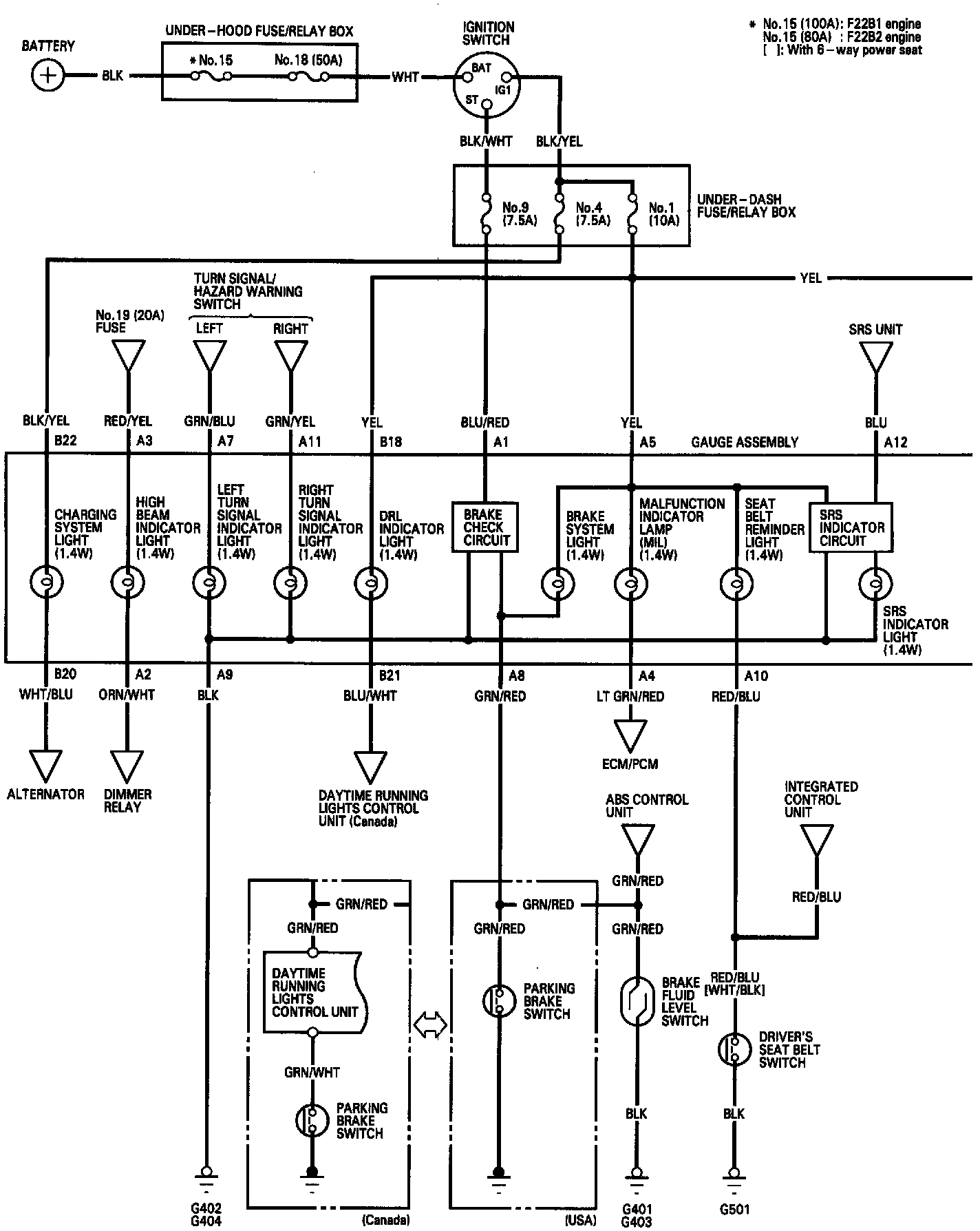

Gauge Assembly - Circuit Diagram:

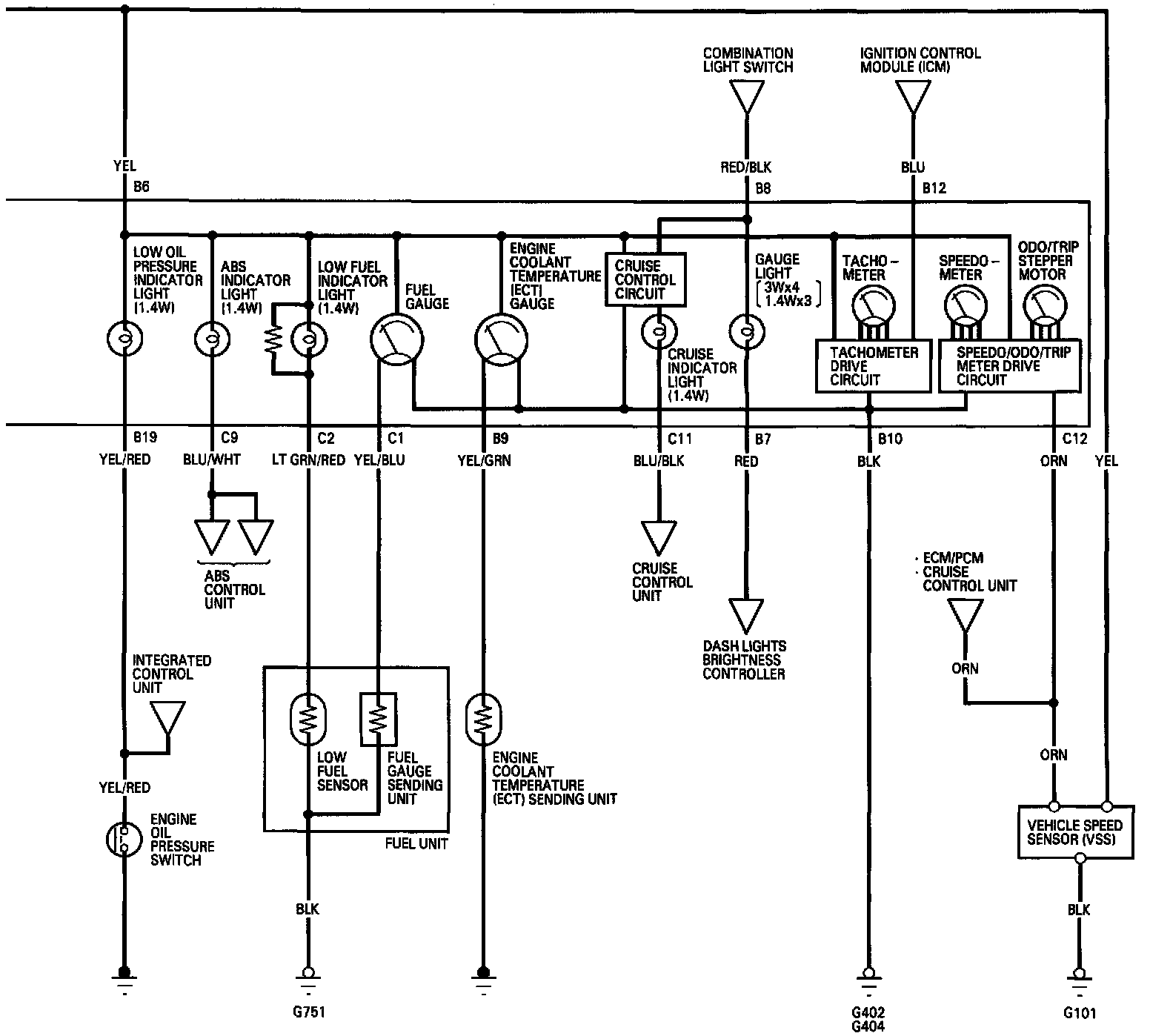

Gauge Assembly - Circuit Diagram:
