Courtesy Lamp: Service and Repair

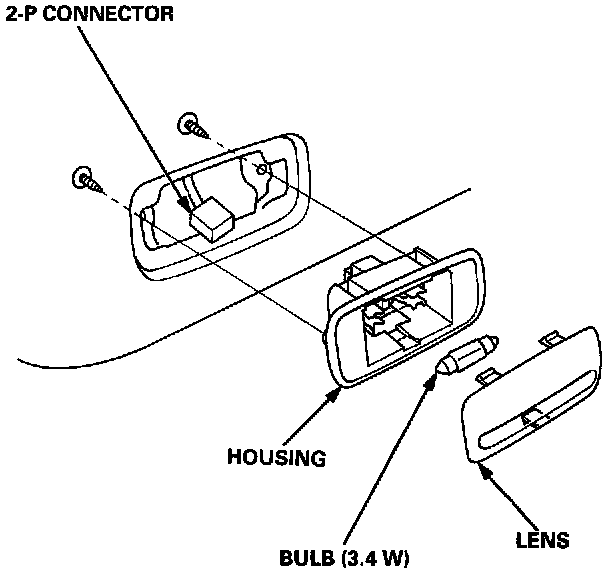

Courtesy Lights Replacement:

NOTE: The bulb or lens alone can be replaced without removing the door panel.

1. To replace the entire light, remove the door panel.
2. Remove the two screws, then remove the light housing from the door panel.
3. Disconnect the 2-P connector, and remove the light.
