Horn: Testing and Inspection

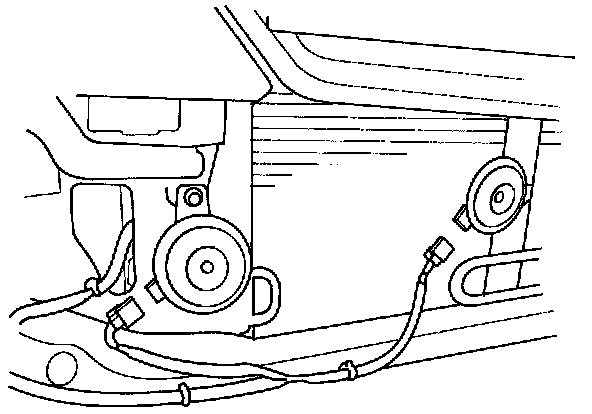

1. Remove the front bumper.

Horns - Test:

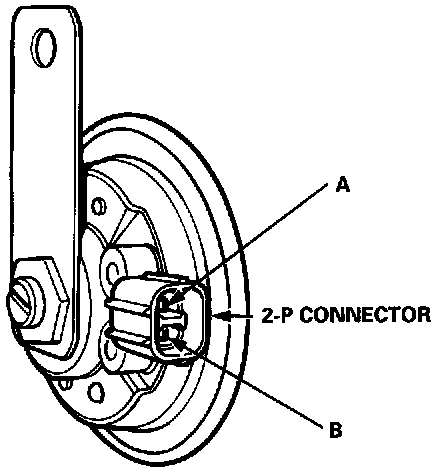

2. Disconnect the 2-P connector and remove the horn.

Horns - Test:




3. Test the horn by connecting battery power to one terminal and grounding the other. The horn should sound.
4. If it fails to sound, replace it.
