Tail Lamp: Service and Repair




Taillight:
1. Open the trunk lid, and remove the taillight access panel.
2. Disconnect the 6-P connector from the taillight assembly.
3. Remove the four mounting nuts and the taillight assembly.

NOTE:
^ Inspect the gasket; replace it if it is distorted or stays compressed.
^ After installing them, run water over the lights to make sure they do not leak.

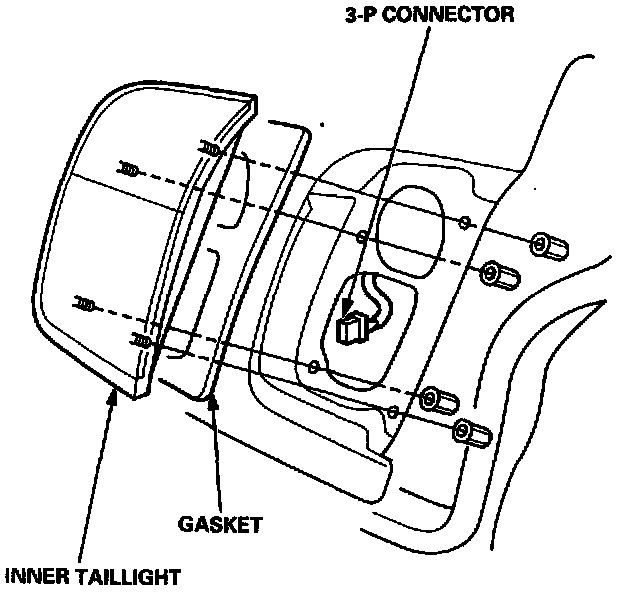

Inner Taillight:
1. Open the trunk lid.
2. Disconnect the 3-P connector from the inner taillight.
3. Remove the four mounting nuts, then pull out the inner taillight.

NOTE:
^ Inspect the gasket; replace it if it is distorted or stays compressed.
^ After installing them, run water over the lights to make sure they do not leak.
