Catalytic Converter: Description and Operation

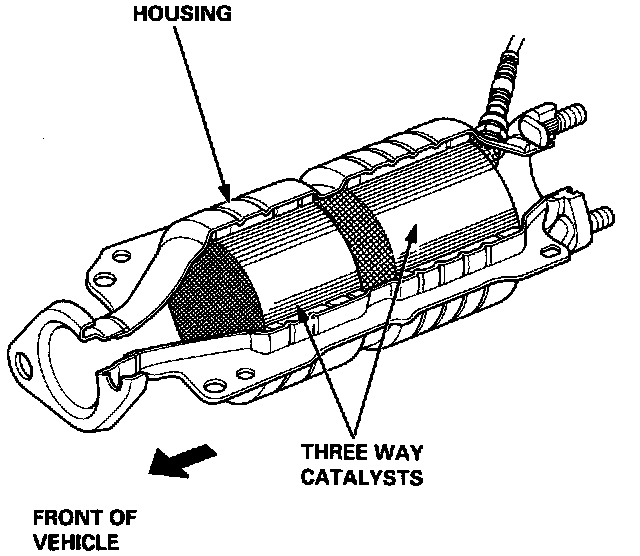

Three Way Catalytic Converter (TWC):
The Three Way Catalytic Converter (TWC) is used to convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gas to carbon dioxide (CO2), dinitrogen (N2) and water vapor.

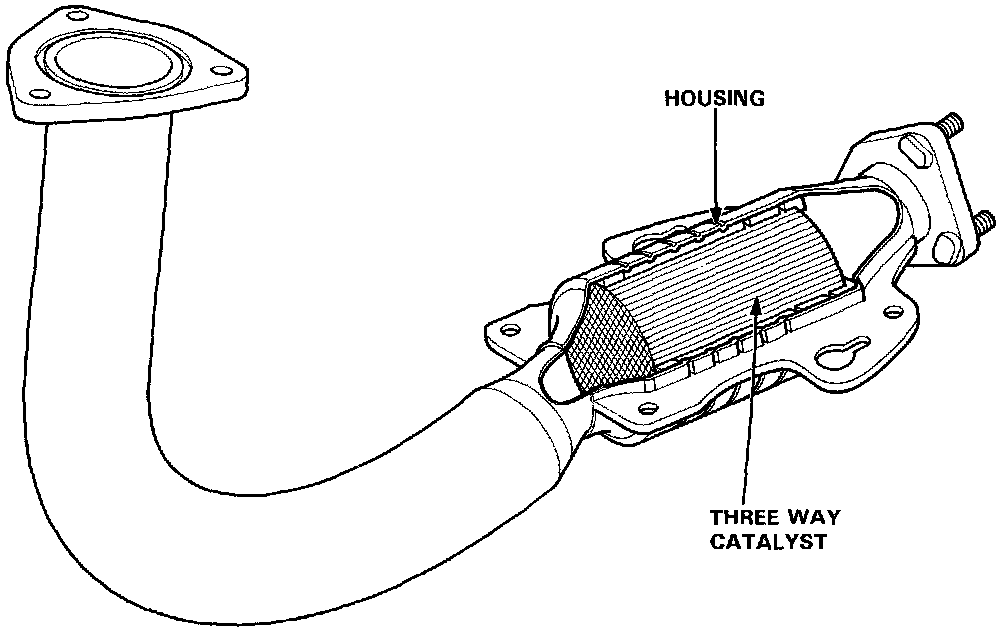

Warm Up Three Way Catalytic Converter (WU-TWC) (Sedan KL (LX, SE without ABS) model):
The Warm Up Three Way Catalytic Converter (WU-TWC) system is designed to lower HC, CO, and NOx emissions during engine warm up.
The WU-TWC is located in the exhaust pipe A ahead of the three way catalytic converter.
