Differential: Service and Repair

1. Remove transaxle from car. Service and Repair
2. Remove transmission housing. Service and Repair

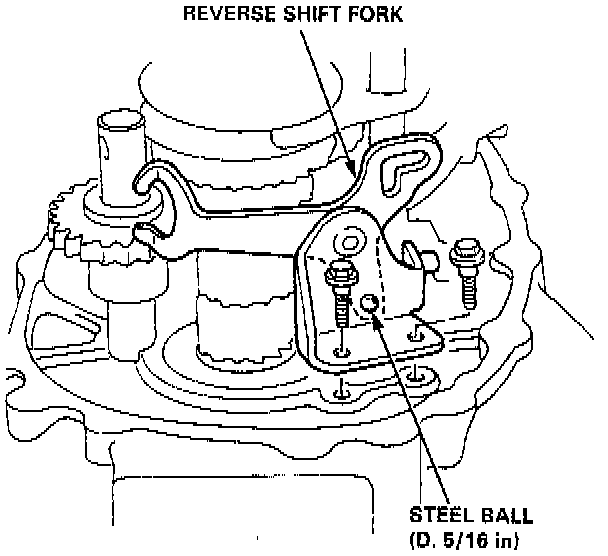

3. Remove the reverse shft fork.

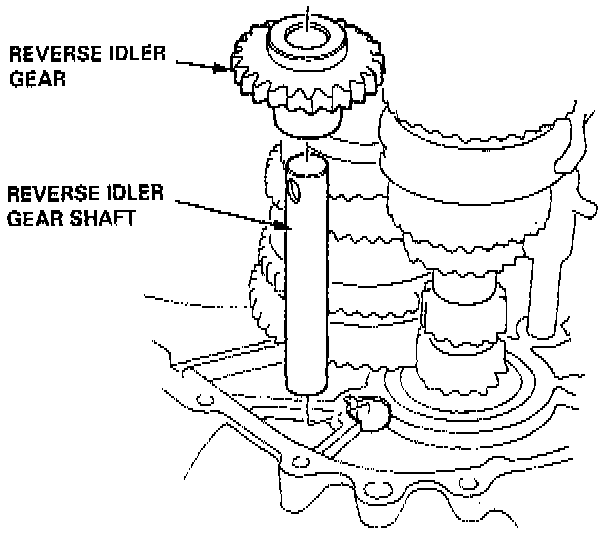

4. Remove reverse idler gear shaft.





5. Remove the mainshaft and countershaft assemblies with the shin forks from the clutch housing.

NOTE: Tape the mainshaft splines before removing the mainshaft and countershaft assemblies.





6. Remove the differential assembly.
7. See transmission housing service section for installation of differential assembly. Service and Repair
