Accord EX Sedan L4-2156cc 2.2L SOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Wiring Diagram
Wiring Diagram

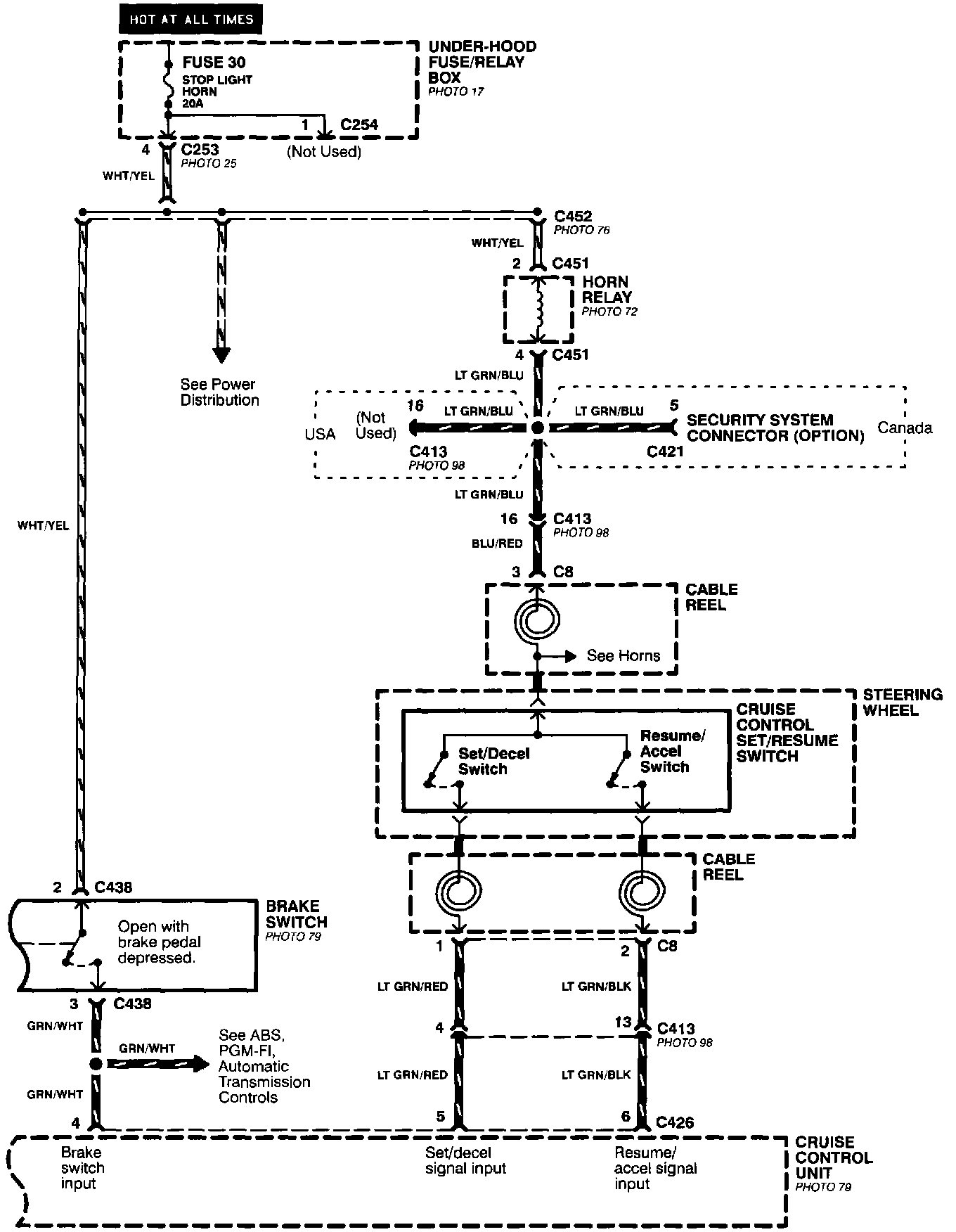

Cruise Control (Part 1 Of 4):

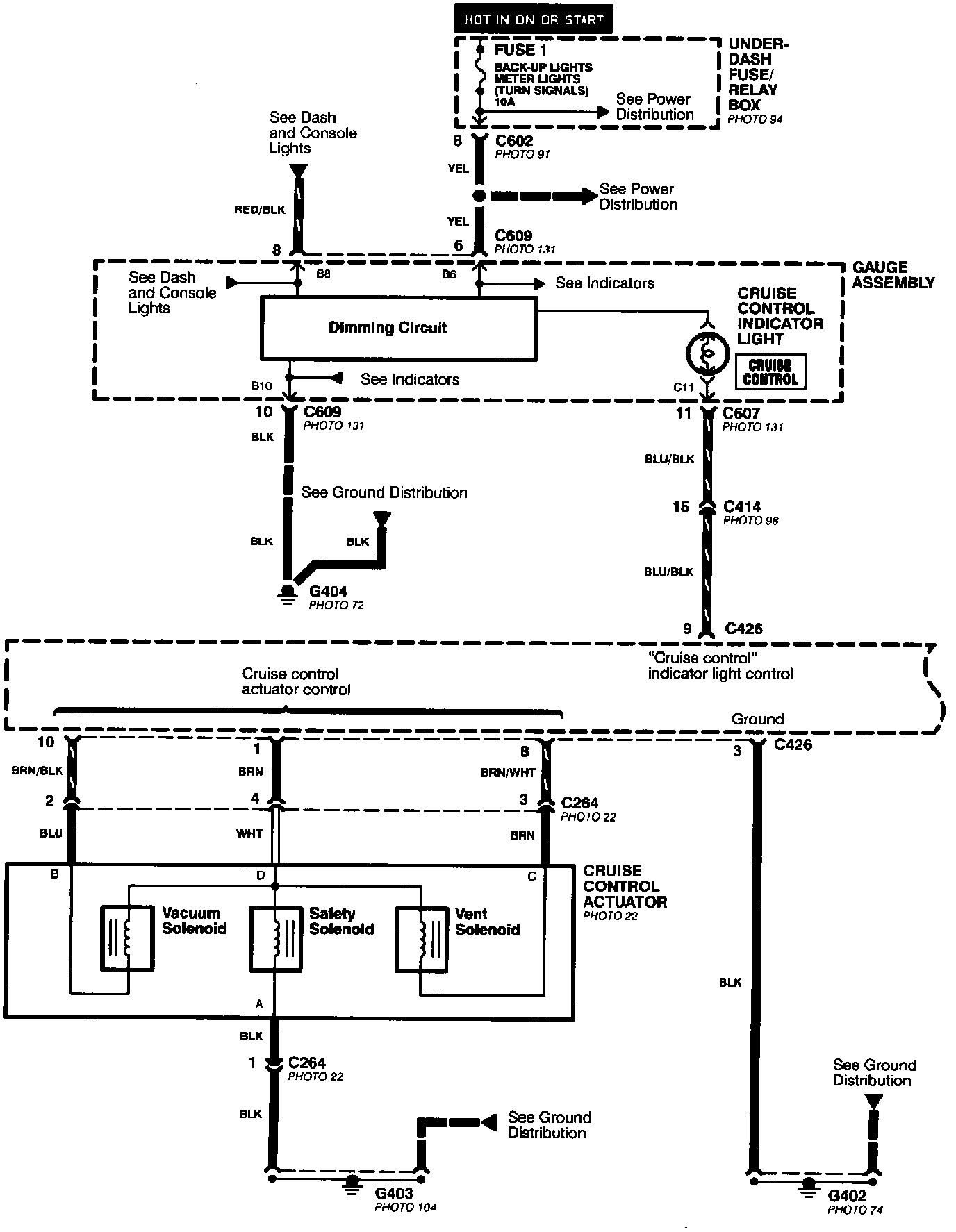

Cruise Control (Part 2 Of 4):

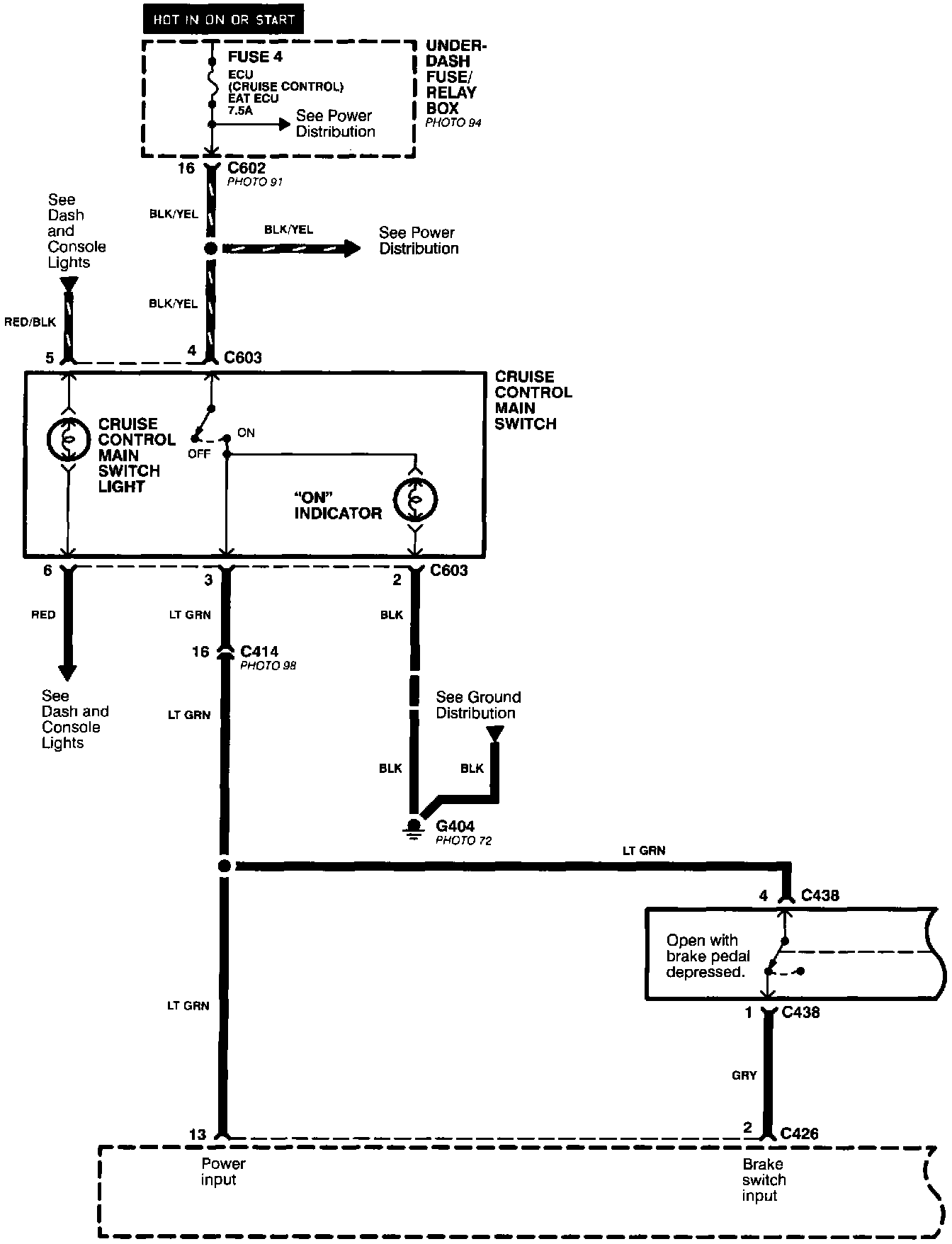

Cruise Control (Part 3 Of 4):
Cruise Control (Part 4 Of 4):
