Wiring Diagrams

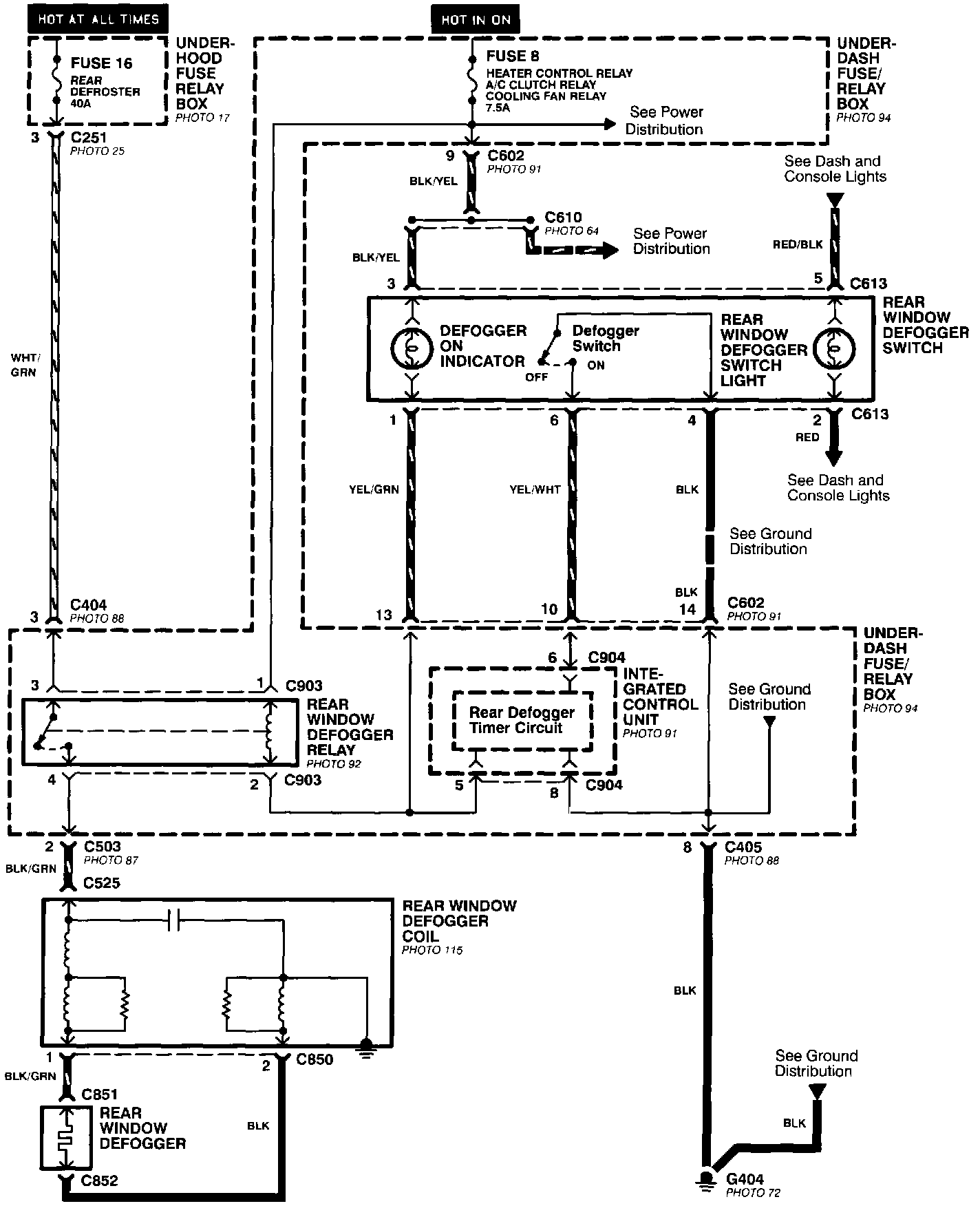

Rear Window Defogger (Without Window Antenna):

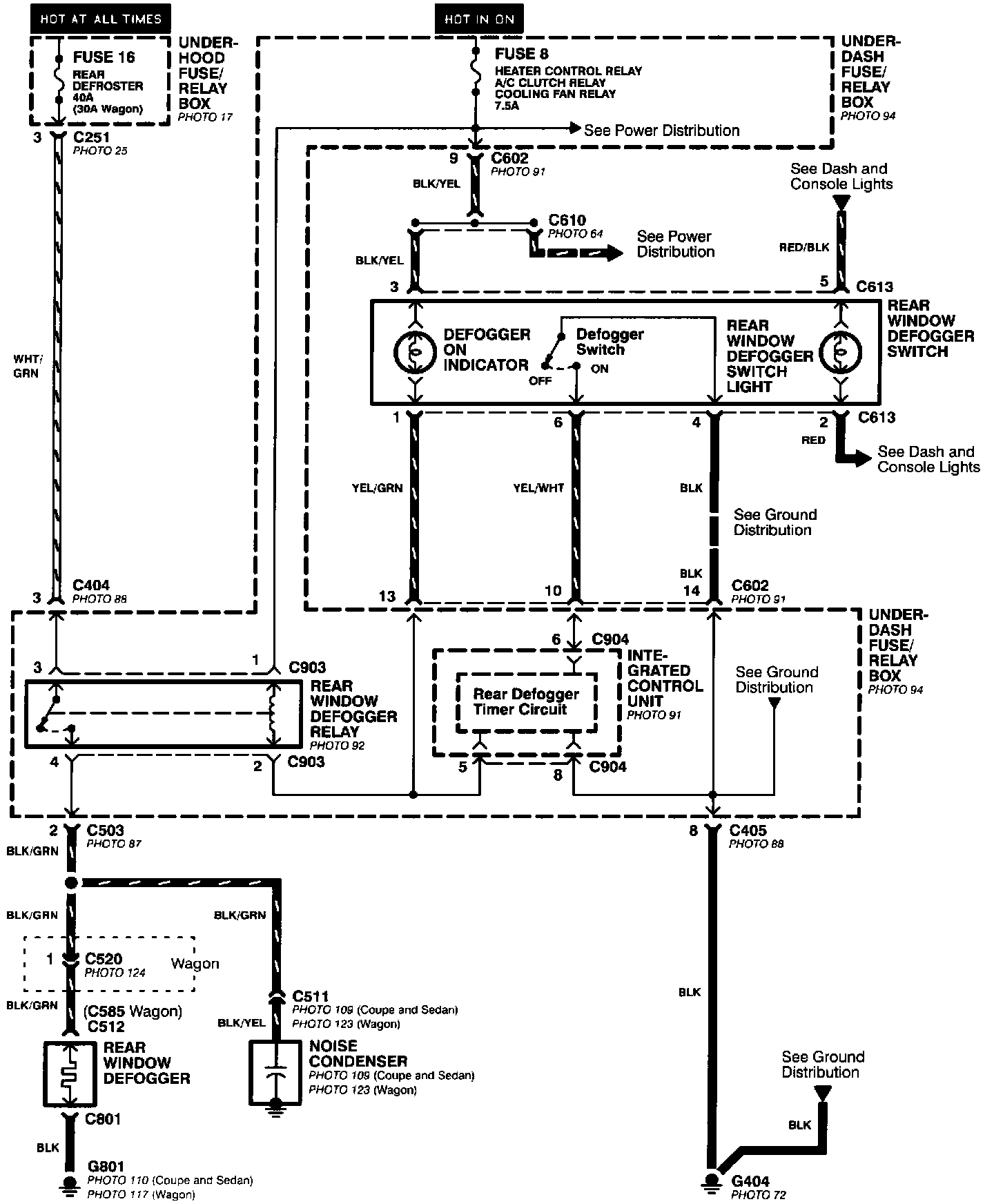

Rear Window Defogger (With Window Antenna):
