Radiator Cooling Fan Control Module

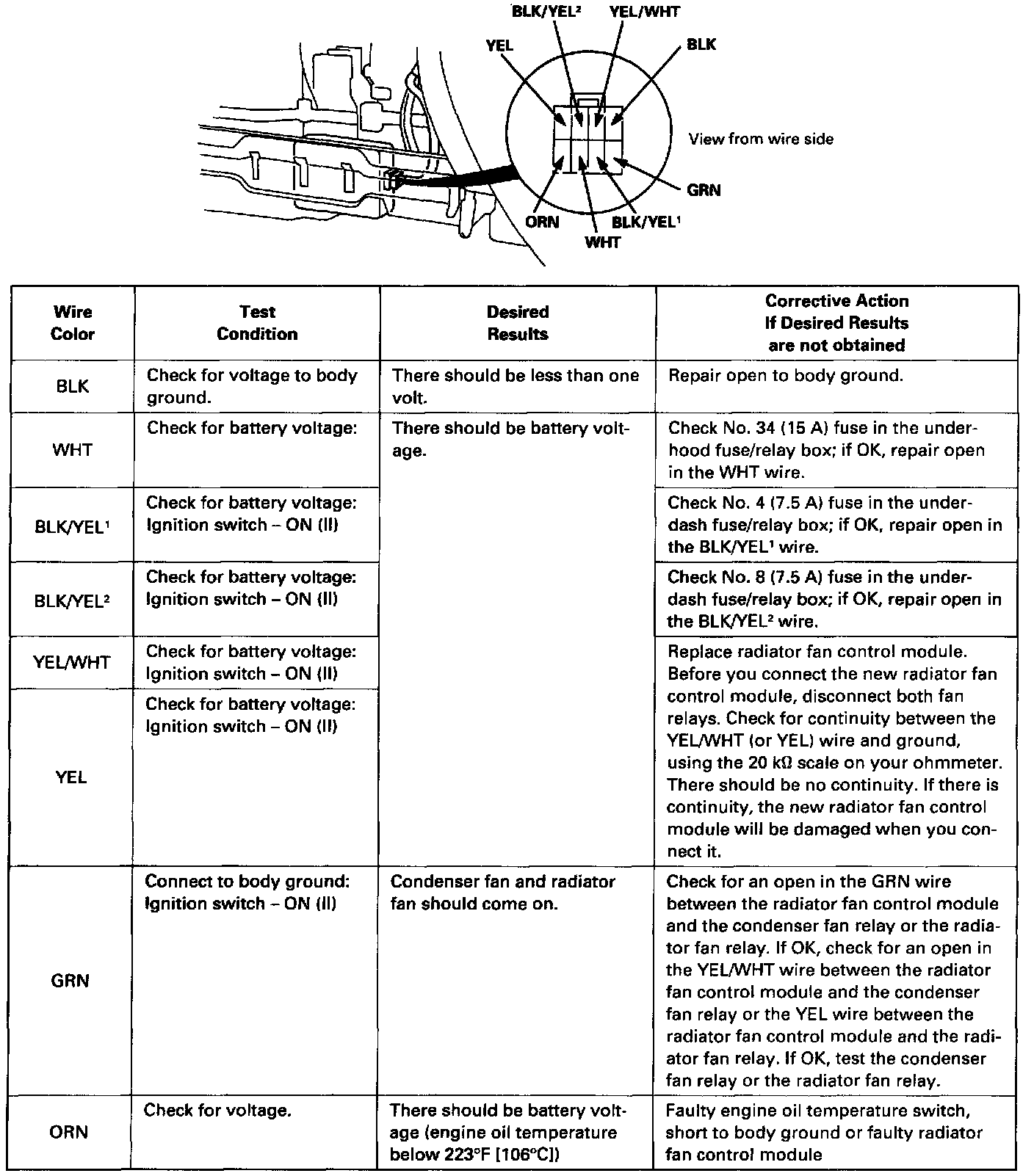

Radiator Fan Control Module Terminals

Radiator Fan Control Module Input Tests:

NOTE: Perform the following tests with the radiator fan control module connector connected and the ignition switch ON (II) and the A/C switch OFF.
If you find the cause of a problem, correct it before you continue.
