General Module

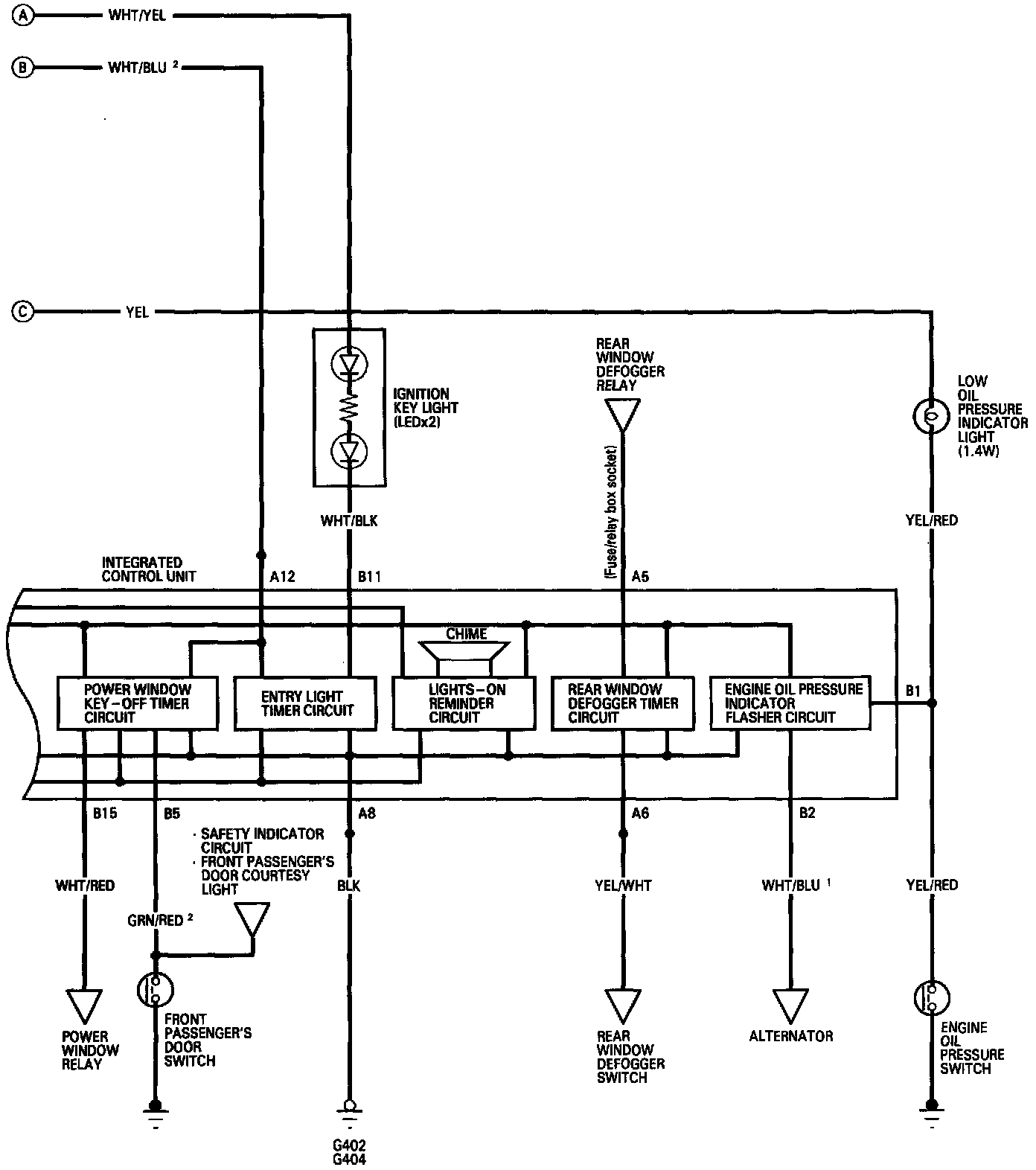

Integrated Control Unit - Circuit Diagram (Part 1 Of 2):



Integrated Control Unit - Circuit Diagram (Part 2 Of 2):
