Engine Installation

NOTE: Install the engine in the reverse order of removal. Reinstall the mount bolts/nuts in the following sequence. Failure to follow these procedures may cause excessive noise and vibration, and reduce bushing life.

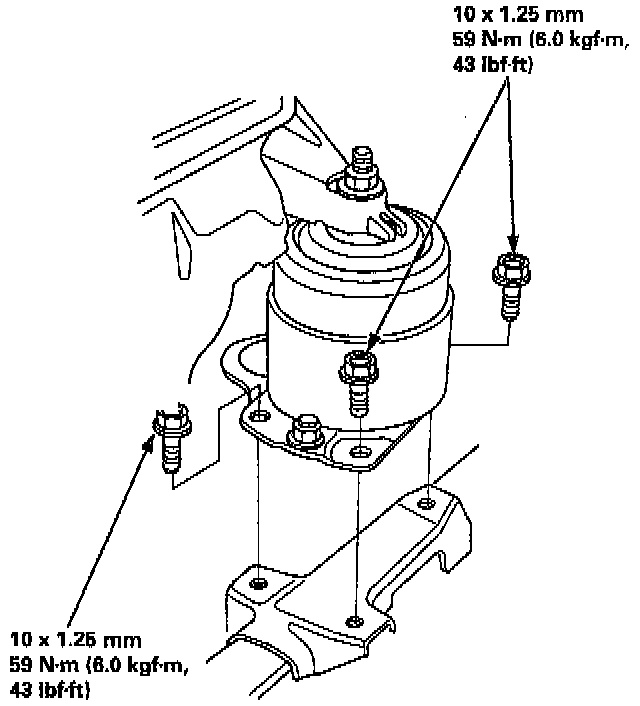

1. Install the rear mount, then tighten the bolts.

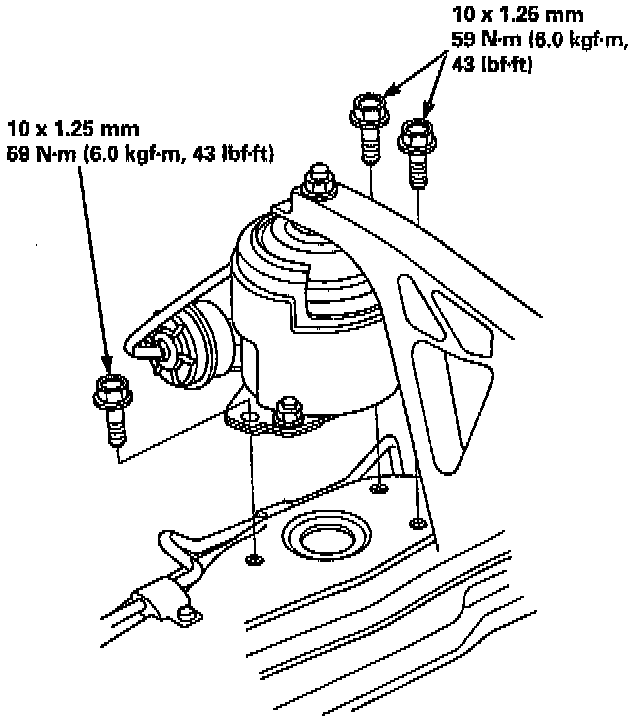

2. Install the front mount, then tighten the bolts.

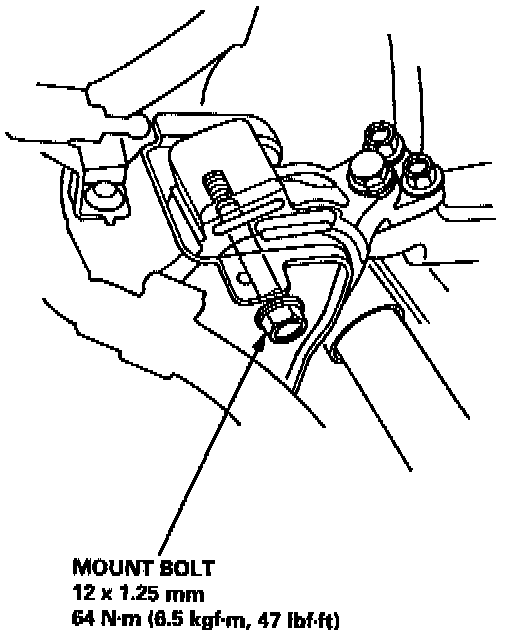

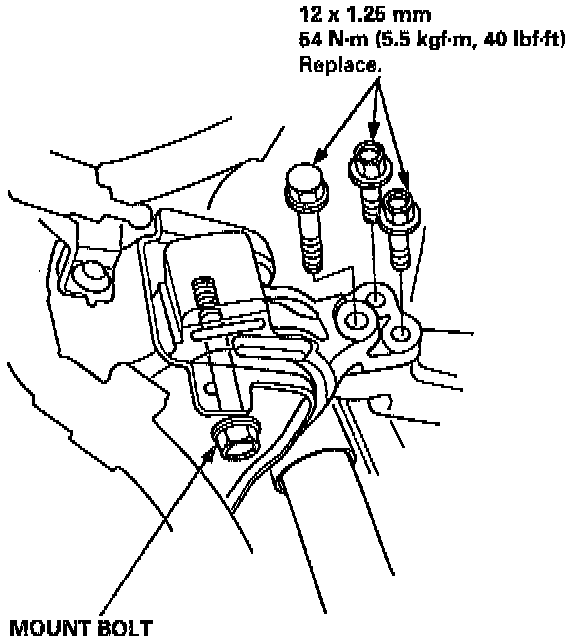

3. Install the side engine mount, then tighten the bolts on the engine side.

NOTE: Do not tighten the mount bolt.

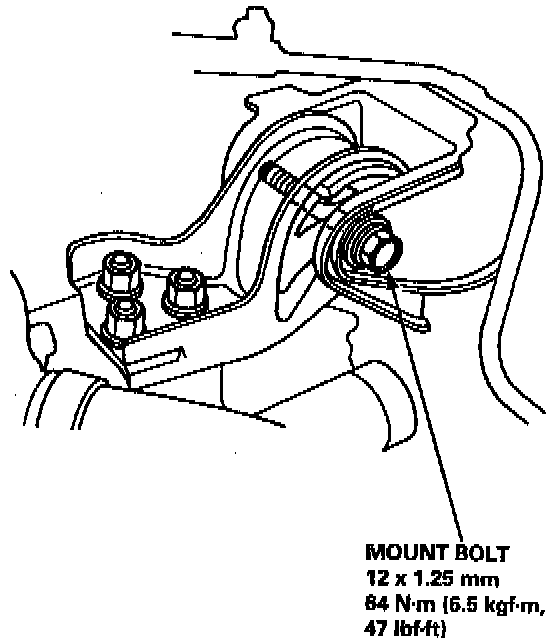

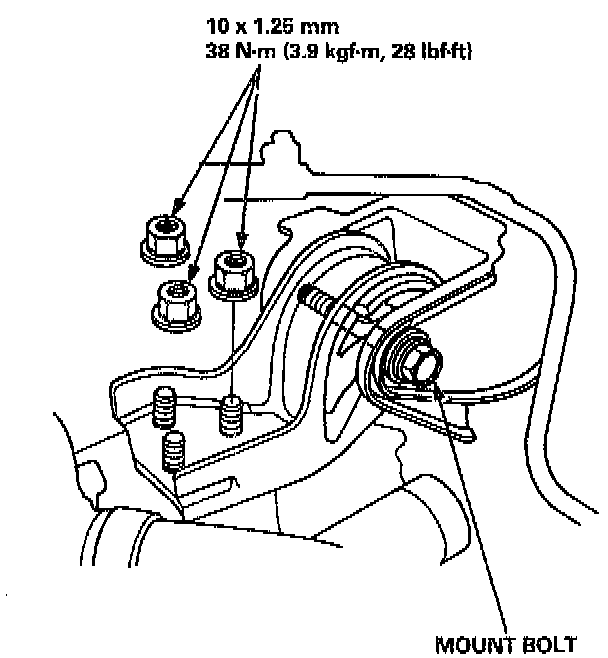

4. Install the transmission mount, then tighten the nuts on the transmission side.

NOTE: Do not tighten the mount bolt.





5. Tighten the mount bolt on the side engine mount.





6. Tighten the mount bolt on the transmission mount.
^ Check that the spring clip on the end of each driveshaft clicks into place.

CAUTION: Use new spring clips.

^ Bleed air from the cooling system at the bleed bolt with the heater valve open. Refer to Cooling System.
^ Adjust the throttle cable. Powertrain Management.
^ Adjust the shift cable. Refer to Powertrain Management.
^ Check that the transmission shifts into gear smoothly.

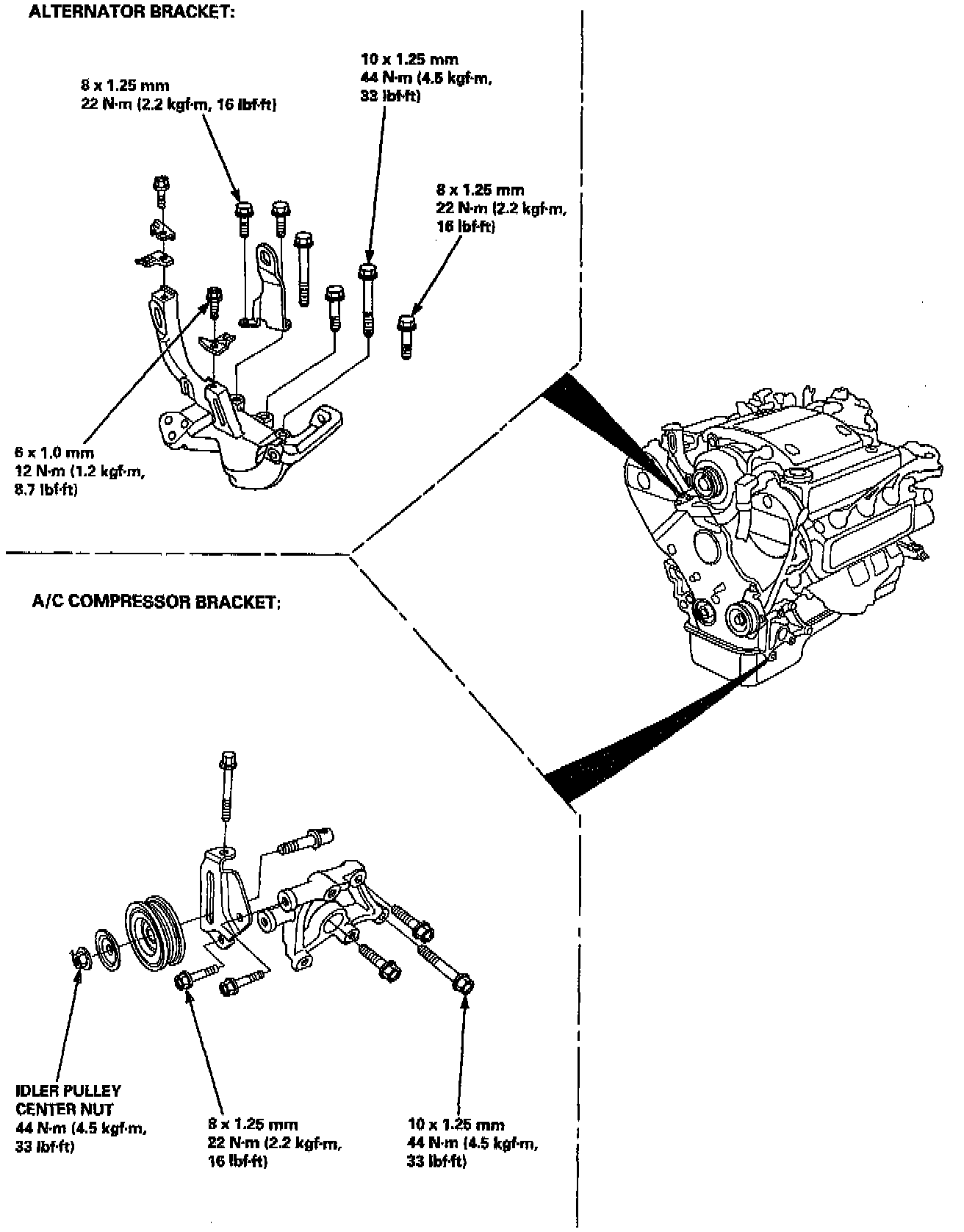

^ Adjust the tension of the following drive belts. Alternator belt. Refer to Starting and Charging.
^ P/S pump belt. Refer to steering and Suspension.
^ A/C compressor belt.
^ Clean battery posts and cable terminals with sandpaper, assemble, then apply grease to prevent corrosion.
^ Inspect for fuel leakage. Refer to Powertrain Management.
- After assembling fuel line parts, turn on the ignition switch (do not operate the starter) so that the fuel pump operates for approximately two seconds and the fuel line pressurizes.
Repeat this operation two or three times, and check for fuel leakage at any point in the fuel line.
^ Refill the engine with engine oil.
^ Refill the transmission with ATF. Refer to Transmission and Drivetrain.
