Home >> Honda >> 1997 >> Accord LX Coupe L4-2156cc 2.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Ground Distribution >> G551 (Wagon) and 552

G551 (Wagon) and 552

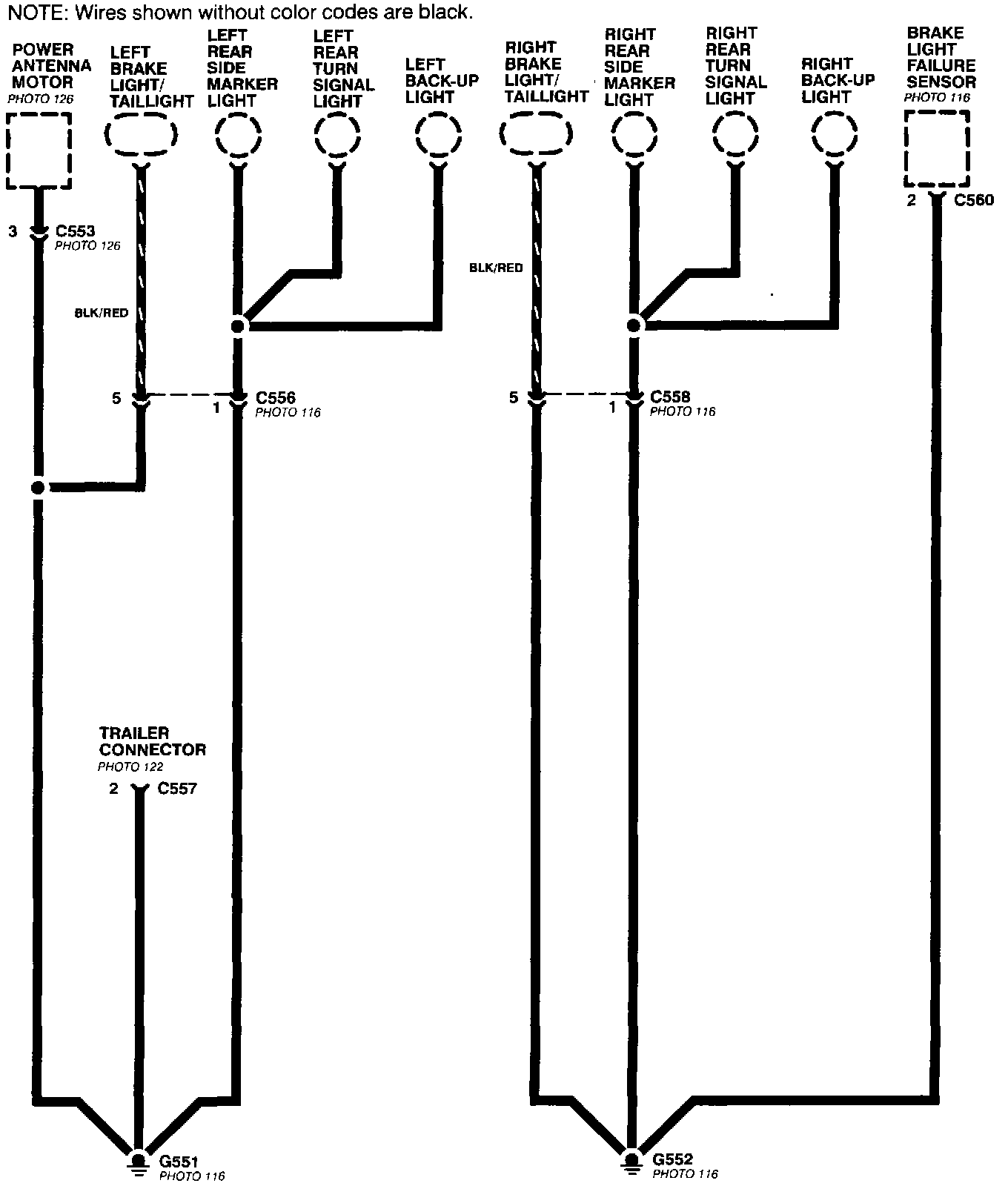

Ground Distribution (G551 And G552):
