Home >> Honda >> 1997 >> Accord SE Coupe L4-2156cc 2.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> Circuit Diagram

Circuit Diagram

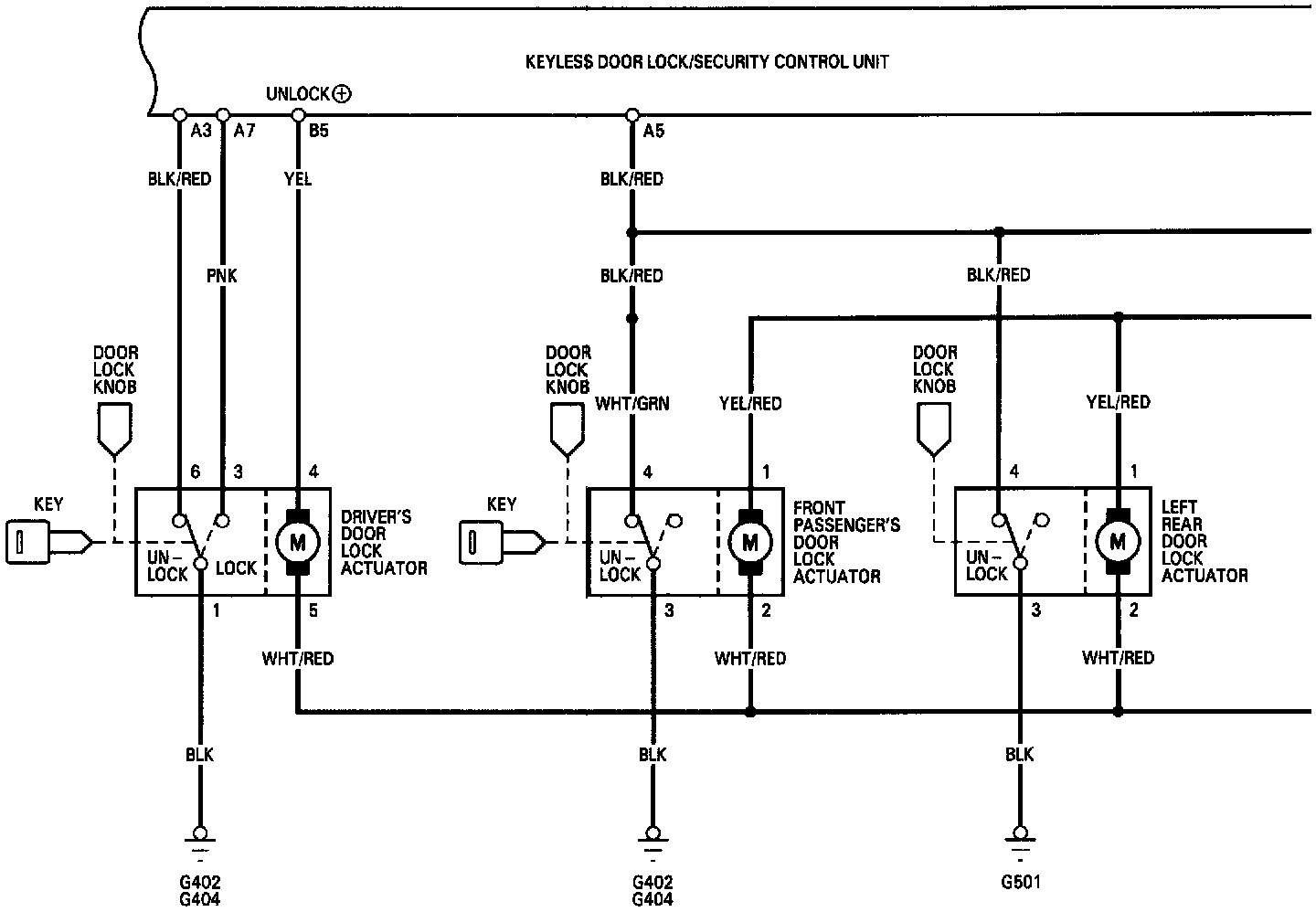

Keyless Entry/Security Alarm System (USA: SE) - Circuit Diagram:

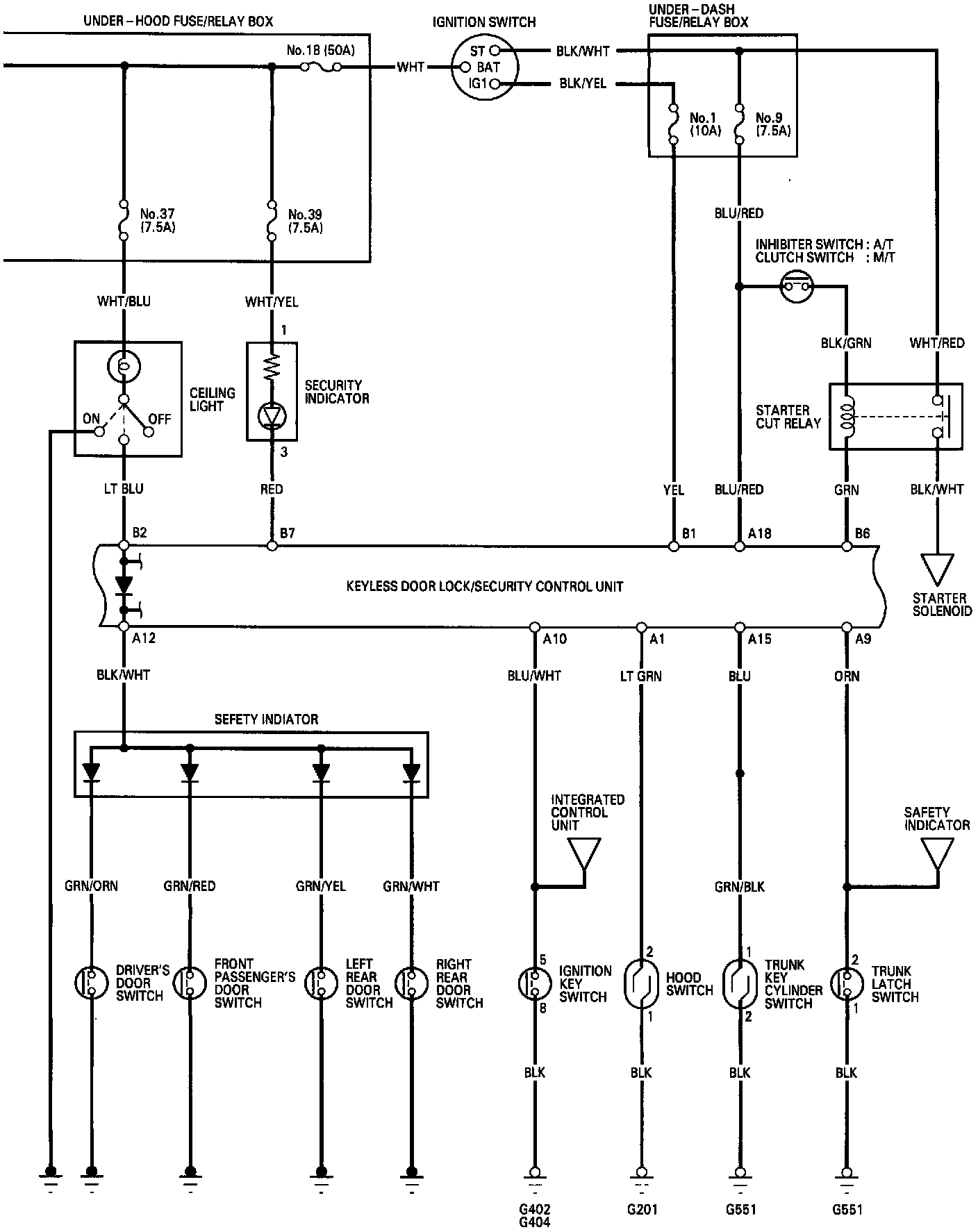

Keyless Entry/Security Alarm System (USA: SE) - Circuit Diagram:

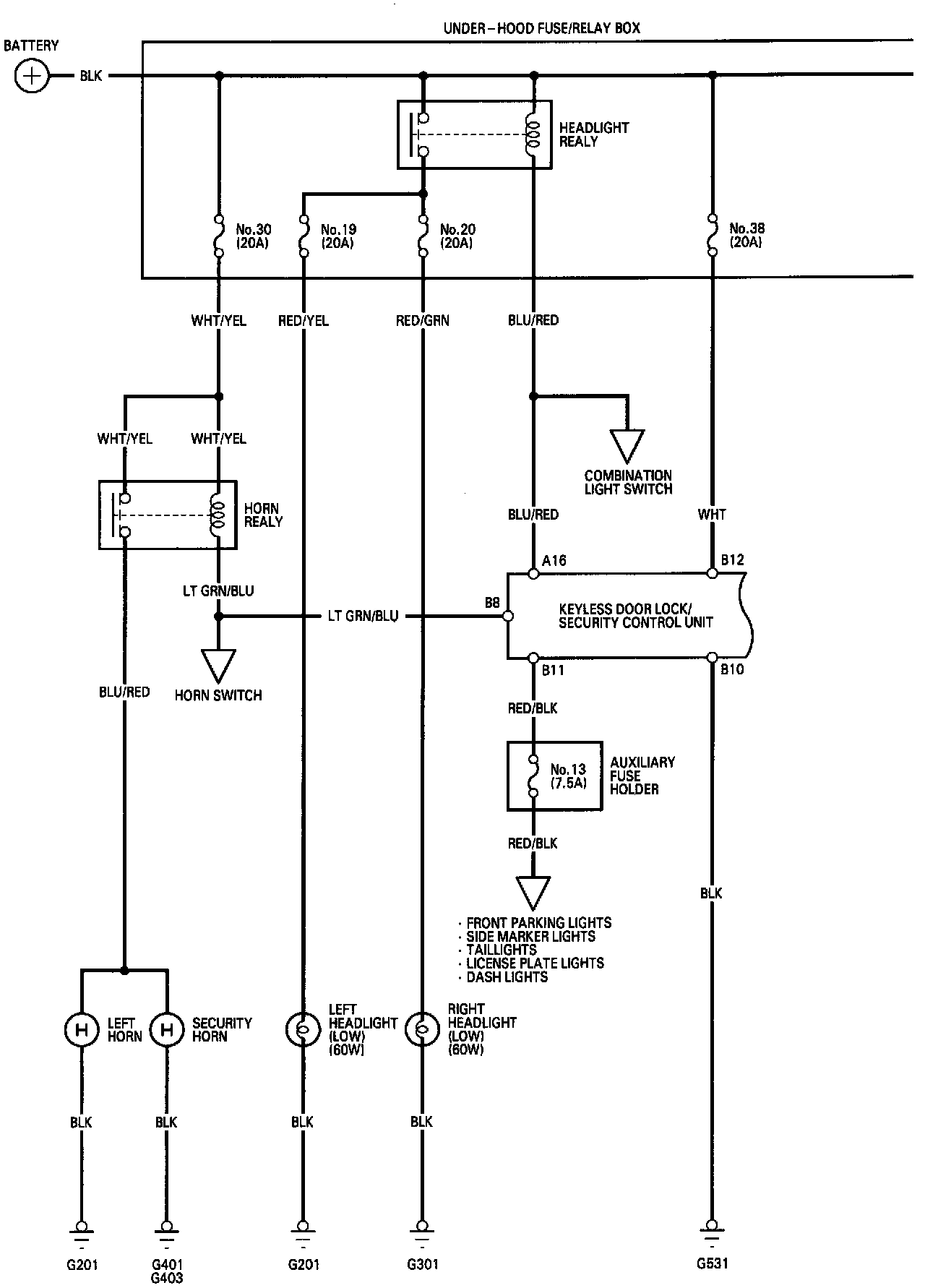

Keyless Entry/Security Alarm System (USA: SE) - Circuit Diagram:




Keyless Entry/Security Alarm System (USA: SE) - Circuit Diagram:
