Charging System: Description and Operation

Charging System - Description:

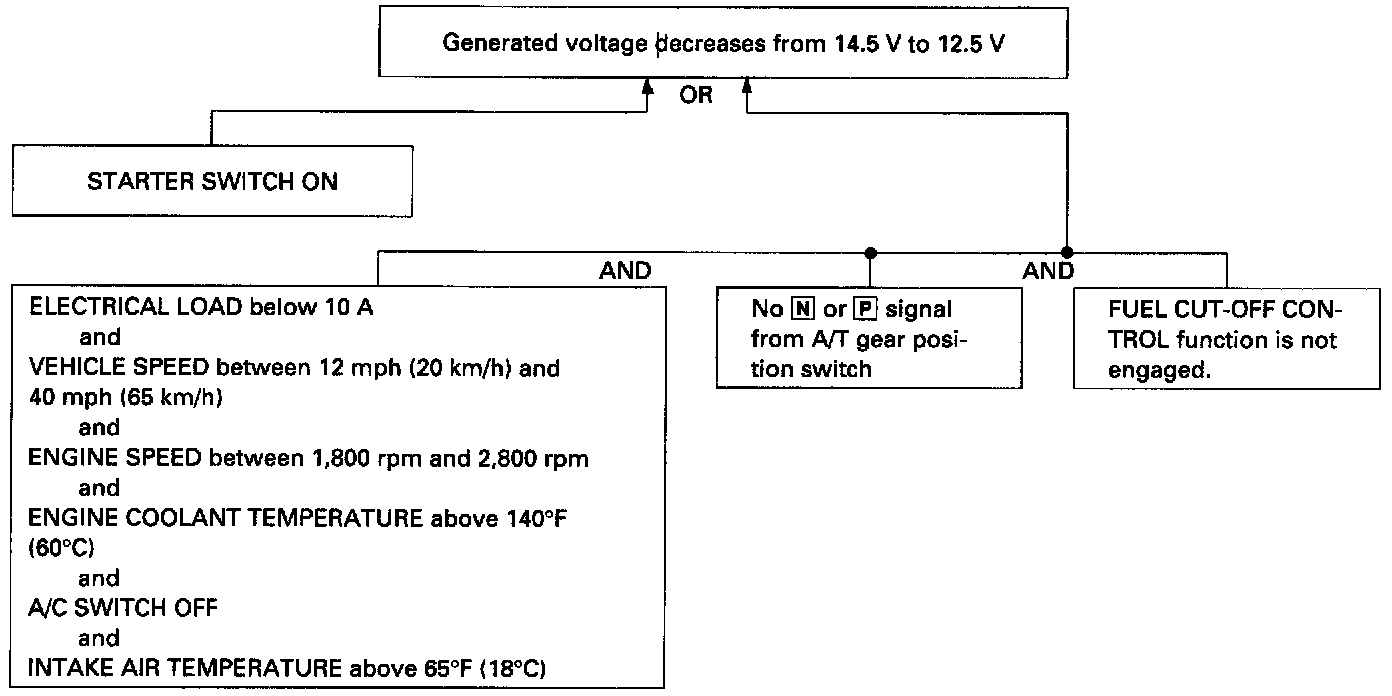

To improve fuel economy, the alternator control system within the ECM/PCM changes the voltage generated at the alternator in accordance with driving conditions.
