Air Bag Systems
>>
Malfunction Lamp / Indicator, Air Bag
Malfunction Lamp / Indicator, Air Bag

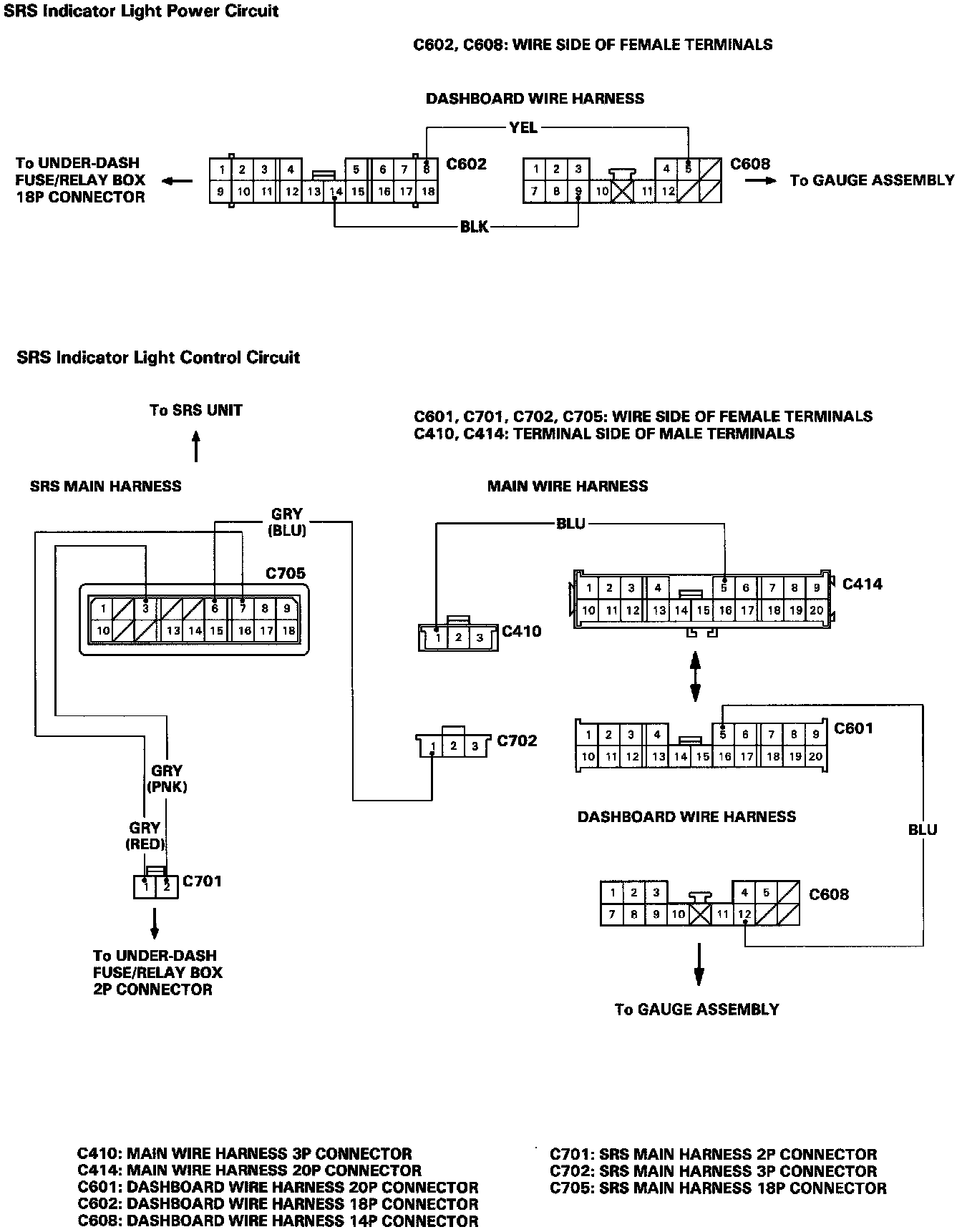

SRS Indicator Light Wire Connections:
