General Module

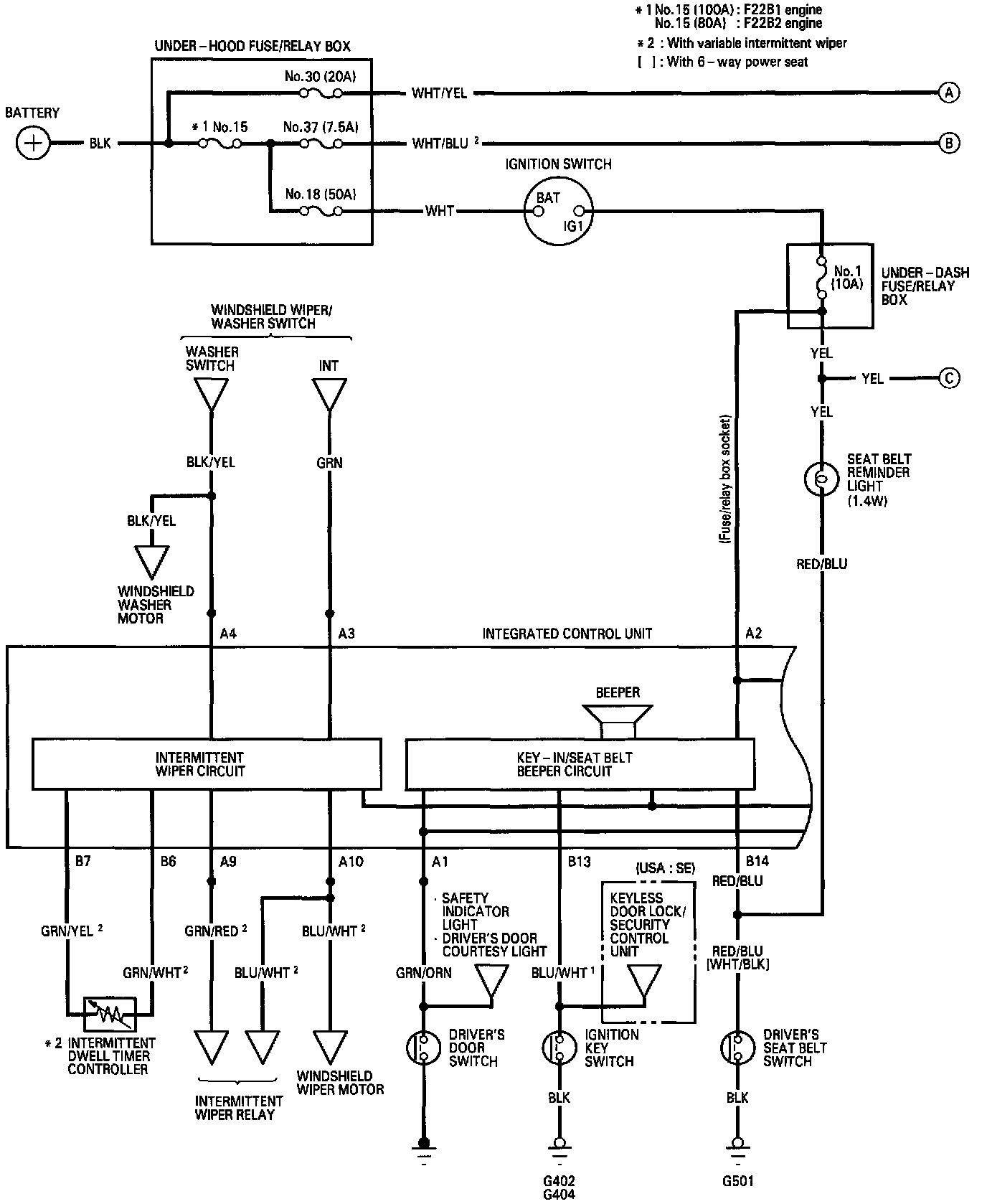

Integrated Control Unit - Circuit Diagram:

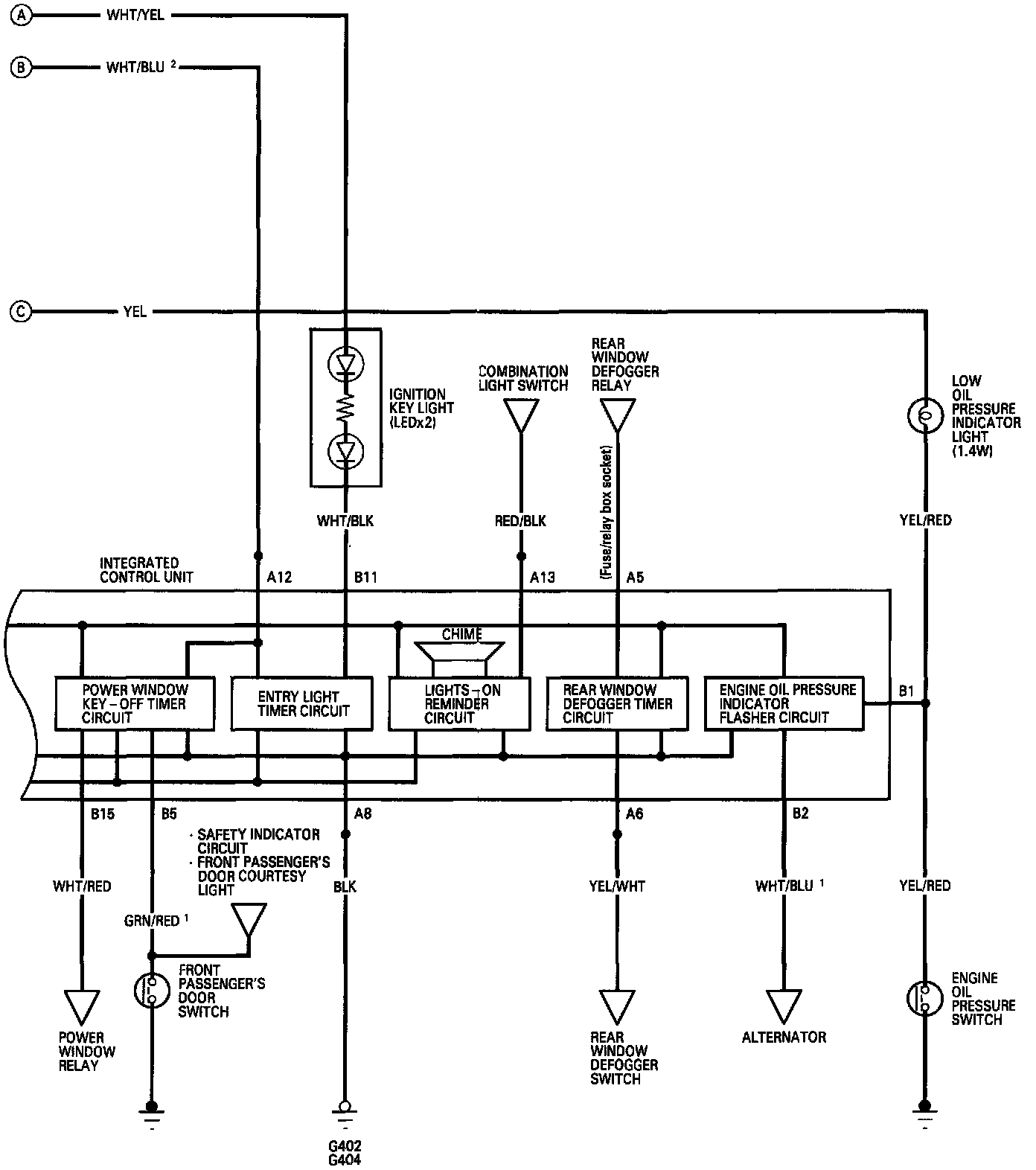

Integrated Control Unit - Circuit Diagram:
