Accord Wagon EX L4-2156cc 2.2L SOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
ABS Wire Harness and A/C Wire Harness (Optional)
ABS Wire Harness and A/C Wire Harness (Optional)

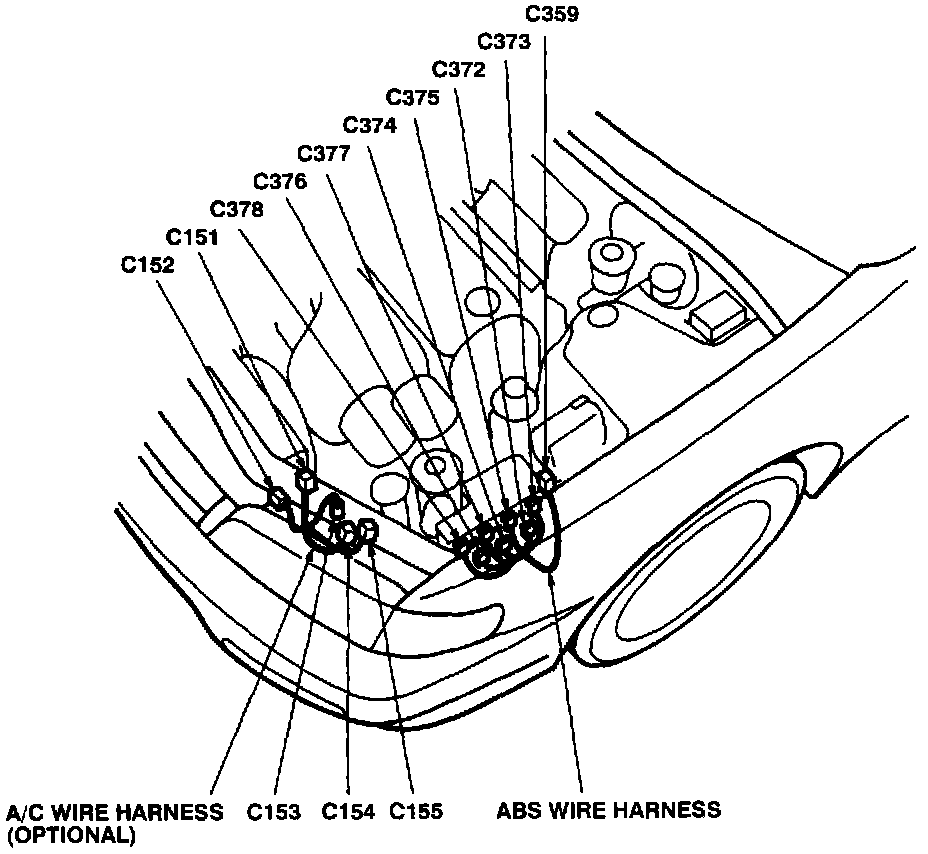

ABS Wire Harness And A/C Wire Harness (Optional):
ABS Wire Harness And A/C Wire Harness (Optional):

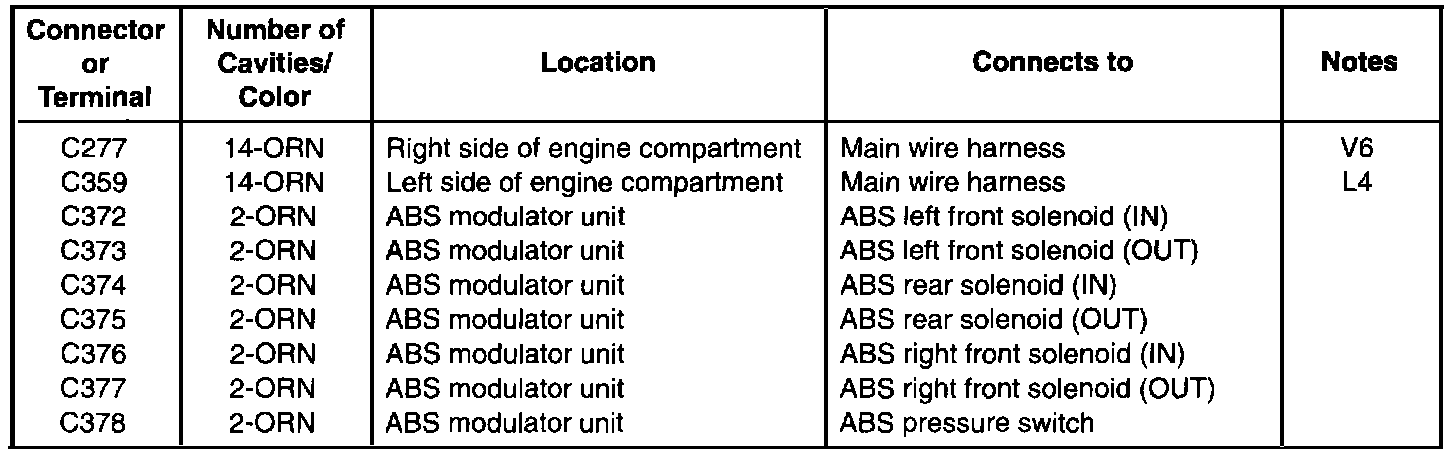

ABS Wire Harness:

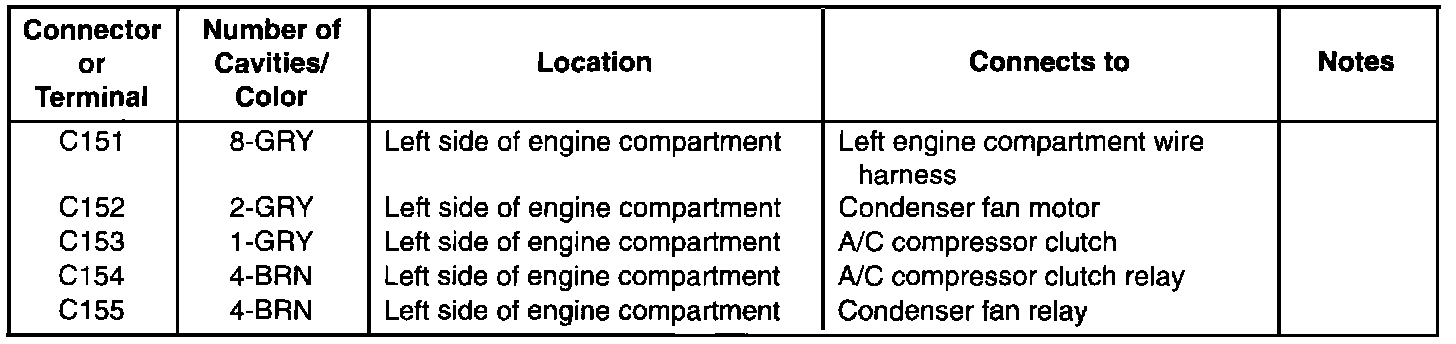

A/C Wire Harness (Optional):
