Home >> Honda >> 1997 >> Accord Wagon LX L4-2156cc 2.2L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Harness >> Starter, Battery Ground and Engine Ground Cables

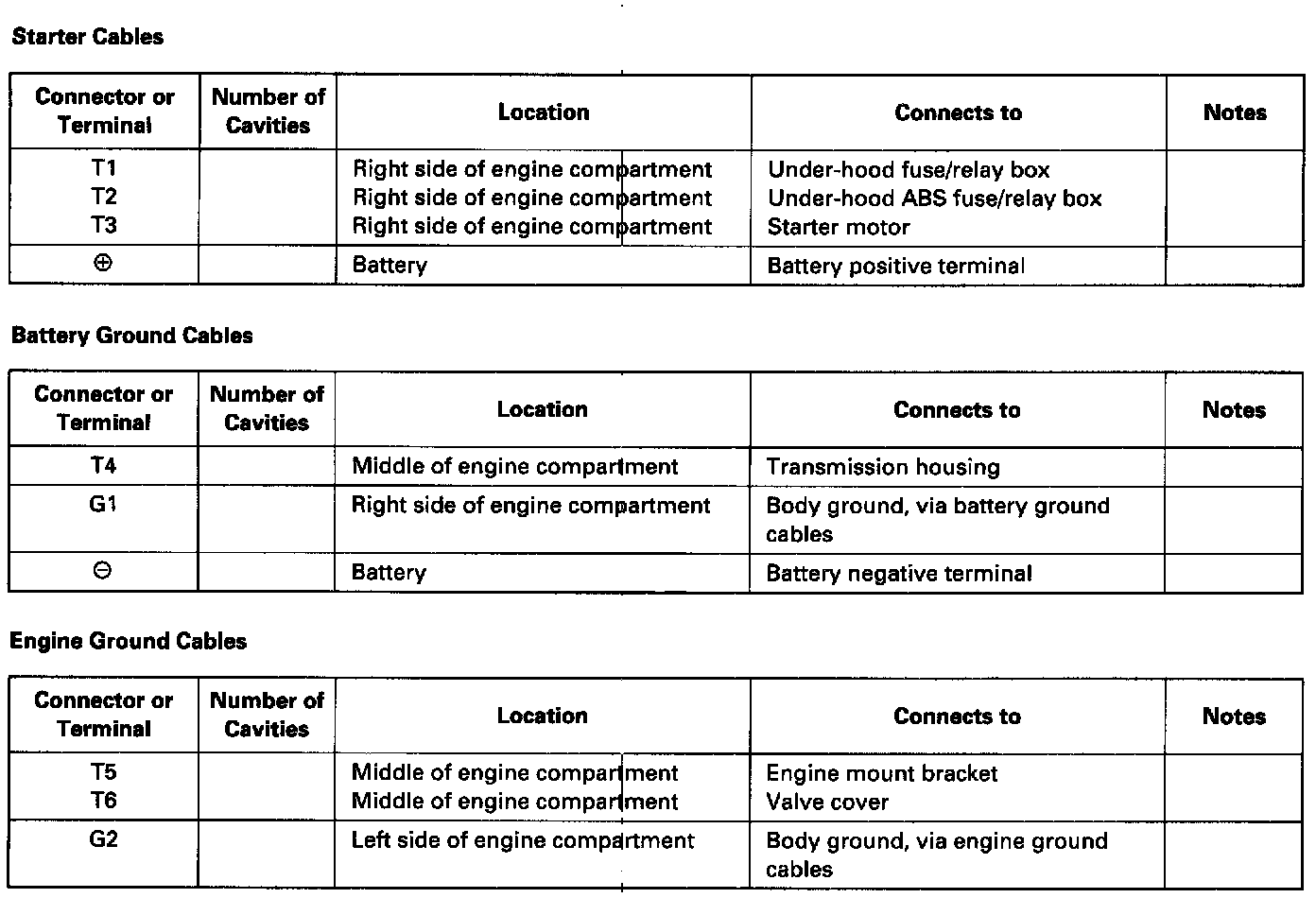

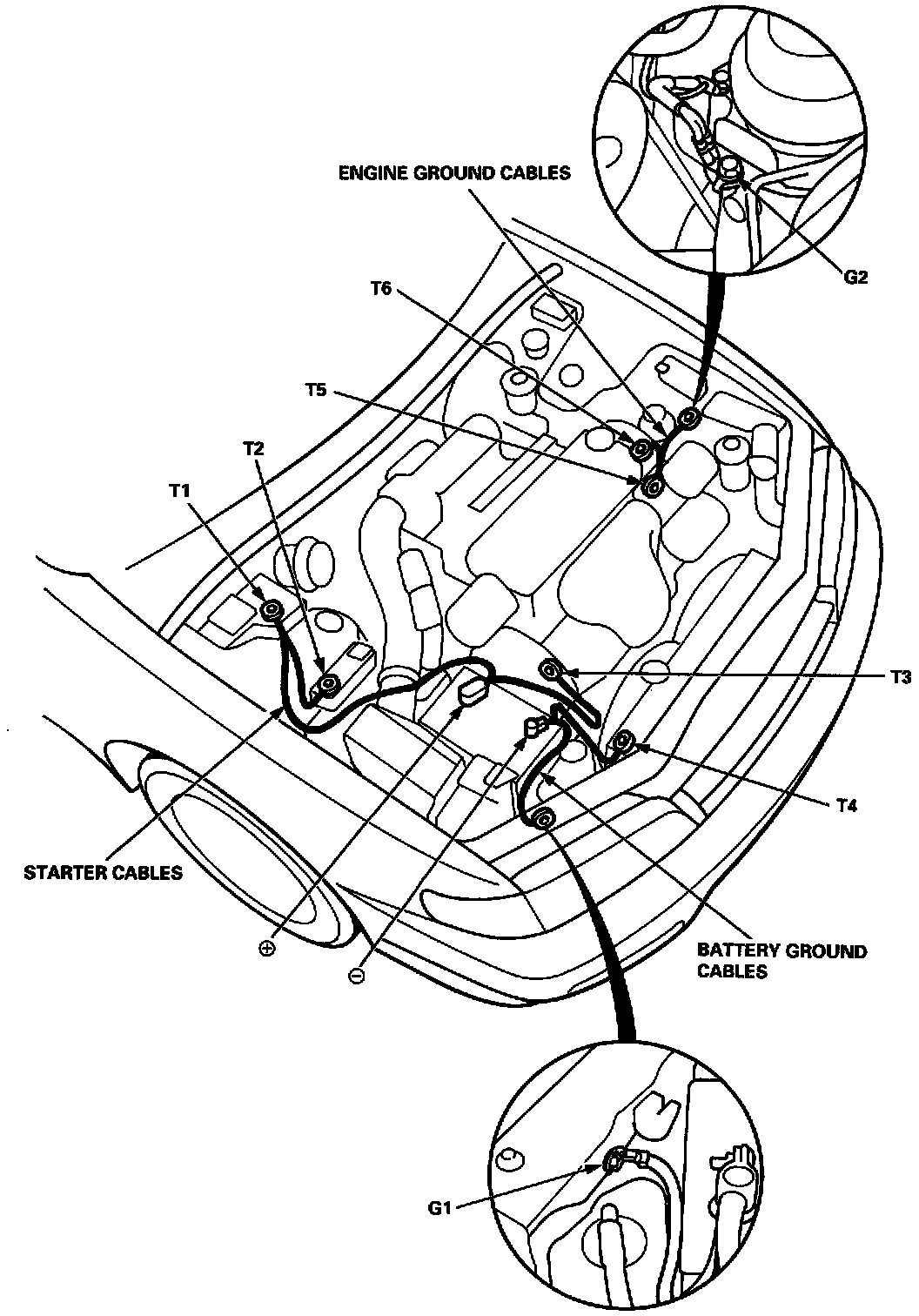

Starter, Battery Ground and Engine Ground Cables

Starter, Battery Ground And Engine Ground Cables:



Starter, Battery Ground And Engine Ground Cables:
