Trailing Arm: Service and Repair

REPLACEMENT

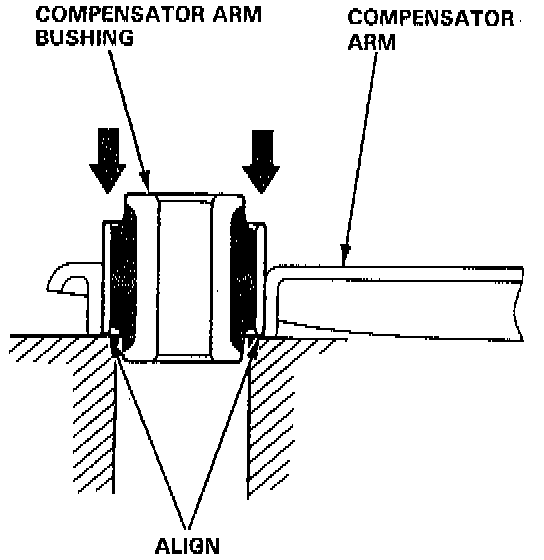

1. Drive the compensator arm bushing out of the compensator from the direction indicated.

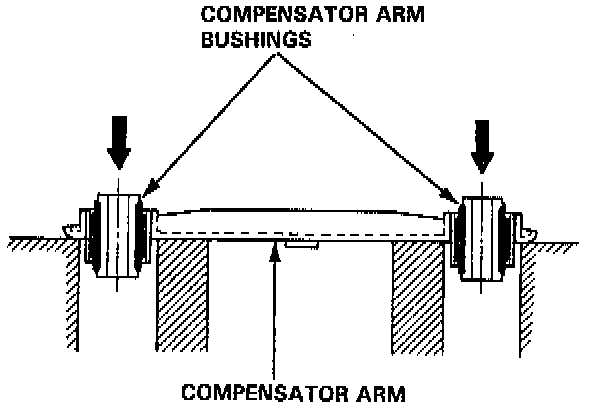

2. Drive in the compensator arm bushings from the direction indicated.

NOTE: Drive in the compensator arm bushings so that their leading edges are flush with the compensator arm.
