Prelude L4-2156cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse
>>

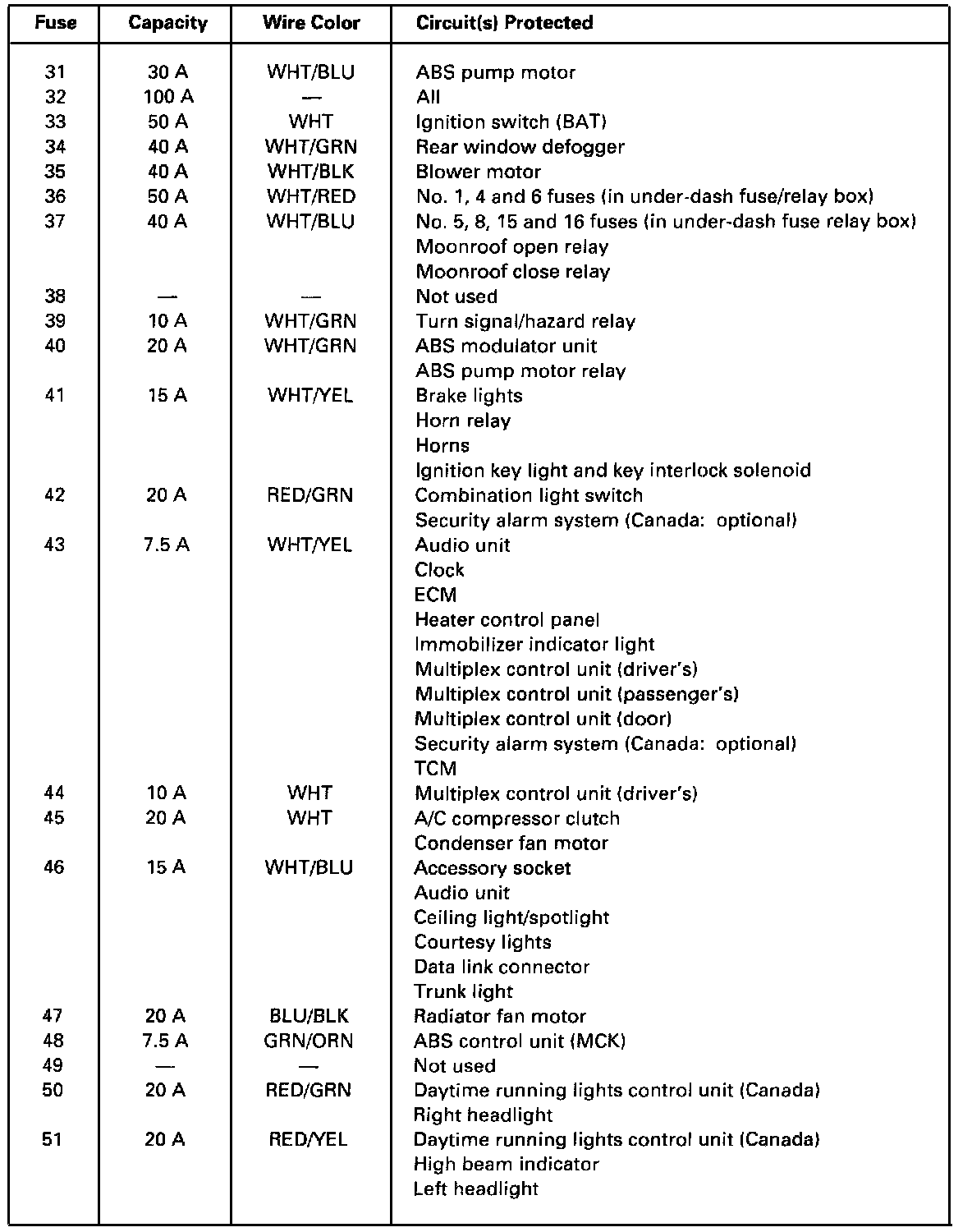

Under-Hood ABS Fuse/Relay Box
Under-Hood ABS Fuse/Relay Box

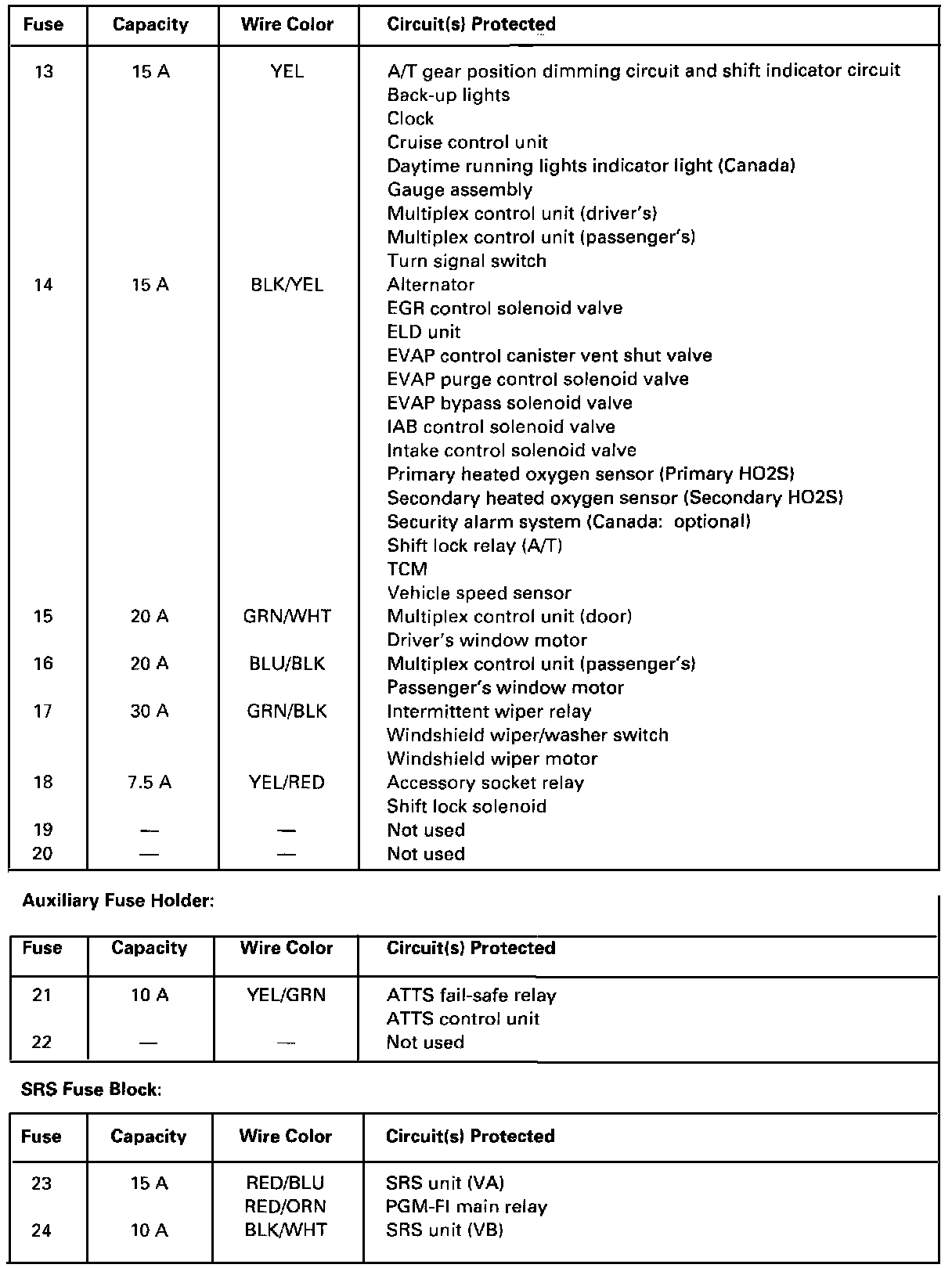

Fuse-to-Component(s) Index (Numerical Sequence):
Fuse-to-Component(s) Index (Numerical Sequence):
Fuse-to-Component(s) Index (Numerical Sequence):
