Yaw Rate Sensor





REPLACEMENT

CAUTION: Be careful not to drop or bump the sensor, and don't remove or install it with an impact wrench; the sensor may be damaged.

1. Remove the rear seat-back.

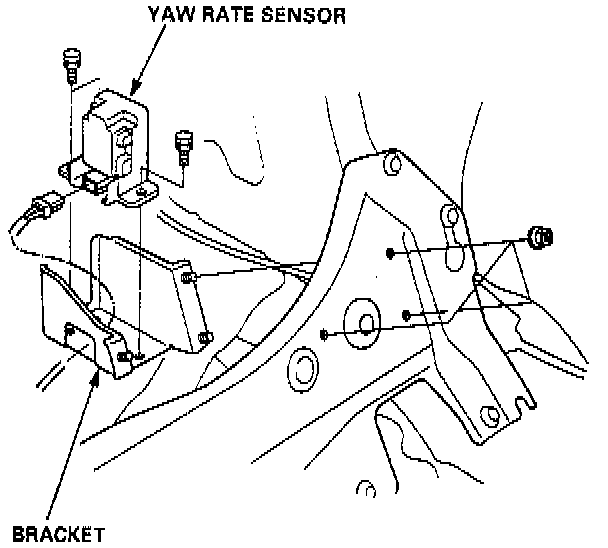

2. Remove the bracket and yaw rate sensor.
3. Install the yaw rate sensor in the reverse order of removal.
