Automatic Transmission/Transaxle
>>
Park Gear, A/T
Park Gear, A/T
DIMENSIONS

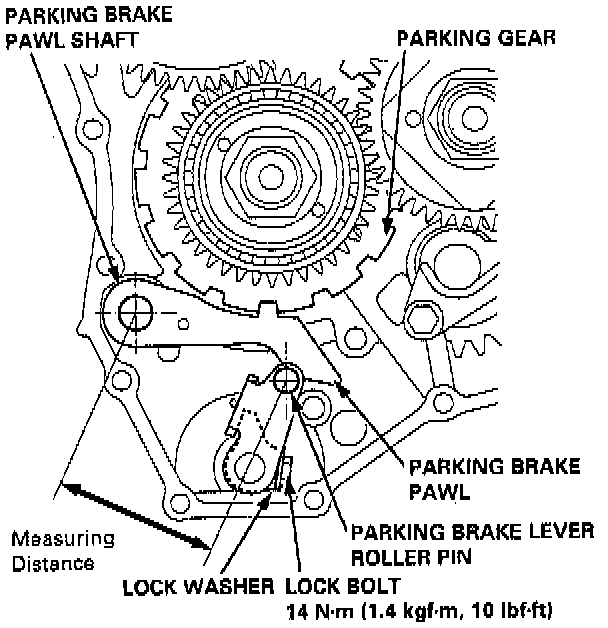

Distance between the parking brake pawl shaft and the parking brake lever roller pin.
Standard: 69.5-70.5 mm (2.74-2.78 inch.)
