Cooling System
>>
System Diagram
System Diagram
CIRCUIT DIAGRAM WITH A/C

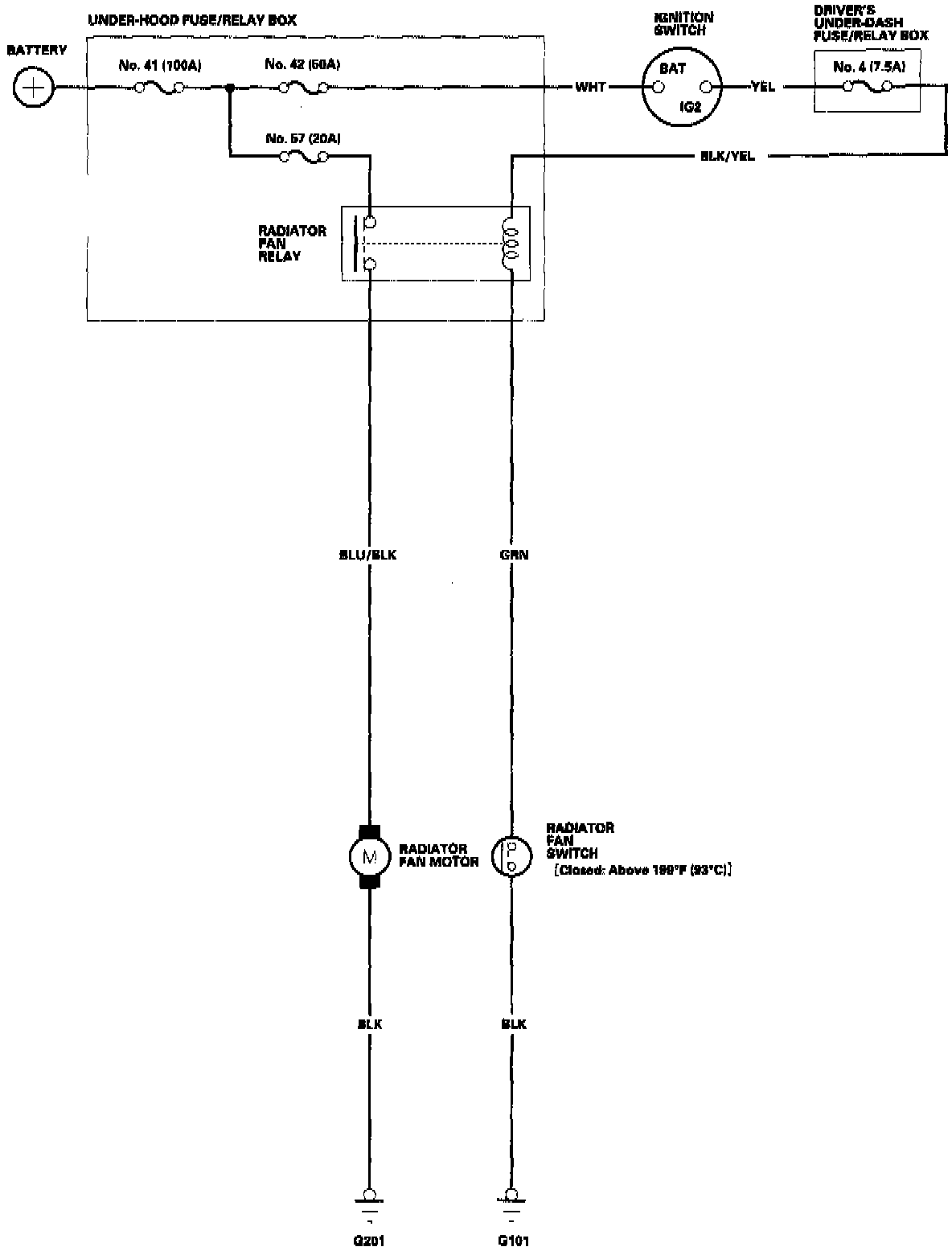

CIRCUIT DIAGRAM WITHOUT A/C
