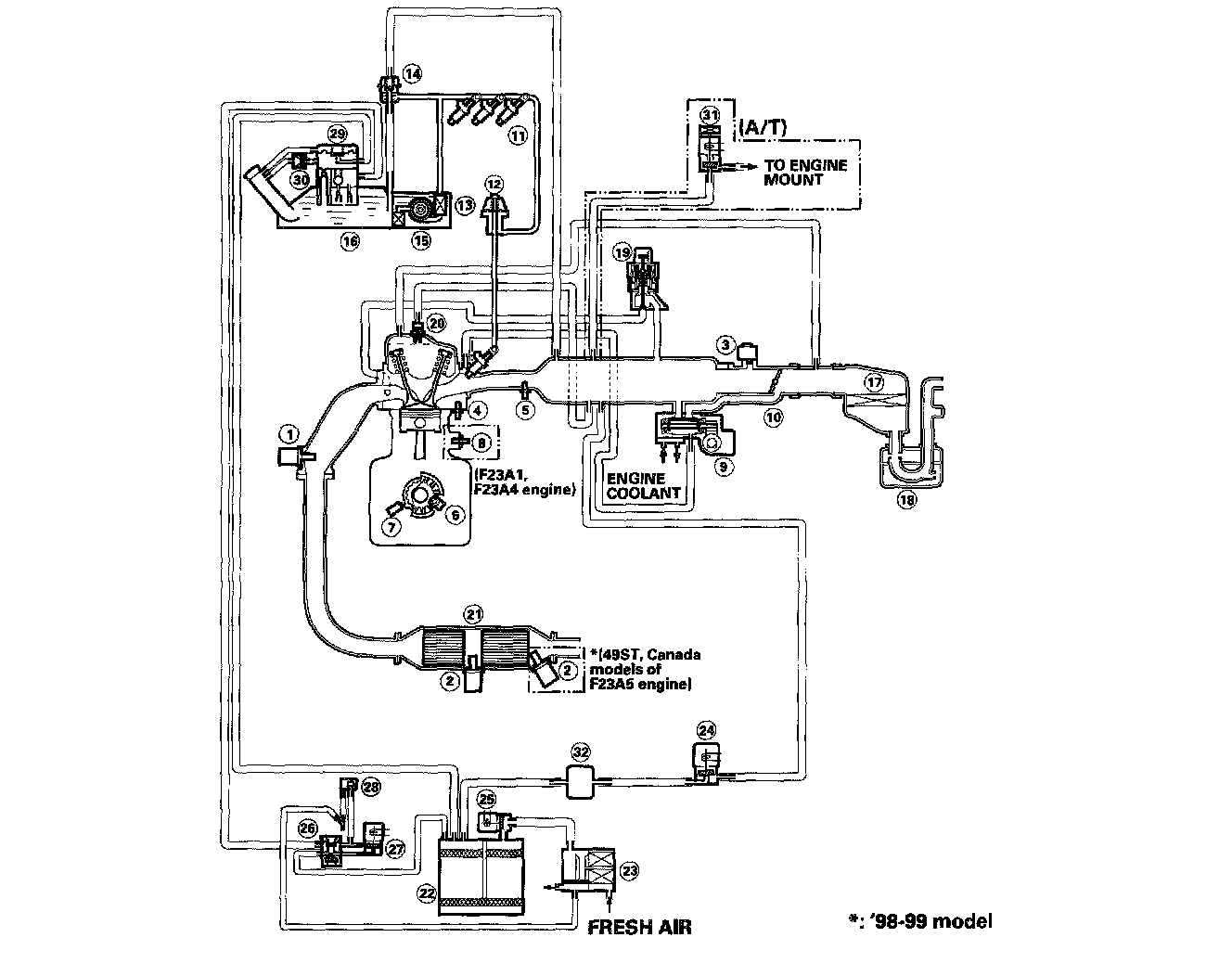

Vacuum Schematic

1. PRIMARY HEATED OXYGEN SENSOR PRIMARY (H02S) (SENSOR 1)
2. SECONDARY HEATED OXYGEN SENSOR SECONDARY (H02S) (SENSOR 2)
3. MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
4. ENGINE COOLANT TEMPERATURE (ECT) SENSOR
5. INTAKE AIR TEMPERATURE (IAT) SENSOR
6. CRANKSHAFT POSITION (CKP) SENSOR
7. TOP DEAD CENTER (TDC) SENSOR
8. KNOCK SENSOR (KS)
9. IDLE AIR CONTROL (IAC) VALVE
10. THROTTLE BODY (TB)
11. FUEL INJECTOR
12. FUEL PULSATION DAMPER
13. FUEL FILTER
14. FUEL PRESSURE REGULATOR
15. FUEL PUMP (FP)
16. FUEL TANK
17. AIR CLEANER
18. RESONATOR
19. EXHAUST GAS RECIRCULATION (EGR) VALVE and LIFT SENSOR
20. POSITIVE CRANKCASE VENTILATION (PCV) VALVE
21. THREE WAY CATALYTIC CONVERTER
22. EVAPORATIVE EMISSION (EVAP) CONTROL CANISTER
23. EVAPORATIVE EMISSION (EVAP) CONTROL CANISTER FILTER
24. EVAPORATIVE EMISSION (EVAP) PURGE CONTROL SOLENOID VALVE
25. EVAPORATIVE EMISSION (EVAP) CONTROL CANISTER VENT SHUT VALVE
26. EVAPORATIVE EMISSION (EVAP) TWO WAY VALVE
27. EVAPORATIVE EMISSION (EVAP) BYPASS SOLENOID VALVE
28. FUEL TANK PRESSURE SENSOR
29. ON BOARD REFUELING VAPOR RECOVERY (ORVR) VENT SHUT VALVE
30. ON BOARD REFUELING VAPOR RECOVERY (ORVR) VAPOR RECIRCULATION VALVE
31. ENGINE MOUNT CONTROL SOLENOID VALVE
32. PURGE JOINT
