Manual Mirror (Sedan)

1. Lower the door glass fully.

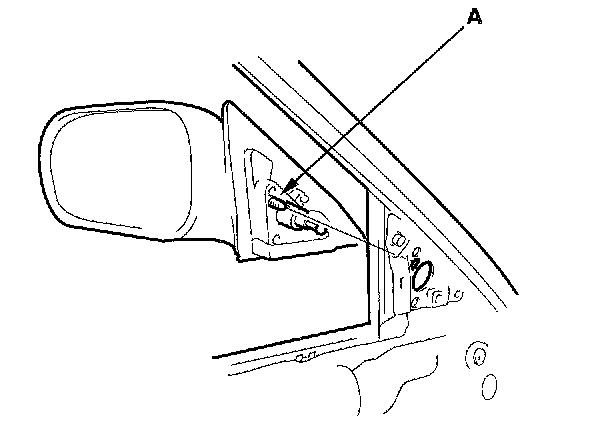

2. Carefully pry out the mirror mount cover (A) by hand in the sequence shown.




3. Remove the bolts securing the mirror.




4. While holding the mirror, push out the clip (A), and remove the mirror. Take care not to scratch the door.
5. Install in the reverse order of removal.
