Front Seat Torsion Bar Replacement

NOTE: Take care not to tear the seams or damage the seat covers.

1. Remove the front seat.

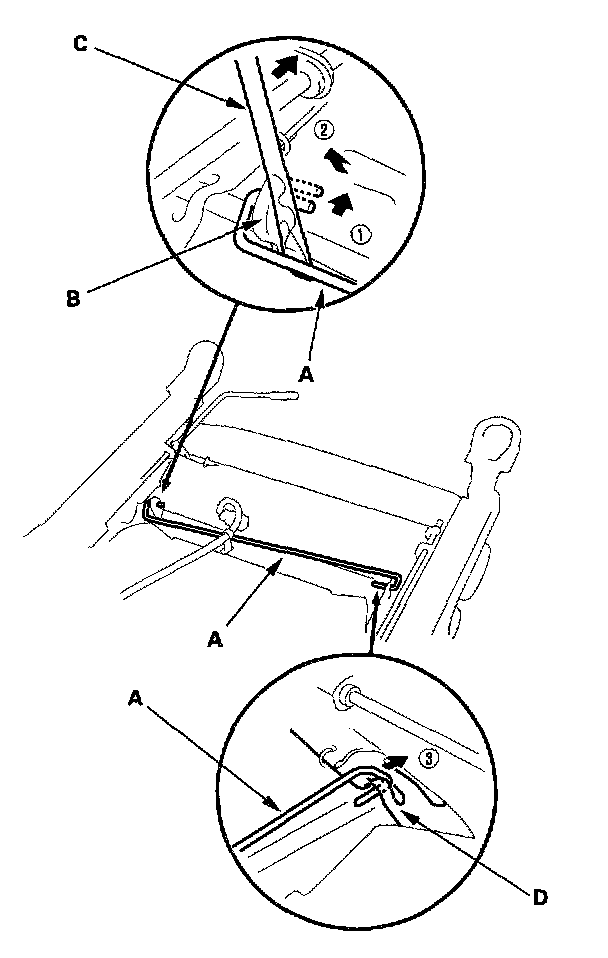

2. Put on gloves to protect your hands. Remove the torsion bar (A) from the hook (B) with a flat-tip screwdriver (C), then pull out the torsion bar from the seat cushion frame (D).
3. Install in the reverse order of removal.
