Front Seat Wiring Harness Installation

Manual Seat (Driver's Seat):

Manual Seat ('98-99 Models Passenger's Seat With Seat Heater):

Manual Seat ('00 Model Passenger's Seat With Side Airbag):

Manual Height Adjustable Seat:

Power Height Adjustable Seat:

8-Way Power Seat ('98-99 Models With Seat Heater):

8-Way Power Seat ('00 Models With Seat Heater):

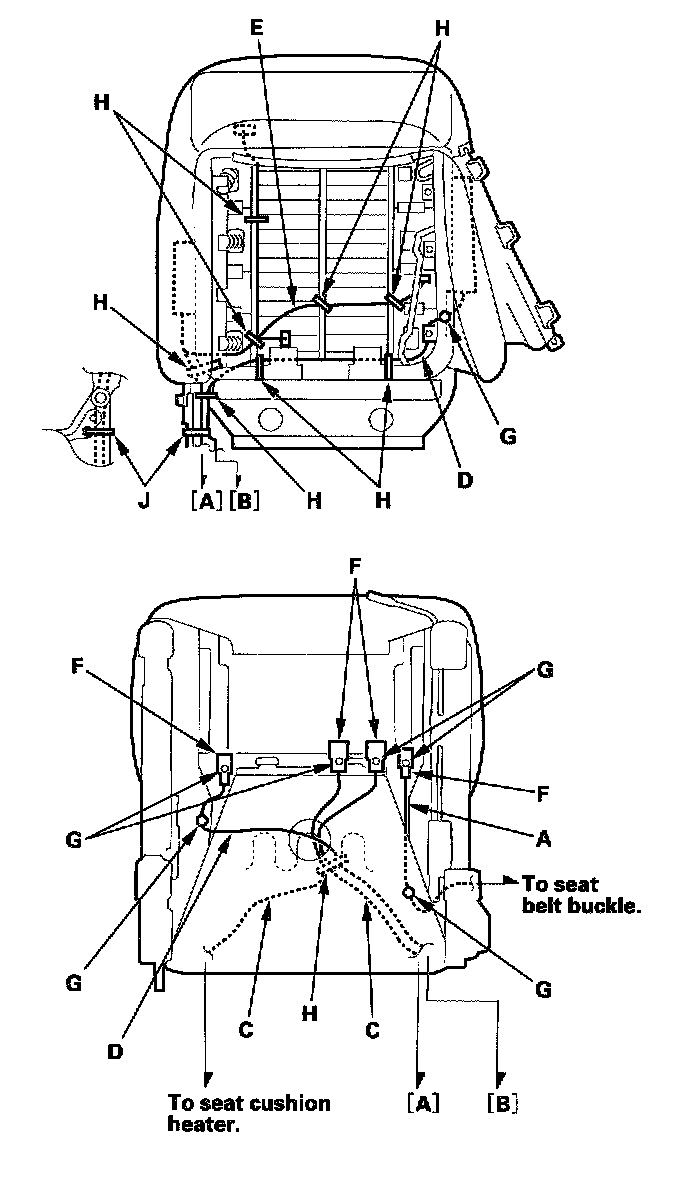

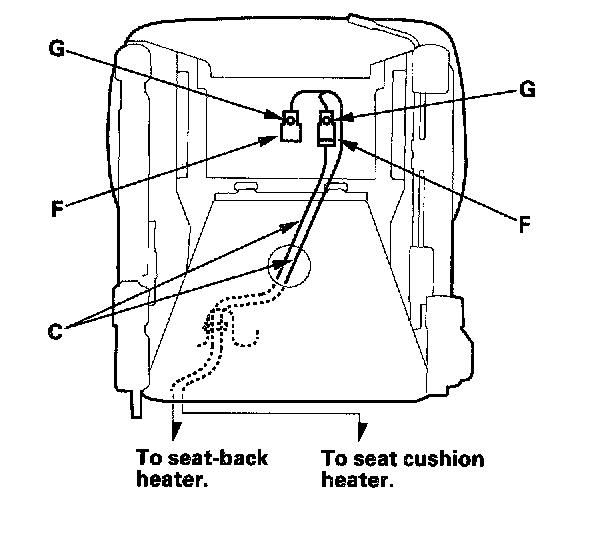

When assembling the front seat, make sure the seat belt switch harness (A), seat harness (B), seat heater harnesses (C), side airbag harness ('00 model) (D), OPDS unit harness ('00 model) (E), connectors (F), clips (G) and wire ties (H) are fastened correctly.
