Front Seat Wiring Harness and Cable Installation

Manual Seat ('98-99 Model Passenger's Seat With Seat Heater):

Manual Seat ('00 Model Passenger's Seat Without Side Airbag):

Manual Seat ('00 Model Passenger's Seat With Side Airbag):

Manual Height Adjustable Seat:

Power Height Adjustable Seat:

8-Way Power Seat ('98-99 Models With Seat Heater):

8-Way Power Seat ('00 Model With Seat Heater):

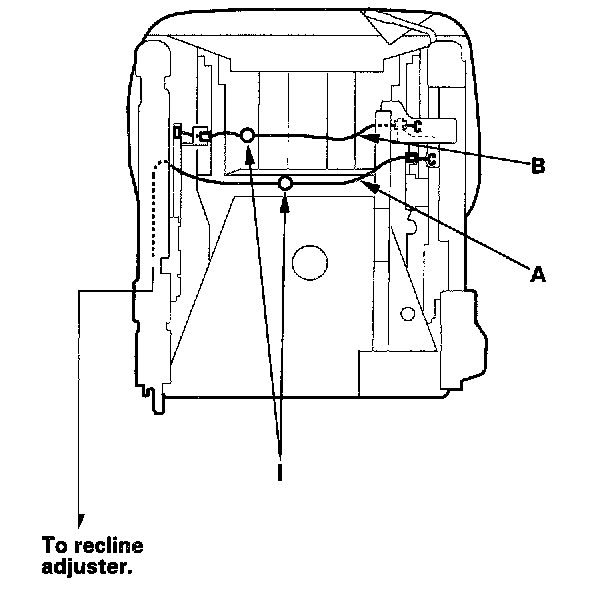

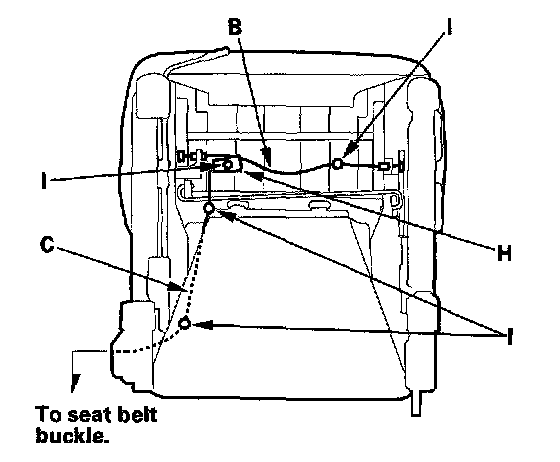

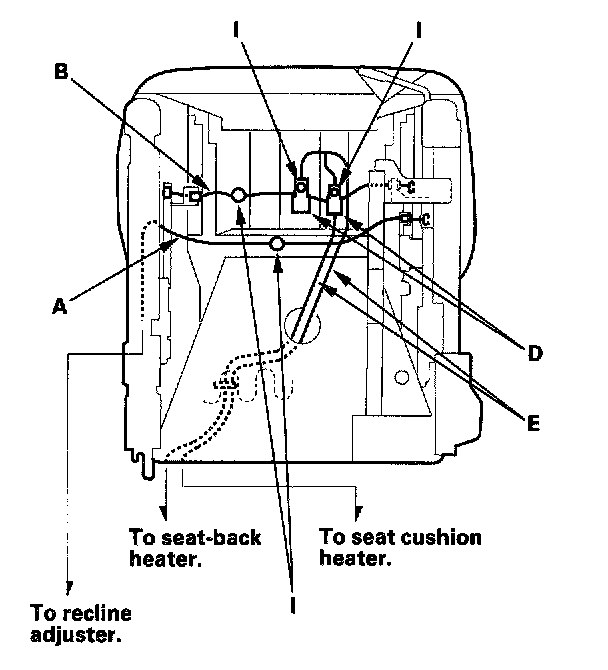

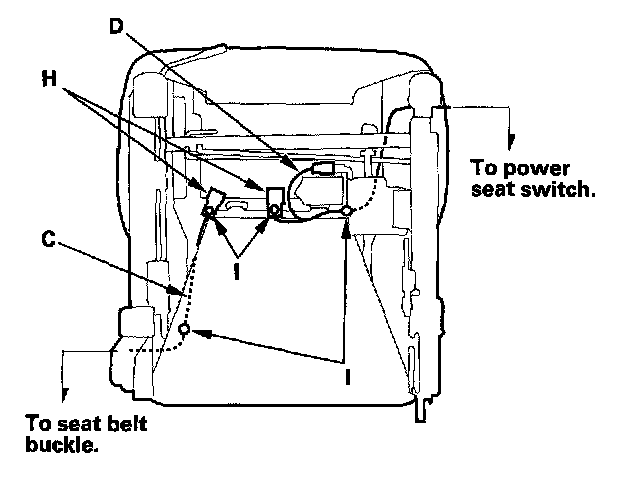

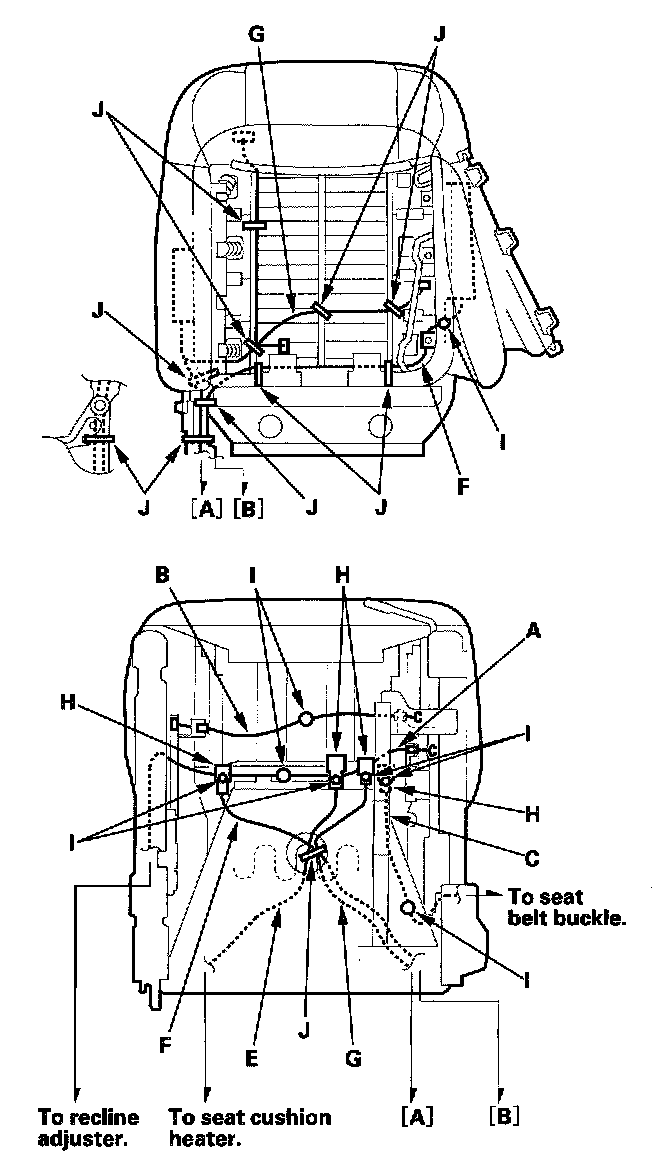

When assembling the front seat, make sure the recline cable (A), and connecting cable ('99 - 00 models) (B), seat belt switch harnesses (C), seat harness (D), seat heater harness (E), side airbag harness ('00 model) (F), OPDS unit harness ('00 model) (G), connectors (H), clips (I) and wire ties (J) are fastened correctly.
