Driver/Vehicle Information Display

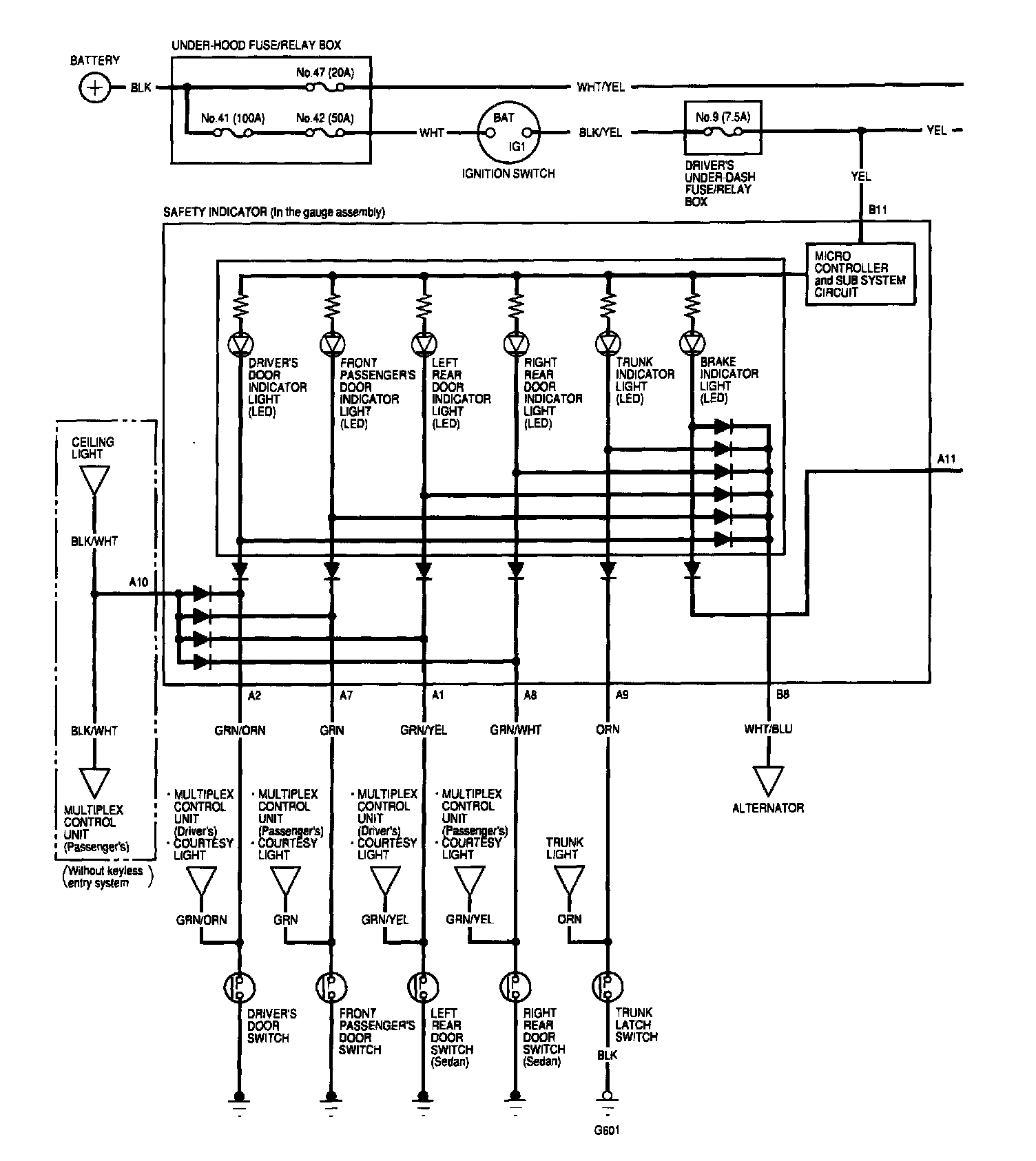

Safety Indicator System (Part 1 Of 2):



Safety Indicator System (Part 2 Of 2):
