System Diagram
System Diagram

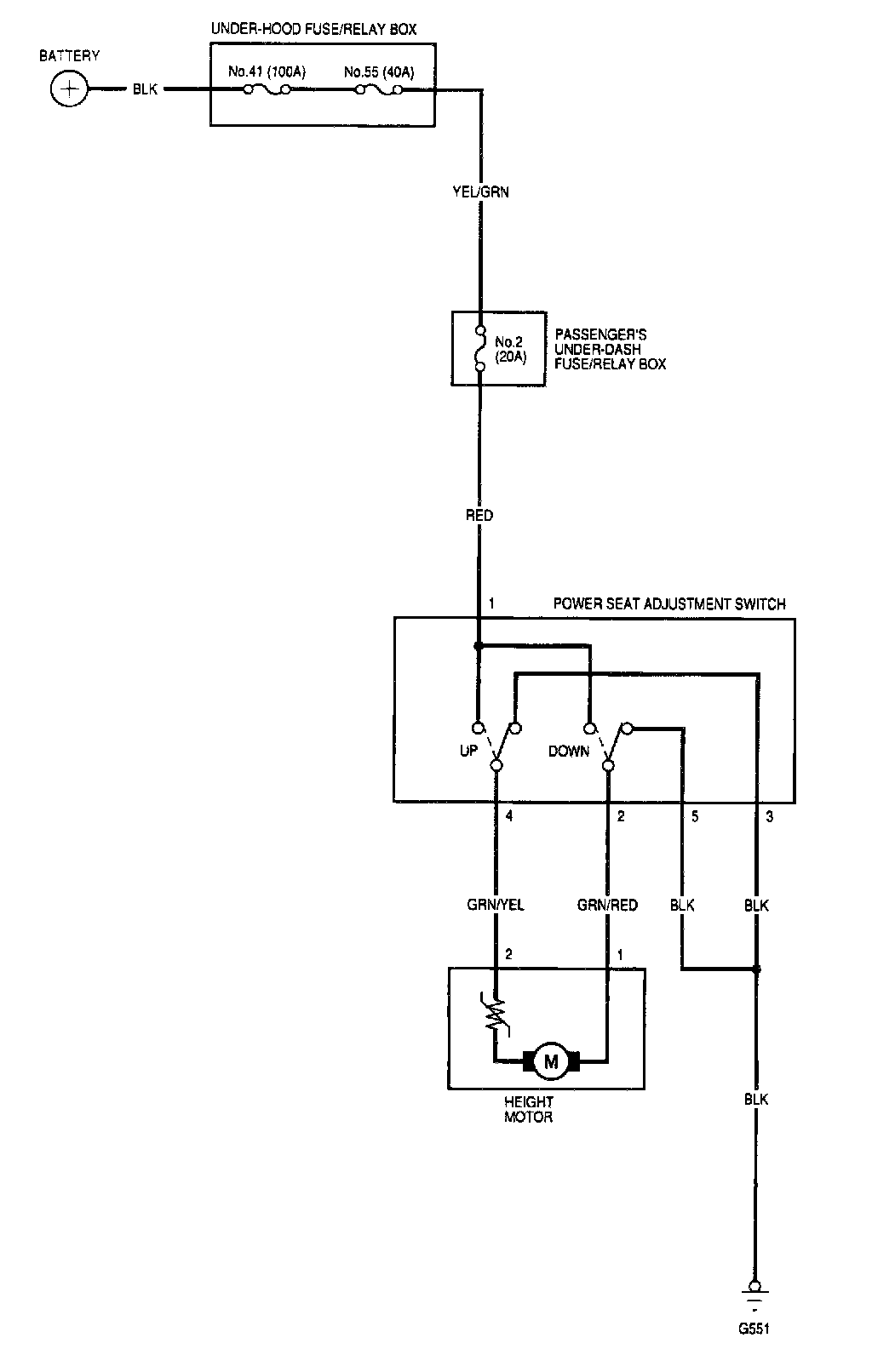

Power Seat Schematic (2-Way Adjustable):
Power Seat Schematic (8-Way Adjustable):
Power Seat Block Diagram (8-way Adjustable):
Power Seat Block Diagram (2-way Adjustable):
