Home >> Honda >> 1998 >> Accord EX Coupe V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Circuit Diagrams

Circuit Diagrams

Coupe (Part 1 Of 2):

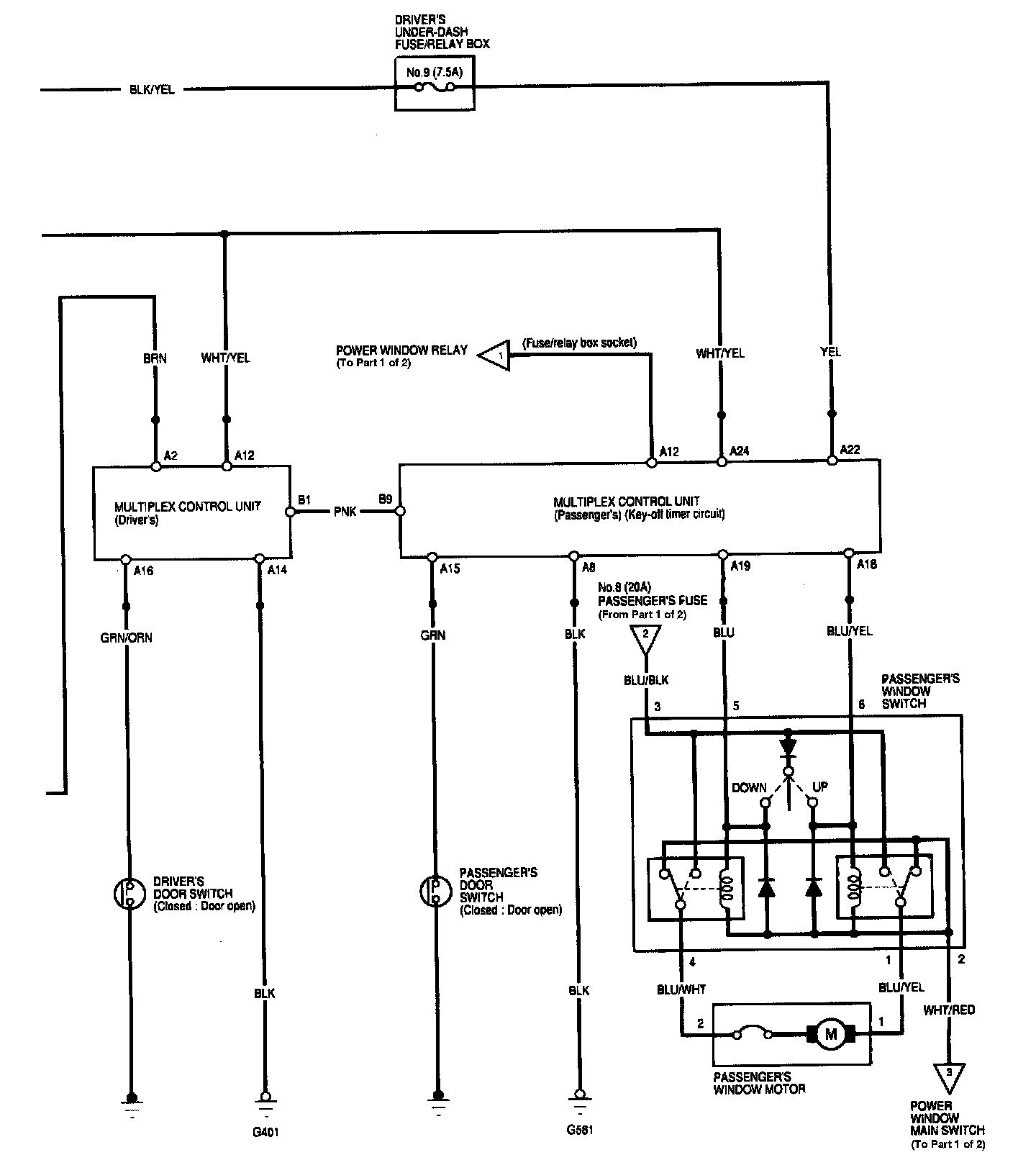

Coupe (Part 2 Of 2):
