Home >> Honda >> 1998 >> Accord EX Coupe V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Wiring Diagrams

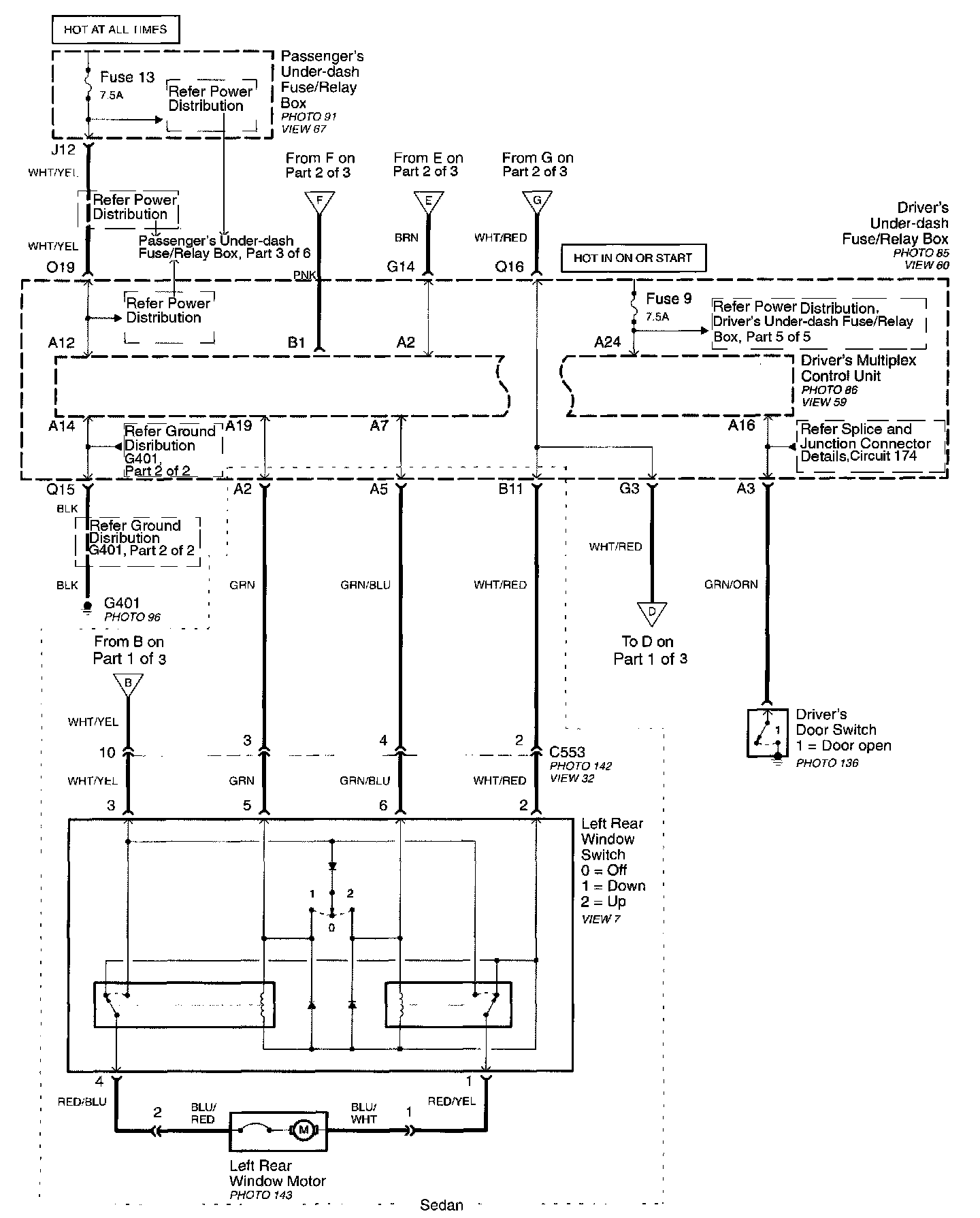

Wiring Diagrams

Part 1 Of 3:



Part 2 Of 3:



Part 3 Of 3:
